AVENTICS 102 Series Pneumatic Cylinder, Bore 32 mm, Stroke 150 mm
Manufacturer: Asco LP
Mfg Product Code: 821201024
Weight: 2.0 lb(s)
On Hand: 0

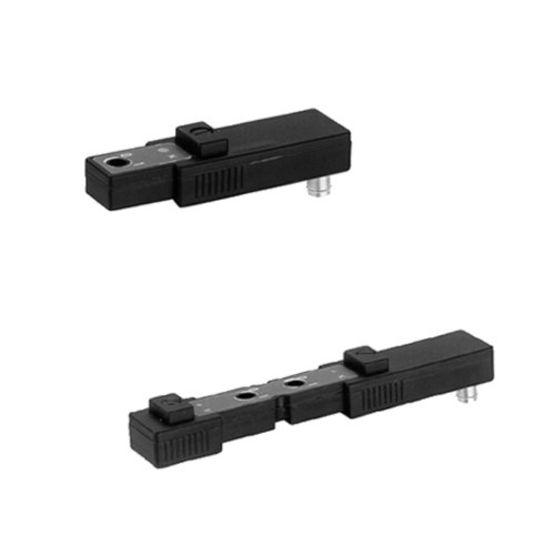

Contact Bridge, 2 Coils, 24 VDC, 3-Pin Plug to 2-Pin Plug to 2-Pin Sckt
The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Version: Snap Ø8
- Number of solenoid coils: 2
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 75 °C
- Wire cross-section: 0.14 mm²
- Protection class: IP65
- Electrical connection 1: Plug
- Number of poles: 3-pin
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection 2: Socket
- Electrical connection 2: form C
- Number of poles: 2-pin
- Cable exit: straight
- Electrical connection 3: Socket
- Electrical connection 3: form C
- Number of poles: 2-pin
- Cable exit: straight
- Operational↩voltage: 24 V
- Operational↩voltage: DC
- DC operating voltage: 24 V
- Voltage tolerance DC: -20% / +20%
- Valve LED status display: Yellow
- Mounting screw: M2.5 with slot
- Tightening torque for mounting screws +0,05: 0.25 Nm:
