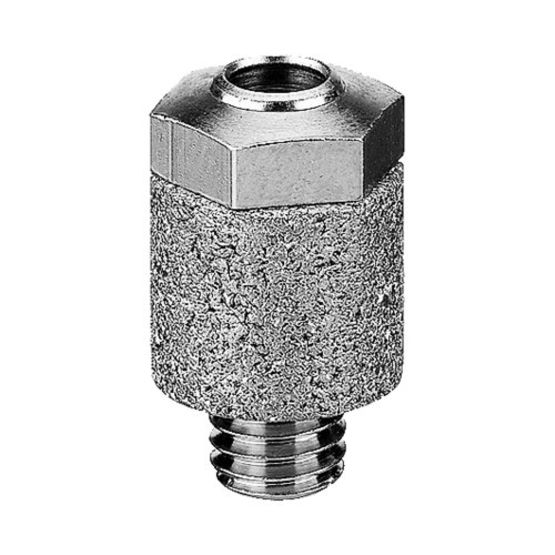

Representative photo. Please check item description for details.
AVENTICS CH02 Series Throttle Valve, G 1/2 External Thread, Screw-In Throttle
Manufacturer: Asco LP
Mfg Product Code: 821201003
Weight: 0.18 lb(s)
On Hand: 0
Throttle Valve, G 3/8 External Thread, Throttle Valve w/Silencer
Series CH throttle valves can be used for nominal flows up to 4,100 l/min. The Series features special versions with integrated silencer and screw-in variants.
Features
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 80 °C
- Min. medium temperature: -25 °C
- Max. medium temperature: 80 °C
- Port 1: G 3/8
- Type: Throttle valve with silencer
- Medium: Compressed air
- Compressed air connection type: External thread
- Flow Qn: 3100 l/min
- Tightening torque for silencer max.: 13 Nm
- Weight: 0.08 kg
- Housing material: Brass
- Seal material: Acrylonitrile butadiene rubber
- Silencer material: Stainless Steel:
AVENTICS CH02 Series Throttle Valve, G 1/2 External Thread, Screw-In Throttle
Throttle Valve, G 3/8 External Thread, Throttle Valve w/Silencer
