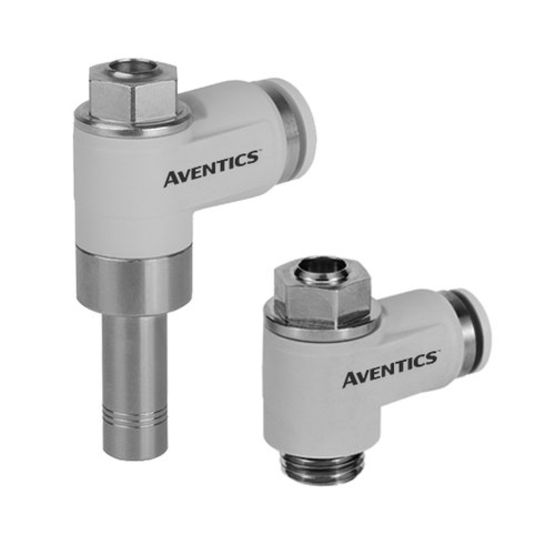

AVENTICS CC04 Series Check-Choke Valve, G 1/4 External Thread → Ø 6 Push-In Fitting, Polyamide

Manufacturer: Asco LP

Mfg Product Code: 821200196

Weight: 2.0 lb(s)

Check-Choke Valve, G 1/4 External Thread → Ø 6 Push-In Fitting, Polyamide

The AVENTICS Series CC check-choke valves are designed for nominal flows from 70 to 1950 l/min. The different versions are available with a push-in fitting or internal thread.

Features

• Port 1: Ø 6
• Port 2: G 1/4
• Throttle bore Ø: 4.5 mm
• direction of throttle: 2 ▶ 1
• Nominal flow Qn 2 to 1: 540 l/min
• Compressed air connection type 1: push-in fitting
• Compressed air connection type 2: External thread
• Throttle: Exhaust Air Throttling
• Medium: Compressed air
• Working pressure min.: 0.5 bar
• Working pressure max: 10 bar
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 70 °C
• Min. medium temperature: -10 °C
• Max. medium temperature: 70 °C
• Housing material: Polyamide
• Material flow control screw: Brass
• Seal material: Acrylonitrile butadiene rubber:
