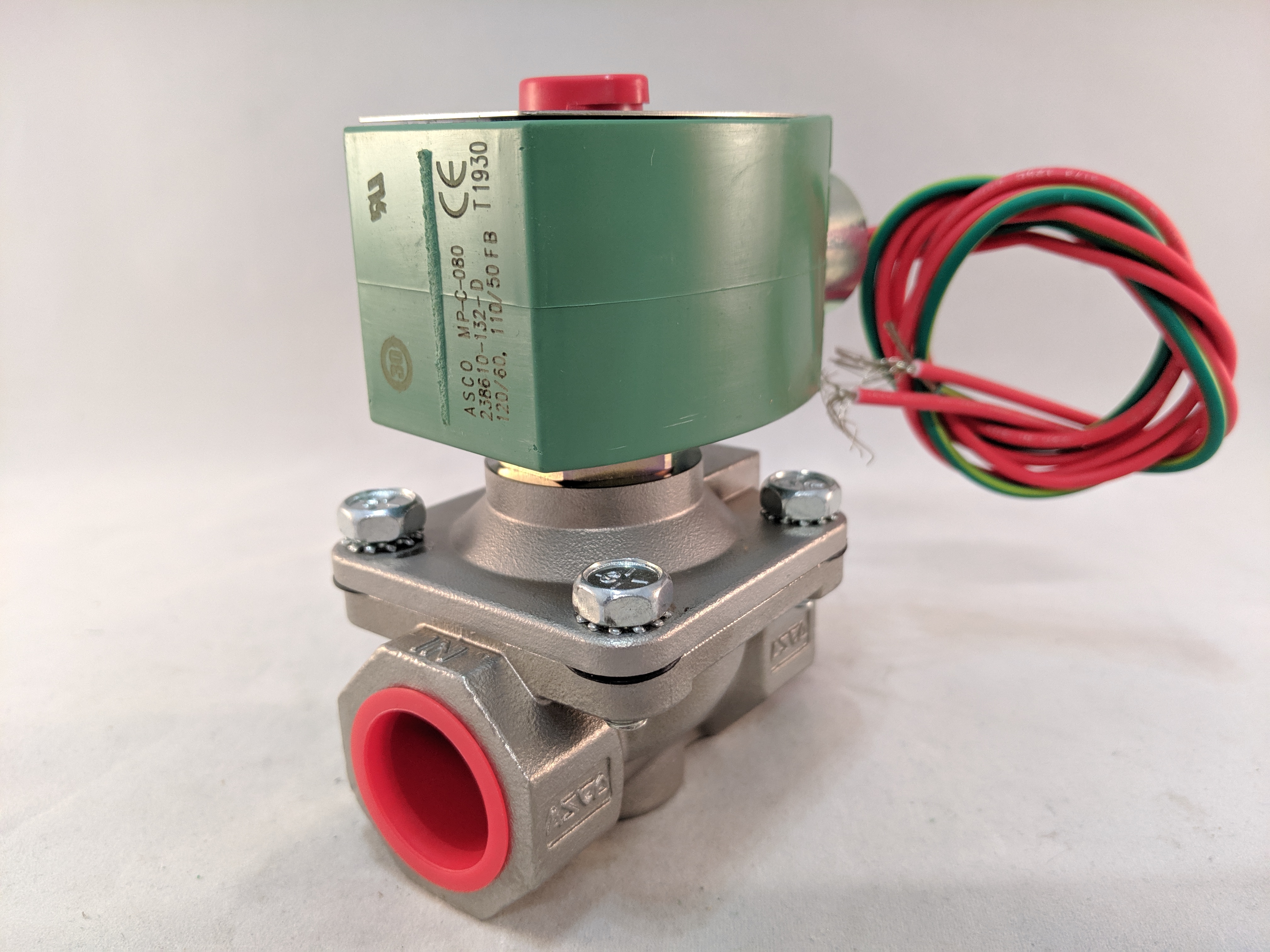

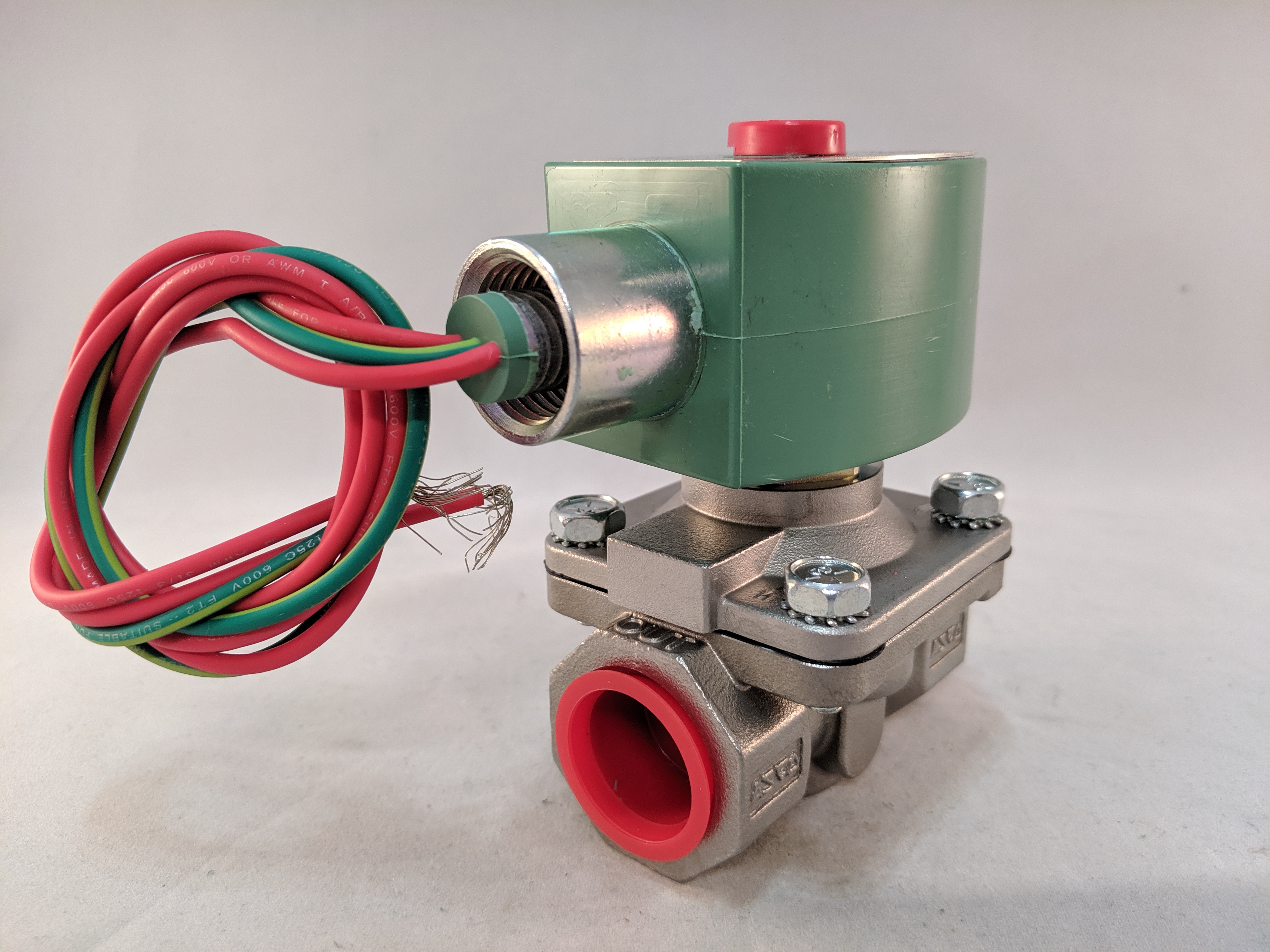

210 Series Solenoid Valve (8210), 3/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8210G088AC120/60,110/50D
Weight: 2.49 lb(s)
On Hand: 4
Solenoid Valve, 3/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 5.00 / 4.32
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 2.49 lbs
- Order Code: 20210
- Kit Number: 302328
- Coil Class: FB
- Coil Number: 238610-132-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Orifice Size: 5/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 17.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/4 X 5/8 2NC S.S. 17.1/F AC
- Holding Current (VA): 40
- Seating Elastomer: NBR
- Mounting Direction: Any:
