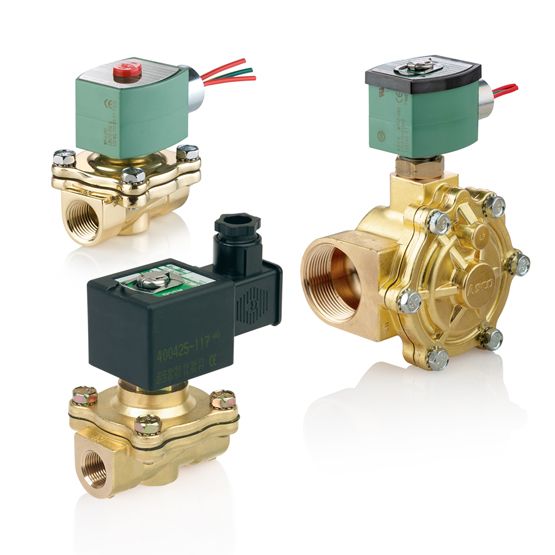

210 Series Solenoid Valve (8210), 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8210G002LFAC240/60D
Weight: 4.4 lb(s)
Solenoid Valve, 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 4.00 / 3.46
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid
- Product Weight: 4.19 lbs
- Kit Number: 326064
- Coil Class: FT
- Coil Number: 238210-058-D
- Orifice Size: 5/8 in
- Voltage & Frequency: 240 Volts AC with 60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 5/8 2NC BRASS 6.1/F AC
- Watt Rating: 6.1 W
- Coil Class: FT
- Coil Number: 238210-058-D
- Kit Number: 326064
- Product Weight: 4.19 lb:
210 Series Solenoid Valve (8210), 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC
Solenoid Valve, 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC
Valve: Actuation:Solenoid
Brand_Name:Asco
Flow (Cv / Kv):4.00 / 3.46
Process Connection Type:NPT
Flow Coefficient:4.00 Cv
Process Connection Size:1/2"
Input Voltage:240 VAC
Watts:6.1
Function:2 Way 2/2 Normally Closed
Coil Class:FT
Frequency:60 Hz
Body Material:Brass
Lead Length:18 in
NEMA / UL:NEMA 1/2/3/3S/4/4X
Seal Material:NBR
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Flow (Cv / Kv) | 4.00 / 3.46 |
| Process Connection Type | NPT |
| Flow Coefficient | 4.00 Cv |
| Process Connection Size | 1/2" |
| Input Voltage | 240 VAC |
| Watts | 6.1 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | Brass |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
