AVENTICS AP Series Directional Poppet Valve, Push Button, G 1/4 Internal Thread, Aluminum, 3/2 Directional

Manufacturer: Asco LP

Mfg Product Code: 820400004

Weight: 0.08 lb(s)

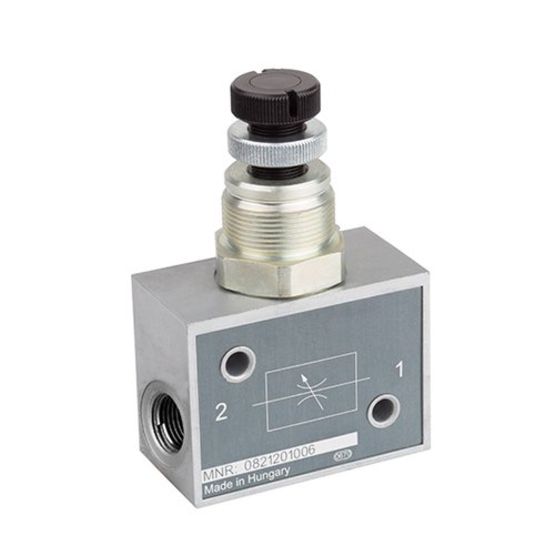

Throttle Valve, 2 mm Bore Diam, G 1/8 Internal Thread Pilot, Aluminum

Series CH throttle valves can be used for nominal flows up to 2,800 l/min. The Series features special versions with integrated silencer and screw-in variants.

Features

• Working pressure min.: 0 bar
• Working pressure max: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 80 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 80 °C
• Port 1: G 1/8
• Port 2: G 1/8
• Medium: Compressed air
• Compressed air connection type 2: Internal thread
• Compressed air connection type: Internal thread
• Throttle bore Ø: 2 mm
• Flow Qn: 140 l/min
• Weight: 0.035 kg
• Housing material: Aluminum
• Seal material: Acrylonitrile butadiene rubber
• Material flow control screw: Steel:
