Representative photo. Please check item description for details.
AVENTICS AP Series Directional Poppet Valve, Roller Lever, One-Way Trip, G 1/4 Internal Thread, Aluminum, 3/2 Directional
Manufacturer: Asco LP
Mfg Product Code: 820400003
Weight: 0.08 lb(s)
On Hand: 0

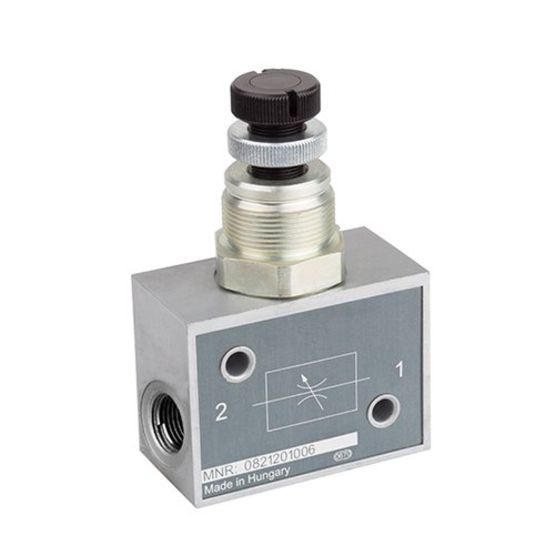

Throttle Valve, 1 mm Bore Diam, G 1/8 Internal Thread Pilot, Aluminum
Series CH throttle valves can be used for nominal flows up to 2,800 l/min. The Series features special versions with integrated silencer and screw-in variants.
Features
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 80 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 80 °C
- Port 1: G 1/8
- Port 2: G 1/8
- Medium: Compressed air
- Compressed air connection type 2: Internal thread
- Compressed air connection type: Internal thread
- Throttle bore Ø: 1 mm
- Flow Qn: 38 l/min
- Weight: 0.035 kg
- Housing material: Aluminum
- Seal material: Acrylonitrile butadiene rubber
- Material flow control screw: Steel:
