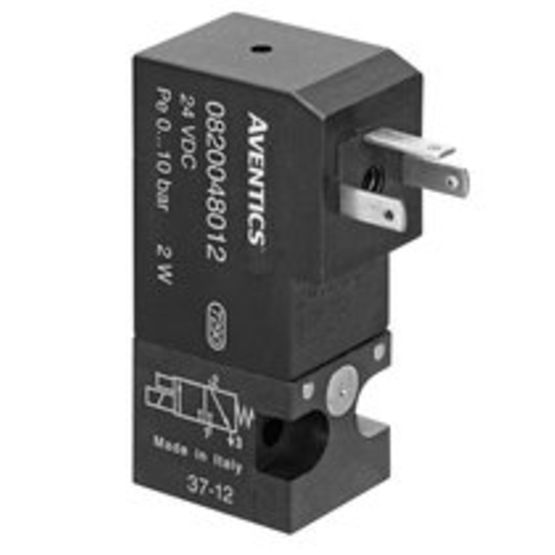

AVENTICS DO16 Series 3/2 Directional Poppet Valve NO, 24 VDC, ISO 15217, Form C Plug, Manual Override w/o Detent

Manufacturer: Asco LP

Mfg Product Code: 820048002

Weight: 2.0 lb(s)

3/2 Dir Poppet Valve NC, 24 VDC, ISO 15217, Form C Plug, Man O/R w/o Detent

Features

• Activation: Electrically
• Switching principle: 3/2, with spring return
• Function: NC
• Working pressure min.: 0 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +15%
• Manual override: without detent
• Electrical connection type: Plug
• Electrical connection size: ISO 15217, form C
• Valve type: Poppet valve
• Sealing principle: Soft Seal
• Connection type: Plate connection
• Min. ambient temperature: -10 °C
• Min. medium temperature: 50 °C, -10 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Nominal flow Qn 1 to 2: 25 l/min
• Nominal flow Qn 2 to 3: 36 l/min
• Power consumption DC: 2 W
• Duty cycle: 100 %
• Protection class acc. to DIN EN 61140: Class I
• Protection class with connection: IP65:
