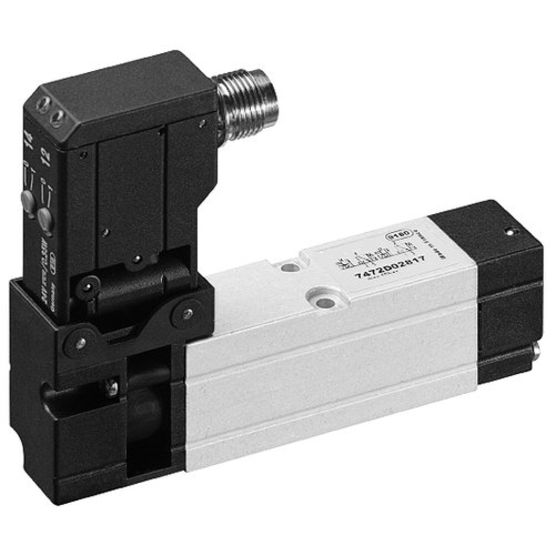

AVENTICS CD02-AL Series Std Valve System (ISO 15407-1), External Pilot, 24 VDC, Manual Override w/o Detent, 5/2 - Directional

Manufacturer: Asco LP

Mfg Product Code: 820038157

Weight: 2.0 lb(s)

Std Valve System (ISO 15407-1), Int Pilot, 2 to 10 bar, Man O/R w/o Detent, 5/2 - Directional

The AVENTICS Series CD02-AL complies with ISO 15407-1. The piloted controlled valves with a flow rate of up to 650 l/min consist of a robust aluminium body and are available with an individual connection plate as well as a valve system.

Features

• Nominal flow Qn: 450 l/min
• Switching principle: 5/2
• Compressed air connection output: VDMA 02 base plate
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• Operational voltage AC at 50 Hz: 230 V
• Operational voltage AC at 60 Hz: 230 V
• Voltage tolerance AC 50 Hz: -10% / +10%
• Voltage tolerance AC 60 Hz: -10% / +10%
• Manual override: without detent
• Electrical connection type: Plug
• Electrical connection size: ISO 15217, form C
• Actuating control: Single Solenoid
• Sealing principle: Soft Seal
• Pilot: Internal
• Standards: ISO 15407-1
• Pilot valve width: 15 mm
• Valve type: Spool valve, positive overlapping
• Blocking principle: Base plate principle, multiple
• Connection type: Plate connection
• Return: with spring/air spring return
• Compressed air connection input: VDMA 02 base plate
• Compressed air connection, exhaust: VDMA 02 base plate
• Compressed air connection pilot exhaust: VDMA 02 base plate
• Holding power AC 50 Hz: 1.6 VA:
