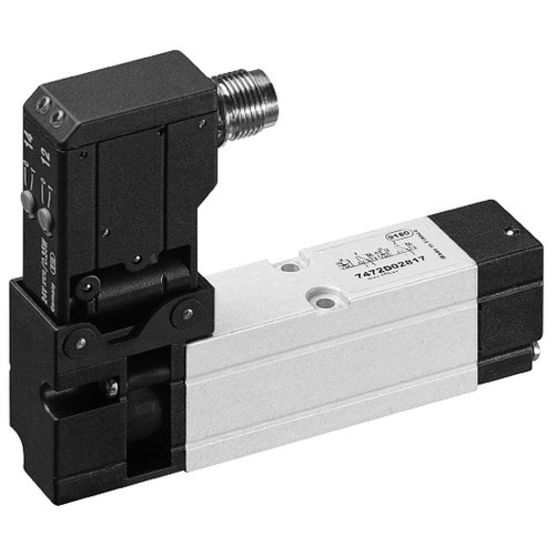

AVENTICS CD02-AL Series Std Valve System (ISO 15407-1), Internal Pilot, Manual Override w/o Detent, 5/2 - Directional

Manufacturer: Asco LP

Mfg Product Code: 820038154

Weight: 2.0 lb(s)

Std Valve System (ISO 15407-1), Int Pilot, 2.2 to 10 bar, 2 Way - 3/2 NC/NC

The AVENTICS Series CD02-AL complies with ISO 15407-1. The piloted controlled valves with a flow rate of up to 650 l/min consist of a robust aluminium body and are available with an individual connection plate as well as a valve system.

Features

• Nominal flow Qn: 450 l/min
• Switching principle: 2x3/2
• Version: NC/NC
• Compressed air connection output: VDMA 02 base plate
• Working pressure min.: 2.2 bar
• Working pressure max: 10 bar
• Electrical connection: 2
• Electrical connection type: Plug
• Electrical connection size: ISO 15217, form C
• Sealing principle: Soft Seal
• Pilot: Internal
• Standards: ISO 15407-1
• Pilot valve width: 15 mm
• Valve type: Spool valve, positive overlapping
• Blocking principle: Base plate principle, multiple
• Connection type: Plate connection
• Compressed air connection input: VDMA 02 base plate
• Compressed air connection, exhaust: VDMA 02 base plate
• Compressed air connection pilot exhaust: VDMA 02 base plate
• basic valve with electrical connector: Basic valve without pilot valve
• Frame size: 18 mm
• Control pressure min.: 2.2 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C:
