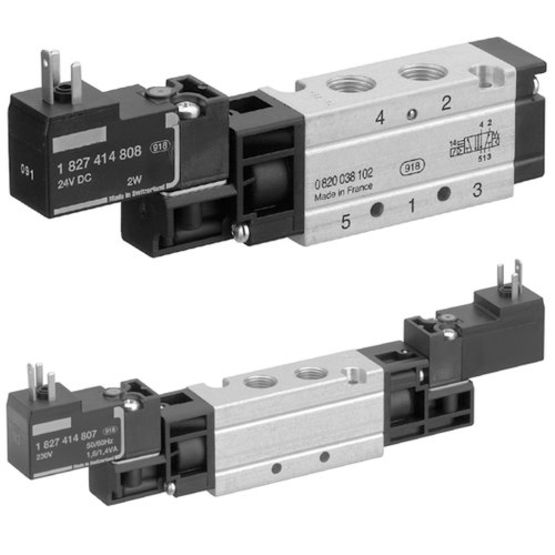

AVENTICS WV02 Series Directional Valve, 24 VAC, G 1/8 Pipe, Man. Override w/o Detent, 5/2

Manufacturer: Asco LP

Mfg Product Code: 820038103

Weight: 2.0 lb(s)

Directional Valve, 24 VAC, G 1/8 Pipe, Man. Override w/o Detent, 5/2

The AVENTICS Series WV02 spool valves with anodized aluminium housing feature short switching times and low switching pressures, while offering low power consumption due to a seal with low friction co-efficient.

Features

• Activation: Electrically
• Nominal flow Qn: 500 l/min
• Switching principle: 5/2
• Compressed air connection output: G 1/8
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: without detent
• Electrical connection type: Plug
• Electrical connection size: ISO 15217, form C
• Sealing principle: Soft Seal
• Pilot: Internal
• Pilot valve width: 15 mm
• Valve type: Spool valve, positive overlapping
• Connection type: Pipe connection
• Return: with spring/air spring return
• Control pressure min.: 2 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air
• Max. particle size: 5 µm:
