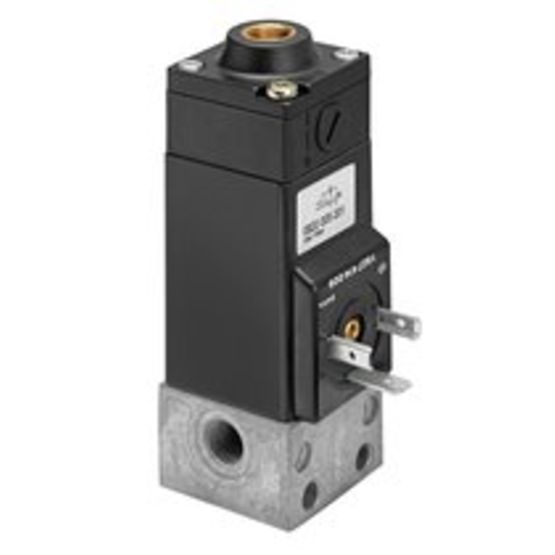

AVENTICS DO35 Series 3/2 Directional Poppet Valve NO, 24 VDC, EN 175301 Plug, Manual Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: 820005101

Weight: 2.0 lb(s)

3/2 Dir Poppet Valve NO, 24 VDC, EN 175301 Plug, Man O/R w/Detent

Features

• Activation: Electrically
• Switching principle: 3/2, with spring return
• Function: NC
• Compressed air connection output: G 1/8
• Compressed air connection input: G 1/8
• Compressed air connection, exhaust: G 1/8
• Working pressure min.: 0 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: with detent
• Electrical connection type: Plug
• Electrical connection size: EN 175301-803, form A
• Valve type: Poppet valve
• Sealing principle: Soft Seal
• Connection type: Pipe connection
• Min. ambient temperature: -10 °C
• Min. medium temperature: 50 °C, -10 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Nominal flow Qn 1 to 2: 140 l/min
• Nominal flow Qn 2 to 3: 130 l/min
• Power consumption DC: 8 W:
