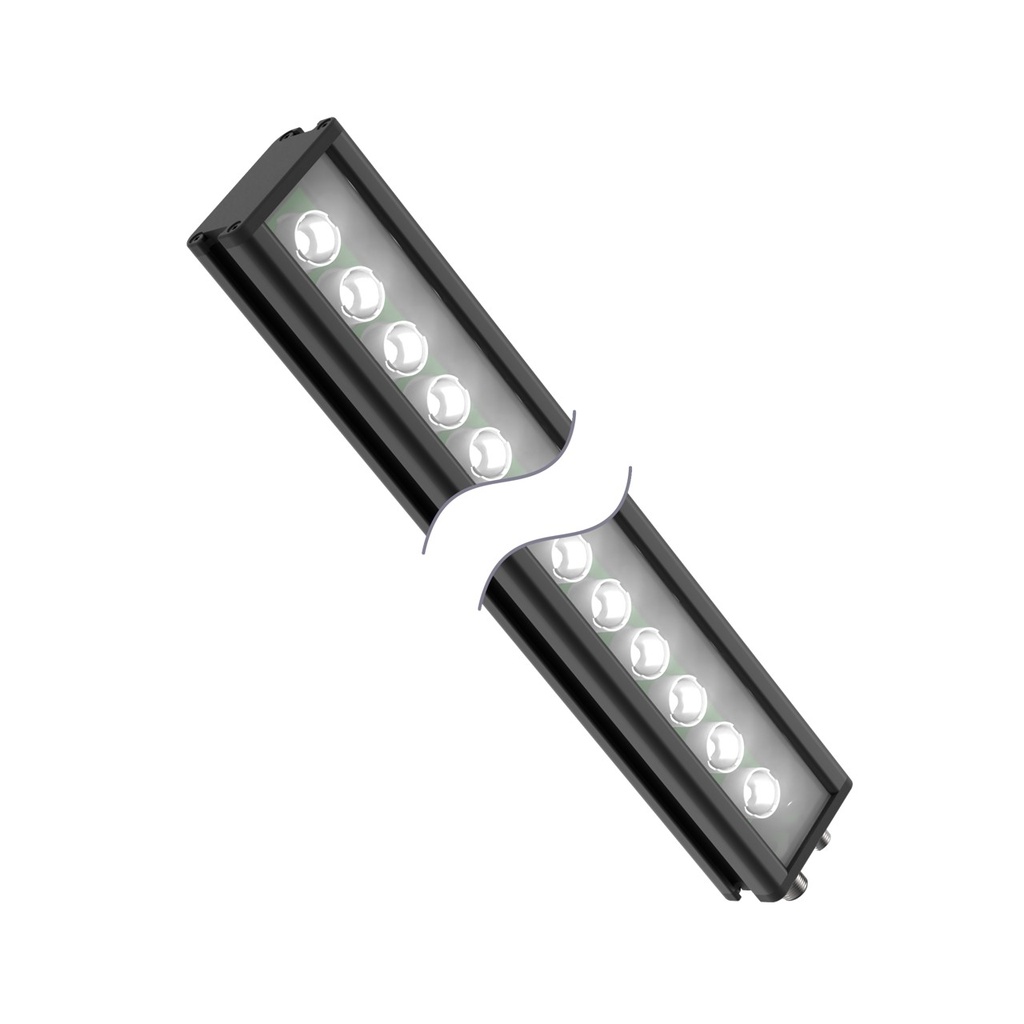

LINEAR ARRAY WHITE ACRYLIC 1FT DIMMABLE ACT.HIGH (LEDWLA290XP6-PHQ)
LINEAR ARRAY WHITE ACRYLIC 1FT DIMMABLE ACT.HIGH
Brand_Name:Banner
Manufacturer Product Family:VISION LIGHTS OTHER
Power:DC
Measurement Maximum:0
Max Current Color:1000 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Linear Strip
Device Type:Bar Light
Housing Material_:Anodized Aluminum
Physical Dimensions:332.6 x 59.4 x 32.6 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Number of Input Pins/Conductors:5
Color:White
QD Type/Cable Length:M12; requires mating cordset
Lens Focusing Angle/Field of View:6.5°
Intensity Adjustment:Potentiometer and Analog
Connection Type:Integral QD, Integral QD
Country of Origin:US
Lens Focusing Angle (°)/Field of View:6.5°
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | VISION LIGHTS OTHER |
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 1000 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Linear Strip |
| Device Type | Bar Light |
| Housing Material_ | Anodized Aluminum |
| Physical Dimensions | 332.6 x 59.4 x 32.6 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Number of Input Pins/Conductors | 5 |
| Color | White |
| QD Type/Cable Length | M12; requires mating cordset |
| Lens Focusing Angle/Field of View | 6.5° |
| Intensity Adjustment | Potentiometer and Analog |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
| Lens Focusing Angle (°)/Field of View | 6.5° |
