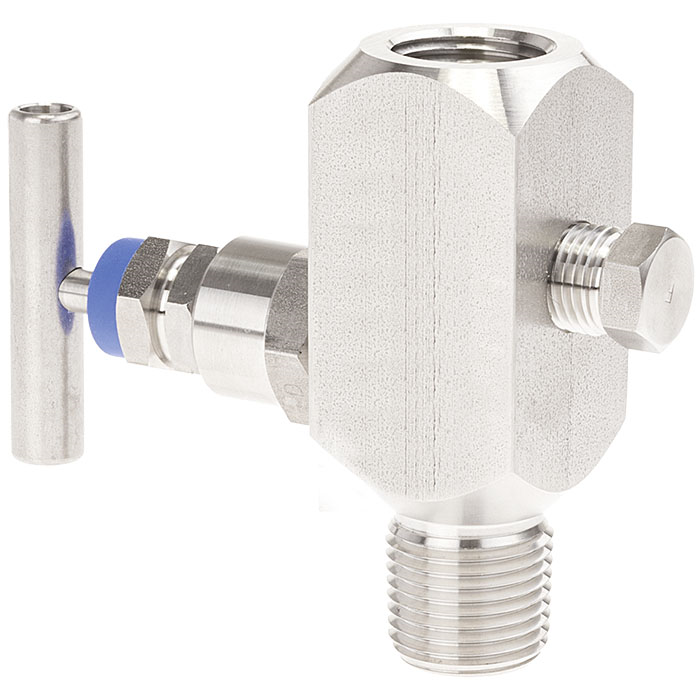

Representative photo. Please check item description for details.
Wika IV202 Series IV202 Series Standard In-Line Valve, 316/316L SS, 3/4" NPTF to 3/4" NPTF, 10000 psi
Manufacturer: Wika Instrument Lp
Mfg Product Code: 81646492
Weight: 1.0 lb(s)
On Hand: 0
IV202 3/4 NPT F - 1/2 NPT F 316/316L VENT 1/4NPT F PTFE 10k
Applications of the needle valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the needle valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IV202 3/4 NPT F - 1/2 NPT F 316/316L VENT 1/4NPT F PTFE 10k
- Block and bleed valve, 2-valve manifold
- Design: square, in-line
- 3/4 NPT female - 1/2 NPT female
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- without bracket hole
- Vent connection: 1/4" NPT female with plug
- Nominal pressure: 10000 psi / 689 bar
- Material packing: PTFE
- NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
Wika IV202 Series IV202 Series Standard In-Line Valve, 316/316L SS, 3/4" NPTF to 3/4" NPTF, 10000 psi
IV202 3/4 NPT F - 1/2 NPT F 316/316L VENT 1/4NPT F PTFE 10k
Measurement Maximum:0
Process Connection Type:NPT-Female
Instrument Connection Size:3/4"
Instrument Connection Type:NPT-Female
Pressure Rating:10000 psi
Measurement Minimum:0
Packings:PTFE
Body Material:316/316L SS
Valve Position:In-Line
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT-Female |
| Instrument Connection Size | 3/4" |
| Instrument Connection Type | NPT-Female |
| Pressure Rating | 10000 psi |
| Measurement Minimum | 0 |
| Packings | PTFE |
| Body Material | 316/316L SS |
| Valve Position | In-Line |
