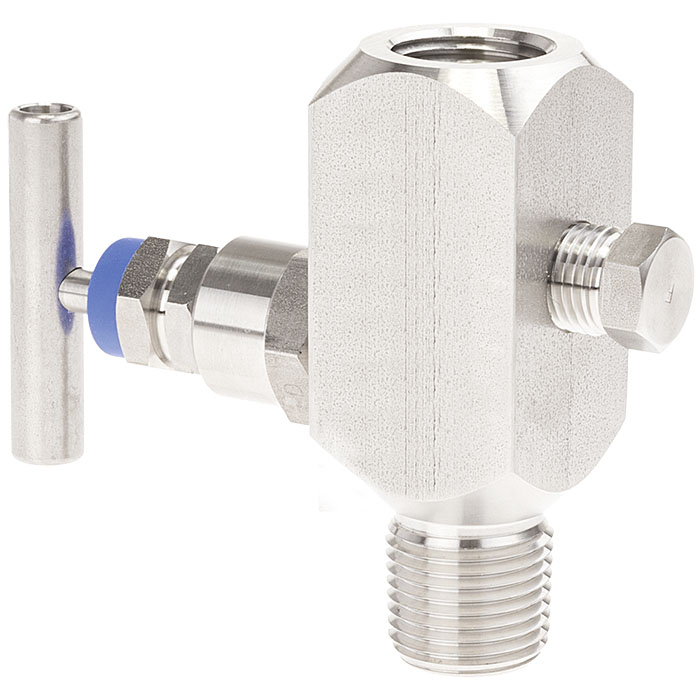

Representative photo. Please check item description for details.
Wika IV313 Series IV313 Series Standard C-2-C, Side-by-Side, Panel-Mount Valve Manifold, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 6000 psi
Manufacturer: Wika Instrument Lp
Mfg Product Code: 81640958
Weight: 1.0 lb(s)
On Hand: 0
IV313 1/2 NPT F - 1/2 NPT F 316/316L PTFE 6k
Applications of the needle valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the needle valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IV313 1/2 NPT F - 1/2 NPT F 316/316L PTFE 6k
- 3-Valve Manifold
- Center distance gauge side: 54mm
- side-by-side
- 1/2 NPT female - 1/2 NPT female
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- with bracket holes
- Nominal pressure: 6000 psi / 420 bar
- Material packing: PTFE
- NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
Wika IV313 Series IV313 Series Standard C-2-C, Side-by-Side, Panel-Mount Valve Manifold, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 6000 psi
IV313 1/2 NPT F - 1/2 NPT F 316/316L PTFE 6k
Measurement Maximum:0
Process Connection Type:NPT-Female
Instrument Connection Size:1/2"
Instrument Connection Type:NPT-Female
Pressure Rating:6000 psi
Measurement Minimum:0
Packings:PTFE
Body Material:316/316L SS
Valve Position:Side-by-Side, Panel Mount
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT-Female |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT-Female |
| Pressure Rating | 6000 psi |
| Measurement Minimum | 0 |
| Packings | PTFE |
| Body Material | 316/316L SS |
| Valve Position | Side-by-Side, Panel Mount |
