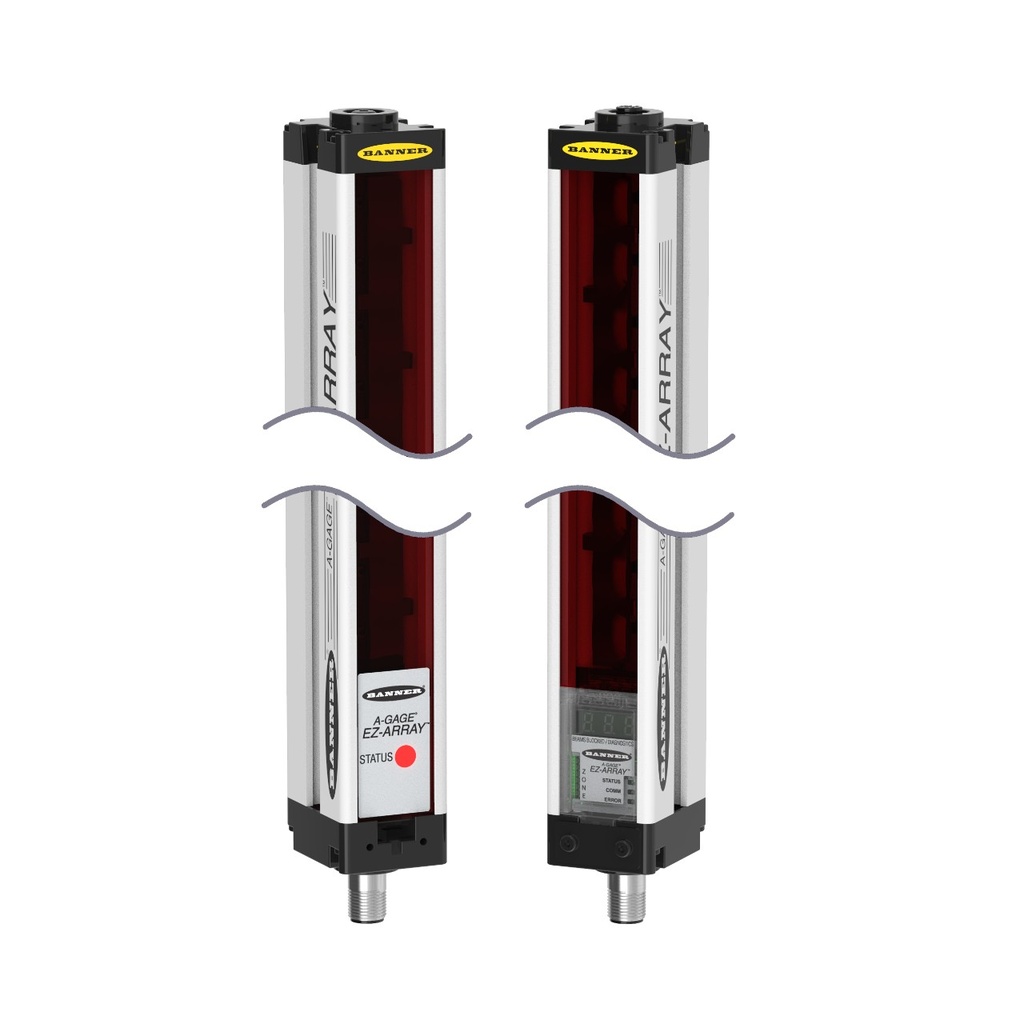

EZ-ARRAY Emitter Receiver Bracket Kit: 150mm (5 (EA5ERBK150PIXMODSRQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 81605
Weight: 2.22 lb(s)
On Hand: 0
EZ-ARRAY Emitter Receiver Bracket Kit: 150mm (5
Features:
- EZ-ARRAY Emitter Receiver Bracket Kit: 150mm (5
- Range: 60mm
- Input: 12-30V dc
- Outputs: 2 Solid-State PNP 2 Analog 4-20mA EIA-4
- Euro 8-Pin Quick-Disconnect
EZ-ARRAY Emitter Receiver Bracket Kit: 150mm (5 (EA5ERBK150PIXMODSRQ)
EZ-ARRAY Emitter Receiver Bracket Kit: 150mm (5
Feature: Discrete Outputs:PNP
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Supply:12-30 VDC
Measurement Minimum:0
Sensing Mode (Detailed):Emitter/Receiver Pair
Beam Spacing:5 mm
Device Type:Kit
Housing Length:227 mm
Max Relative Humidity:95%
Number of Beams:30
Housing Material_:Aluminum
Feature: RS-485:Yes
Analog Output:4 to 20 mA
Feature: Modbus RTU:Yes
Array Length:150 mm
Quick Disconnect Type:M12
Discrete Outputs:PNP
Country of Origin:MX
Emitter/Receiver Range:0.03 to 1.5 m
Feature: Short Range:Yes
Specifications
| Feature: Discrete Outputs | PNP |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 12-30 VDC |
| Measurement Minimum | 0 |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Beam Spacing | 5 mm |
| Device Type | Kit |
| Housing Length | 227 mm |
| Max Relative Humidity | 95% |
| Number of Beams | 30 |
| Housing Material_ | Aluminum |
| Feature: RS-485 | Yes |
| Analog Output | 4 to 20 mA |
| Feature: Modbus RTU | Yes |
| Array Length | 150 mm |
| Quick Disconnect Type | M12 |
| Discrete Outputs | PNP |
| Country of Origin | MX |
| Emitter/Receiver Range | 0.03 to 1.5 m |
| Feature: Short Range | Yes |
