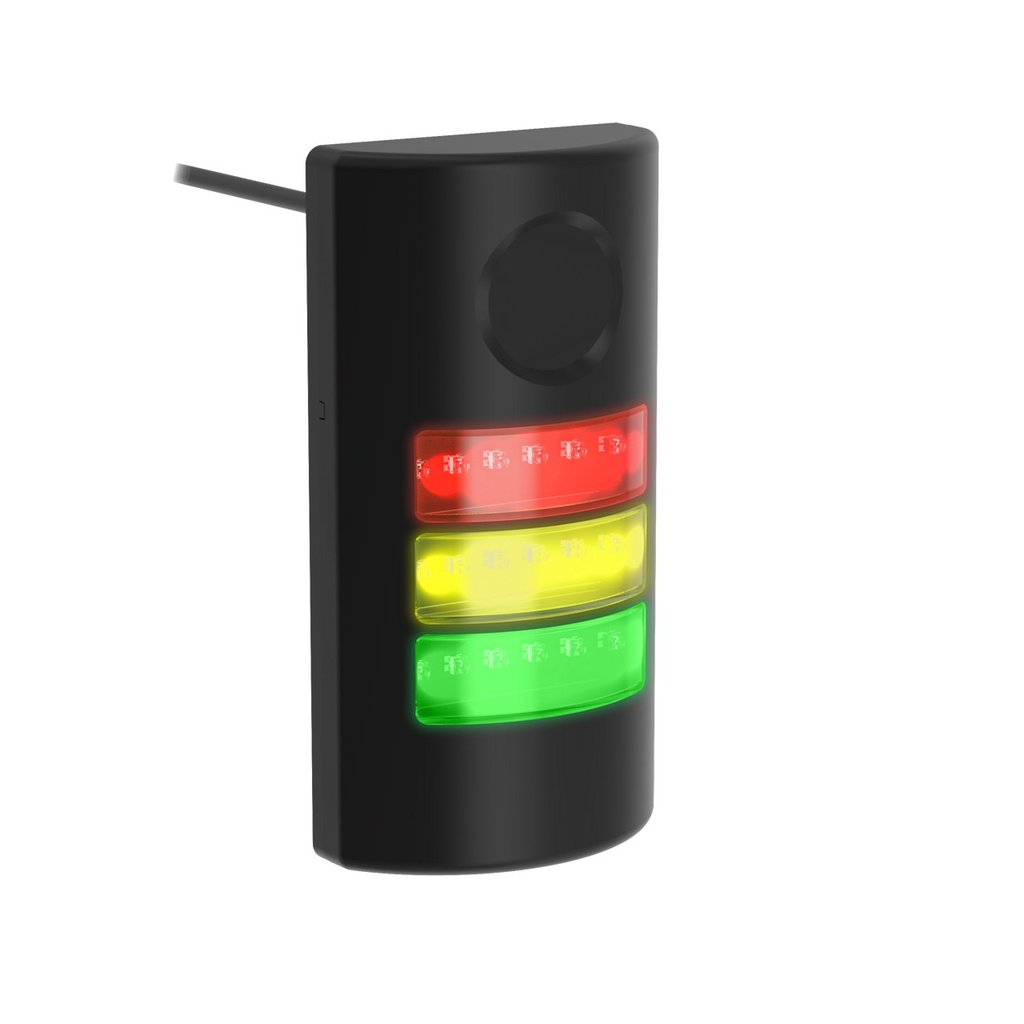

Tlf100 Pro With Pro Editor (TLF100PDLGYRQP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 813431
Weight: 1.05 lb(s)
Features:
- TLF100 Pro with Pro Editor; Daylight Visible; 3 Segment; Black Housing; 24 V dc; Environ. Rating: IP65; IP69K; Colors: Green, Yellow, Red; 5-Pin M12 150 mm (6 in) PVC Pigtail
Tlf100 Pro With Pro Editor (TLF100PDLGYRQP)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:30 mA
Max Current - Audible Alarm (mA):28 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP65/69K
Housing Style:Flat - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:100.0 x 190.0 x 42.2 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Red
Supply Voltage:24 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:Yes
Lumens Color 1:27
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Color 1 - Wavelength/Color Temp/Coordinates:526 nm
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:618 nm
Lumens Color 2:11
Lumens Color 3:15
Product Size (mm):100 mm
Color 2 - Wavelength/Color Temp/Coordinates:587 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:No Thread
Max Input Response Time (ms):250 ms
Feature: Chemical Resistant:No
Dimming Option:Programmable
Number of Tower Light Segments:3
Indication Intensity:High Brightness & Daylight Visible
Feature: PFM Input:Yes
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:UL 4X, UL 4X
Cord/Cable Length:0.15 m
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 30 mA |
| Max Current - Audible Alarm (mA) | 28 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65/69K |
| Housing Style | Flat - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 100.0 x 190.0 x 42.2 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Red |
| Supply Voltage | 24 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 27 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color 1 - Wavelength/Color Temp/Coordinates | 526 nm |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 618 nm |
| Lumens Color 2 | 11 |
| Lumens Color 3 | 15 |
| Product Size (mm) | 100 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 587 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | No Thread |
| Max Input Response Time (ms) | 250 ms |
| Feature: Chemical Resistant | No |
| Dimming Option | Programmable |
| Number of Tower Light Segments | 3 |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature: PFM Input | Yes |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | UL 4X, UL 4X |
| Cord/Cable Length | 0.15 m |
