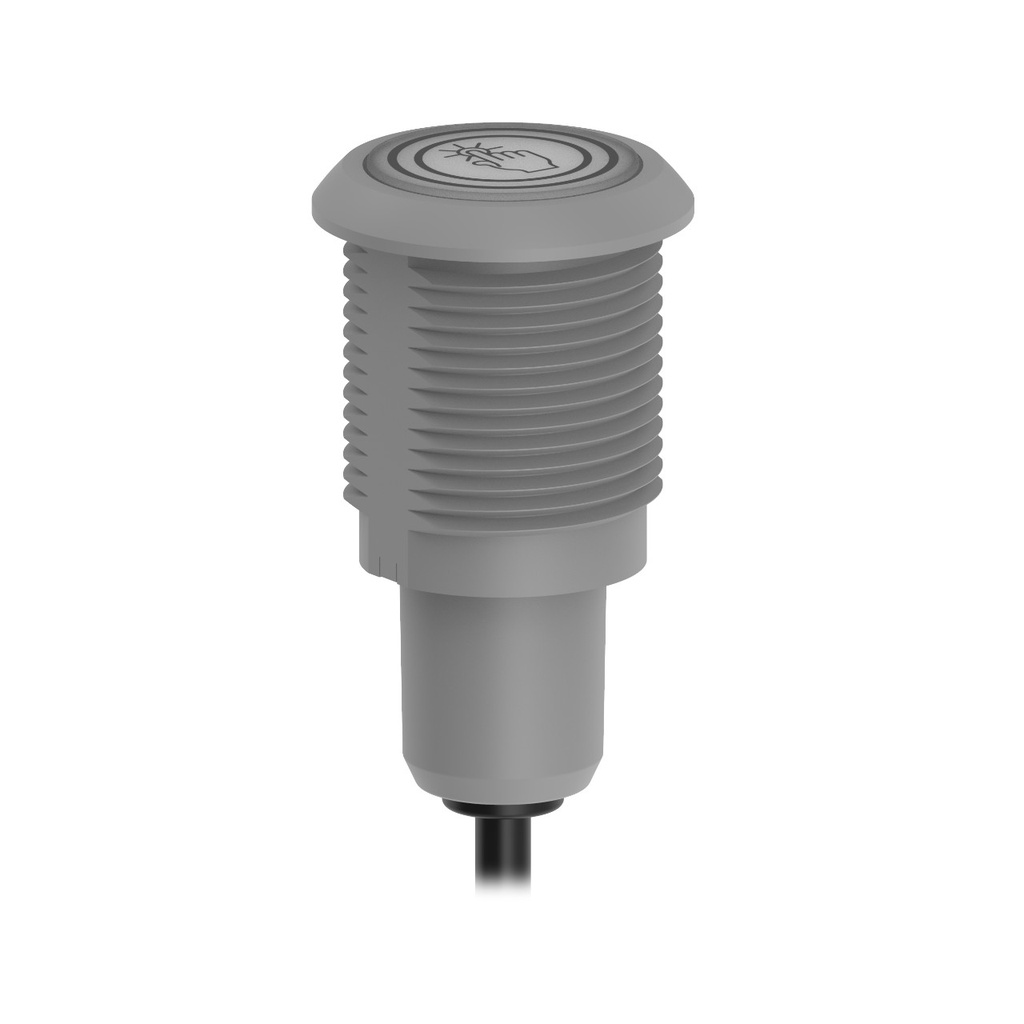

S22 Pro Touch Series: 2-Color Rgb Touch Sensor-Fda (S22AMTFBGHQP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 813386
Weight: 0.01 lb(s)
Features:
- S22 Pro Touch Series: 2-color RGB Touch Sensor-FDA; Voltage: 10-30 V dc; Housing: Copolyester; IP67 IP69K; Output: Bipolar, NO, Momentary; Colors:Blue Green;; Euro 5-pin 150mm (6 in) PVC Pigtail
S22 Pro Touch Series: 2-Color Rgb Touch Sensor-Fda (S22AMTFBGHQP)
Power:DC
Feature: Display Lighting:No
Max Current Color:80 mA
Power Source:VDC
Ingress Protection:IP66/67/69
Housing Style:Barrel Mount - Flat Window
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.3 x 47.8 mm
Feature: Wireless:No
Supply Voltage:10-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:Yes
Lumens Color 1:0.025
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:Blue
Color 1 - Wavelength/Color Temp/Coordinates:465 nm
Housing Color:FDA Gray
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Quick Disconnect Type:M12 (Euro)
Number of Colors / Segments:2
Lumens Color 2:0.175
Color 2 - Wavelength/Color Temp/Coordinates:527 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:M22 x 1.5
Max Input Response Time (ms):20 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Feature: I/O Block Compatible:Yes
Button Operation:Momentary
Activation Function:Capacitive Touch
Max Output Response Time:300 ms
Pick-to-Light Function:H
Connection:Pigtail QD
Cord/Cable Length:150 mm
Max Input Response Time:20 ms
Feature: Actuation:Yes
Specifications
Power | DC |
Feature: Display Lighting | No |
Max Current Color | 80 mA |
Power Source | VDC |
Ingress Protection | IP66/67/69 |
Housing Style | Barrel Mount - Flat Window |
Feature: Washdown Rated | Yes |
Feature: Hazardous Area | No |
Feature: IO Link | No |
Feature: Modbus RTU | No |
Physical Dimensions | 27.3 x 47.8 mm |
Feature: Wireless | No |
Supply Voltage | 10-30 VDC |
Color Option 2 | Green |
Feature: Quick Disconnect | Yes |
Lumens Color 1 | 0.025 |
Color Technology | RGB Configurable |
Feature: Audible | No |
Color Option 1 | Blue |
Color 1 - Wavelength/Color Temp/Coordinates | 465 nm |
Housing Color | FDA Gray |
Color Input Control | Individual (One wire/color, same number of colors as input wires) |
Multi-Color Device | Single Color On |
Quick Disconnect Type | M12 (Euro) |
Number of Colors / Segments | 2 |
Lumens Color 2 | 0.175 |
Color 2 - Wavelength/Color Temp/Coordinates | 527 nm |
Number of Input Pins/Conductors | 5 |
Input Type | Bimodal (PNP/NPN) |
Max Op. Relative NC Humidity | 90% @ 50 °C |
Feature: Pro-Editor Compatible (Discrete) | Yes |
Mounting Thread | M22 x 1.5 |
Max Input Response Time (ms) | 20 ms |
Feature: Chemical Resistant | No |
Storage Temp | -40 to 70 °C |
Feature: I/O Block Compatible | Yes |
Button Operation | Momentary |
Activation Function | Capacitive Touch |
Max Output Response Time | 300 ms |
Pick-to-Light Function | H |
Connection | Pigtail QD |
Cord/Cable Length | 150 mm |
Max Input Response Time | 20 ms |
Feature: Actuation | Yes |
