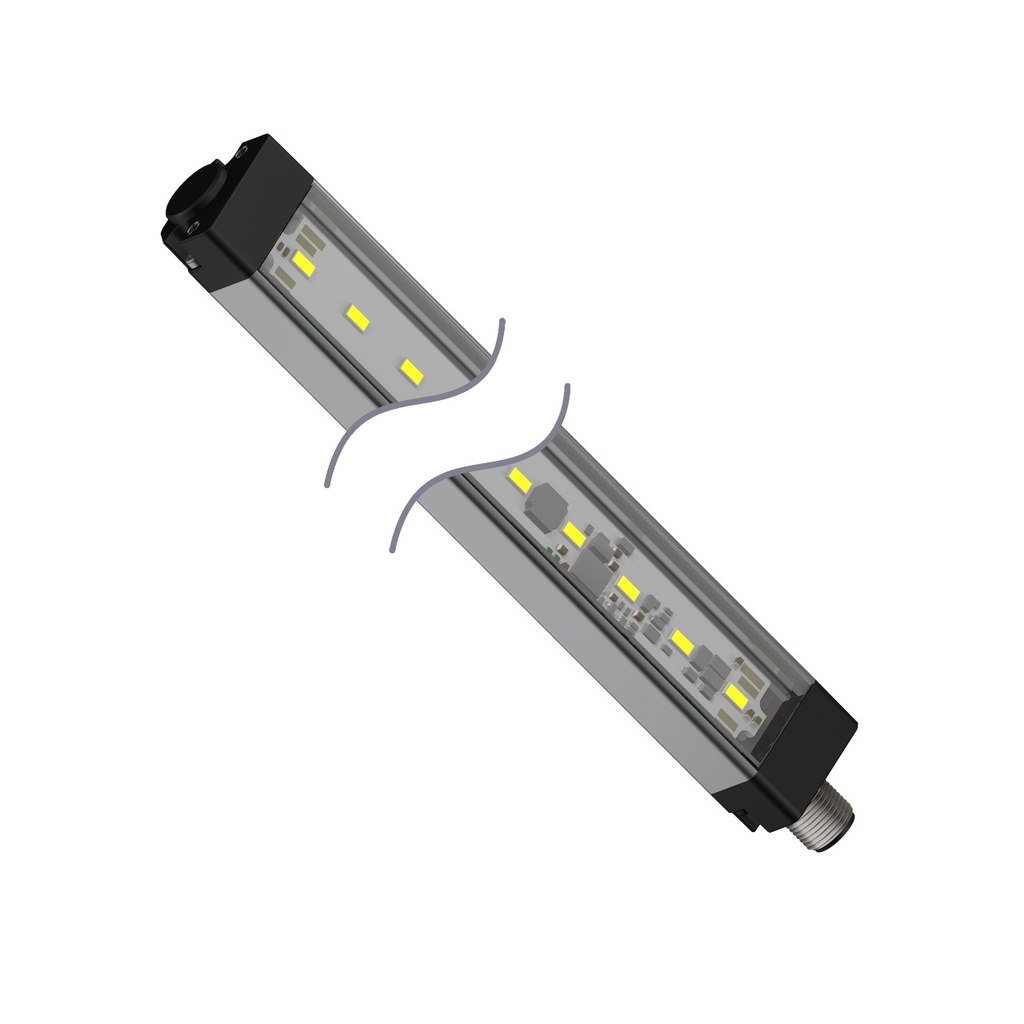

Wls28-2 Multicolor Light Strip (WLS28-2XWYRXX6-0285DX24Q)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 813094
Weight: 0.07 lb(s)
Features:
- WLS28-2 Multicolor Light Strip; I/O Block Control, Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP50; Colors: White, Yellow, Red; Non-Cascadable; Euro 4-pin Integral Connector,Diffuse Window
Wls28-2 Multicolor Light Strip (WLS28-2XWYRXX6-0285DX24Q)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:400 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Ingress Protection:IP50
Housing Style:Linear Strip
Housing Material_:Aluminum
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:327.0 x 28.0 x 20.9 mm
Feature: Indication:Yes
Color Option 3:Red
Supply Voltage:24 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:Yes
Lumens Color 1:650
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Daylight White
Color 1 - Wavelength/Color Temp/Coordinates:5000K (Daylight)
Color Input Control:Multiple (One or more wires/color, enables more colors than input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:625 nm
Lumens Color 2:570
Lumens Color 3:185
Product Size (mm):28 mm
Color 2 - Wavelength/Color Temp/Coordinates:580 nm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Feature: I/O Block Compatible:Yes
Illuminated Length (LxWxH):285.0 mm
Feature: Illumination:Yes
Connection Type:Integral QD
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 400 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP50 |
| Housing Style | Linear Strip |
| Housing Material_ | Aluminum |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 327.0 x 28.0 x 20.9 mm |
| Feature: Indication | Yes |
| Color Option 3 | Red |
| Supply Voltage | 24 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 650 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Daylight White |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 2 | 570 |
| Lumens Color 3 | 185 |
| Product Size (mm) | 28 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 580 nm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Feature: I/O Block Compatible | Yes |
| Illuminated Length (LxWxH) | 285.0 mm |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
