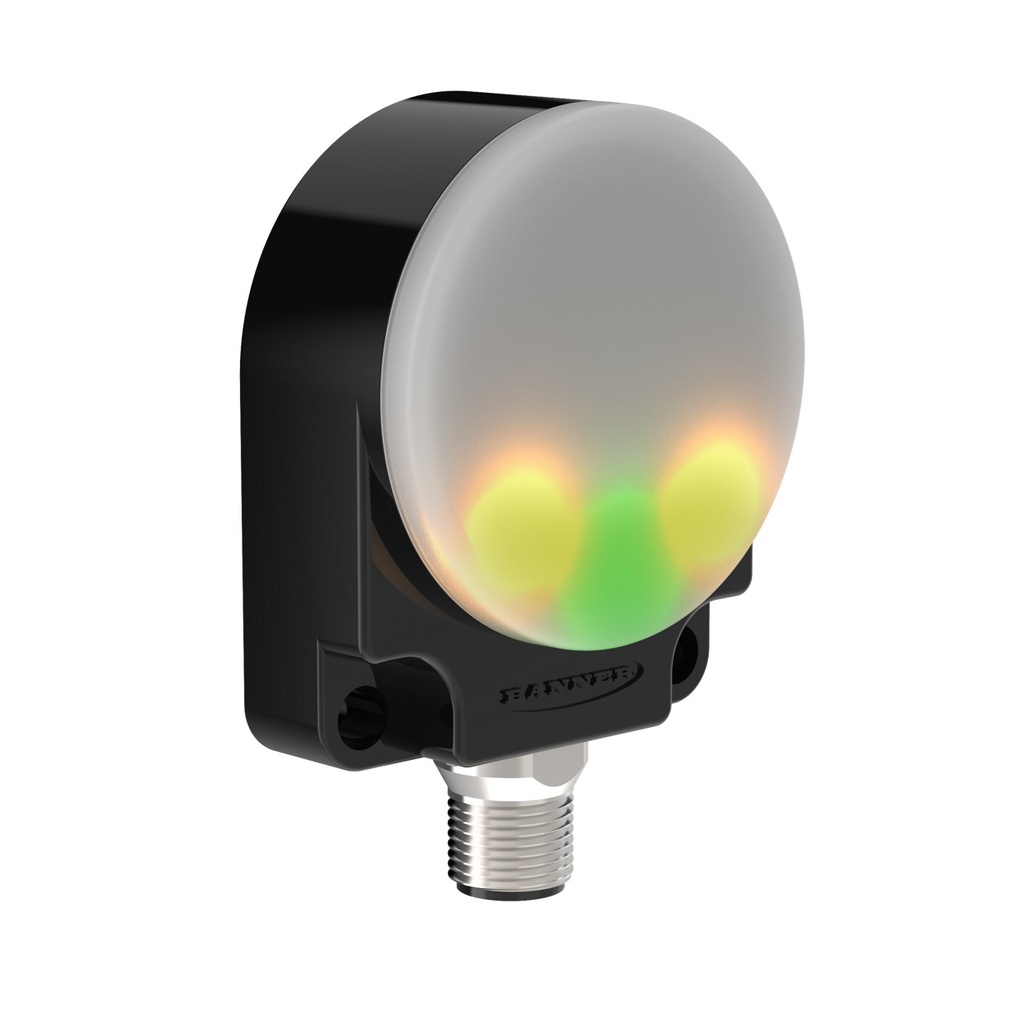

K50R R-Gage Series Radar Sensor (K50RF-8060-LDQ)
Brand_Name:Banner
Power:DC
Max Off-State Leakage Current (µA):<40 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Min Operating Temperature:-40 °C
Max Operating Temperature:60 °C
Power Supply:10-30 VDC
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Flat Pack
Max Sensing Distance:2500 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS/Polycarbonate
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Software; Remote Teach
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:200 ms
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock:MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
Max Discrete (Switched) Output (mA):50
Min Sensing Distance:100 mm
Feature: Clear Object Detection:Yes
Remote Teach and Laser Control Input Impedence:55 kΩ
Discrete (Switched) Outputs:2 NPN/PNP Configurable
Max Measurement Range:1-5 m
Output Protection:Protected against short circuit
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<3 V @ 50 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Operating Frequency:60 GHz
Connection Type:Integral QD, Integral QD, Integral QD, Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:Yes
Feature: PFM Output:Yes
Radar Beam Pattern (H x V °):80 x 60
Indicator Type:LED
Discrete Output Hysteresis:100 - 2500 mm, Manual Adjust
Specifications
| Brand_Name | Banner |
| Power | DC |
| Max Off-State Leakage Current (µA) | <40 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP) |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Power Supply | 10-30 VDC |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Flat Pack |
| Max Sensing Distance | 2500 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS/Polycarbonate |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Software; Remote Teach |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | 200 ms |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Mechanical Shock | MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation). |
| Max Discrete (Switched) Output (mA) | 50 |
| Min Sensing Distance | 100 mm |
| Feature: Clear Object Detection | Yes |
| Remote Teach and Laser Control Input Impedence | 55 kΩ |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Max Measurement Range | 1-5 m |
| Output Protection | Protected against short circuit |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <3 V @ 50 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Operating Frequency | 60 GHz |
| Connection Type | Integral QD, Integral QD, Integral QD, Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | Yes |
| Feature: PFM Output | Yes |
| Radar Beam Pattern (H x V °) | 80 x 60 |
| Indicator Type | LED |
| Discrete Output Hysteresis | 100 - 2500 mm, Manual Adjust |
