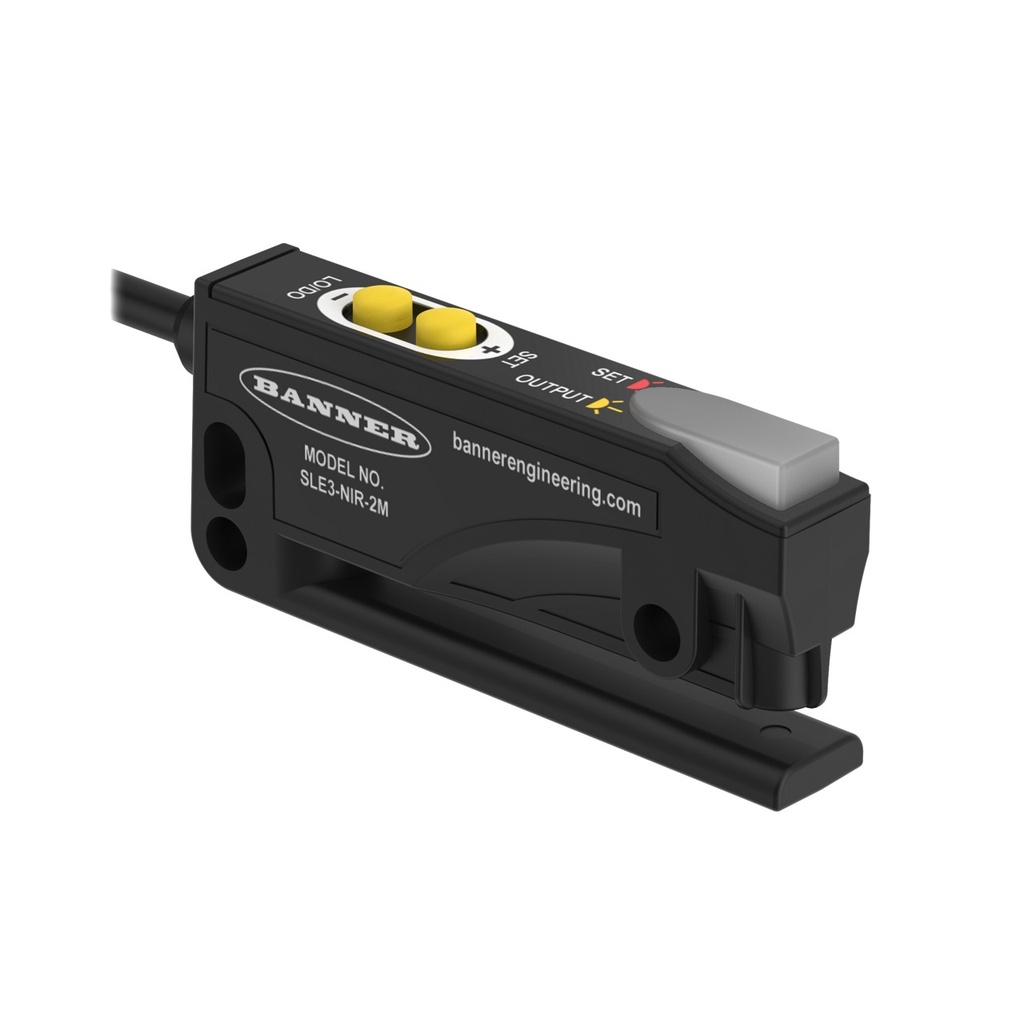

Sle3 Series: Label Sensor (SLE3-NIR-2M)
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:N/A
Power Supply:4.75-30 VDC
Ingress Protection:IP65
Housing Style:Label
Max Sensing Distance:3 mm
Sensing Mode (Detailed):Emitter/Receiver Pair
Number of Beams:1
Housing Material_:Polycarbonate
Feature: Quick Disconnect:No
Output:NPN
Number of Pins:4
Output Response Time:0.04 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Remote Teach:Yes
Connection Type:Cable
Country of Origin:US
Cord/Cable Length:2 m
Indicator Type:LED
Max Sensing Range:3 mm
Slot Depth/Array Length (mm):44 mm
Slot Overall Depth (mm):44 mm
Specifications
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | N/A |
| Power Supply | 4.75-30 VDC |
| Ingress Protection | IP65 |
| Housing Style | Label |
| Max Sensing Distance | 3 mm |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Number of Beams | 1 |
| Housing Material_ | Polycarbonate |
| Feature: Quick Disconnect | No |
| Output | NPN |
| Number of Pins | 4 |
| Output Response Time | 0.04 ms |
| Operation | Light/Dark Operate |
| Adjustments | Teach Button |
| Feature: Remote Teach | Yes |
| Connection Type | Cable |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
| Indicator Type | LED |
| Max Sensing Range | 3 mm |
| Slot Depth/Array Length (mm) | 44 mm |
| Slot Overall Depth (mm) | 44 mm |
