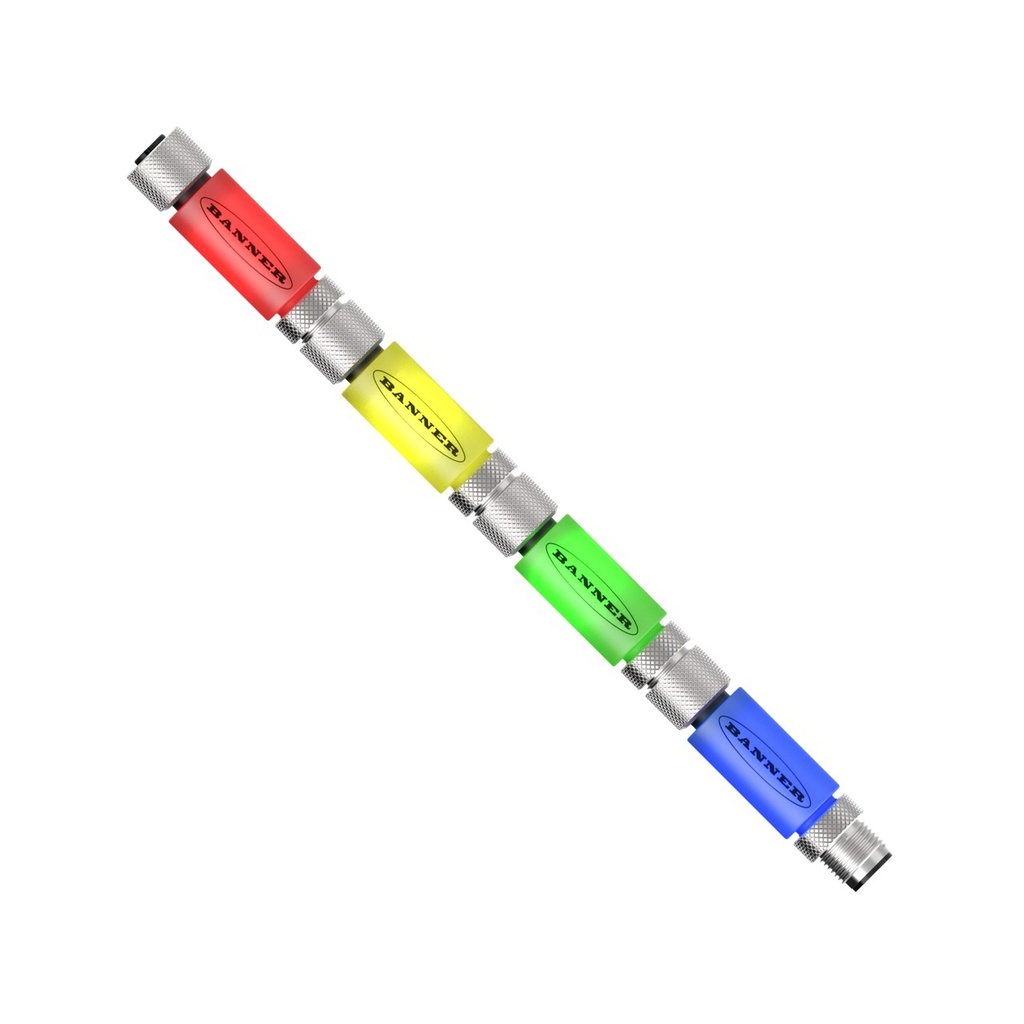

Tl15 Series Kit: 4-Color In-Line Status Indicator (TL15BGYRQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 812579
Weight: 0.45 lb(s)
Features:
- TL15 Series Kit: 4-Color In-Line Status Indicator; Voltage: 12 or 24 V dc; Housing: PVC; IP67; Input: PNP; Colors: Blue, Green, Yellow, Red; Male-Female M12 5-pin Quick-Disconnect Connector
Tl15 Series Kit: 4-Color In-Line Status Indicator (TL15BGYRQ)
Brand_Name:Banner
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:80 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP66/67/68
Housing Style:Barrel - Straight
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:PVC
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:15.0 X 58.0 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Yellow
Supply Voltage:12/24 V DC
Color Option 2:Green
Feature: Quick Disconnect:Yes
Lumens Color 1:3
Animation Option 3:Solid On
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Blue
Animation Option 2:Solid On
Color 1 - Wavelength/Color Temp/Coordinates:470 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:4
Color 3 - Wavelength/Color Temp/Coordinates:620 nm
Lumens Color 2:18
Lumens Color 3:10
Product Size (mm):15 mm
Color 2 - Wavelength/Color Temp/Coordinates:535 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Color Option 4:Red
Color 4 - Wavelength/Color Temp/Coordinates:590 nm
Lumens Color 4:22
Number of Tower Light Segments:4
Feature: Cascade:Yes
Animation Option 4:Solid On
Connection Type:Integral QD, Integral QD
Country of Origin:US
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 80 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP66/67/68 |
| Housing Style | Barrel - Straight |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | PVC |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 15.0 X 58.0 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Yellow |
| Supply Voltage | 12/24 V DC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 3 |
| Animation Option 3 | Solid On |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Blue |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 4 |
| Color 3 - Wavelength/Color Temp/Coordinates | 620 nm |
| Lumens Color 2 | 18 |
| Lumens Color 3 | 10 |
| Product Size (mm) | 15 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 535 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Color Option 4 | Red |
| Color 4 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 4 | 22 |
| Number of Tower Light Segments | 4 |
| Feature: Cascade | Yes |
| Animation Option 4 | Solid On |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
