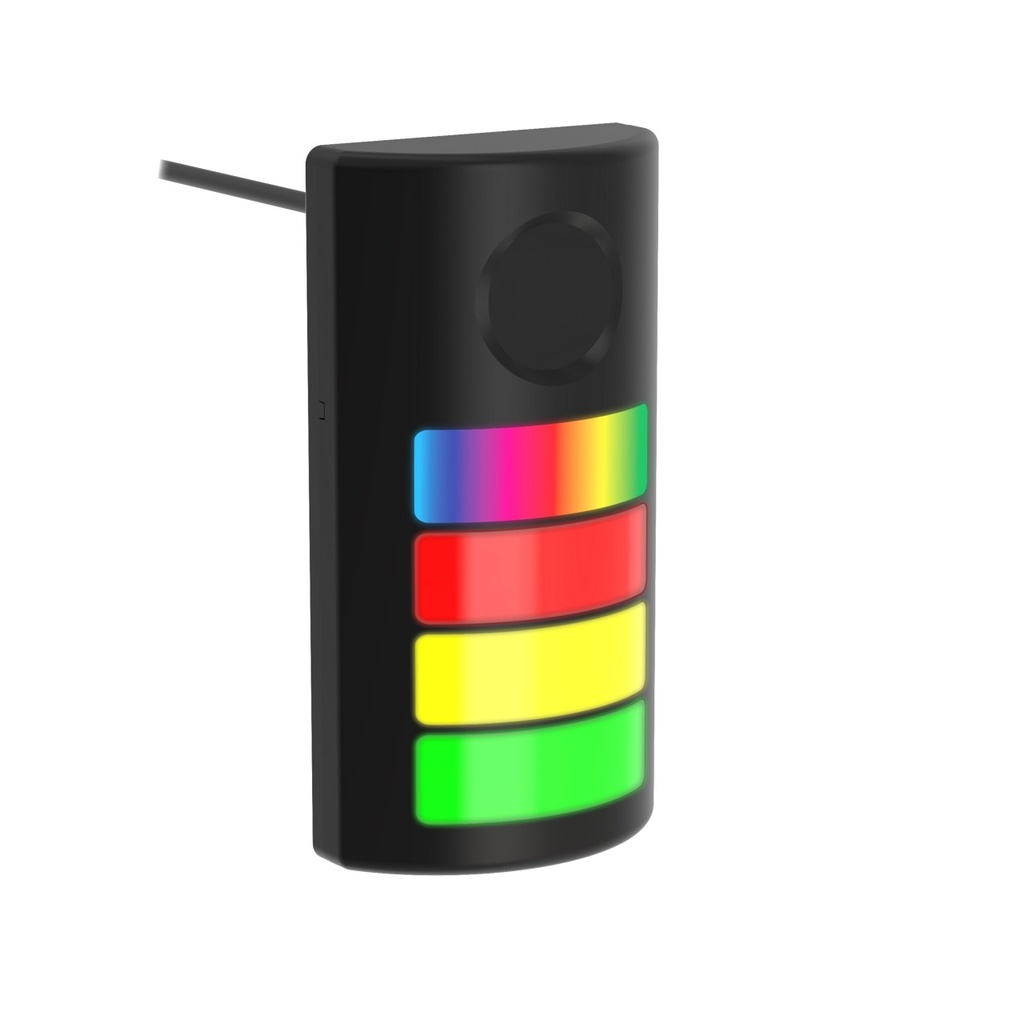

Tlf100 Pro With Io-Link (TLF100P4KQP)
Power:DC
Feature: Display:No
Max Current Color:150 mA
Max Current - Audible Alarm (mA):56 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP65/69K
Housing Style:Flat - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:Yes
Feature: Modbus RTU:No
Physical Dimensions:100.0 x 190.0 x 42.2 mm
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:18-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:RGB IO-Link
Feature: Audible:No
Housing Color:Black
Color Input Control:Communication Protocol
Multi-Color Device:Simultaneous Colors On
Animation Option 1:IO-Link Controlled
Quick Disconnect Type:M12
Number of Colors / Segments:4
Product Size (mm):100 mm
Number of Input Pins/Conductors:4
Input Type:Communication Protocol
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread, No Thread
Max Input Response Time (ms):20 ms
Feature: Chemical Resistant:No
Dimming Option:Programmable
Number of Tower Light Segments:4
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:UL 4X, UL 4X
Cord/Cable Length:0.15 m
Specifications
| Power | DC |
| Feature: Display | No |
| Max Current Color | 150 mA |
| Max Current - Audible Alarm (mA) | 56 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65/69K |
| Housing Style | Flat - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | Yes |
| Feature: Modbus RTU | No |
| Physical Dimensions | 100.0 x 190.0 x 42.2 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 18-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | RGB IO-Link |
| Feature: Audible | No |
| Housing Color | Black |
| Color Input Control | Communication Protocol |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 4 |
| Product Size (mm) | 100 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | Communication Protocol |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread, No Thread |
| Max Input Response Time (ms) | 20 ms |
| Feature: Chemical Resistant | No |
| Dimming Option | Programmable |
| Number of Tower Light Segments | 4 |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | UL 4X, UL 4X |
| Cord/Cable Length | 0.15 m |
