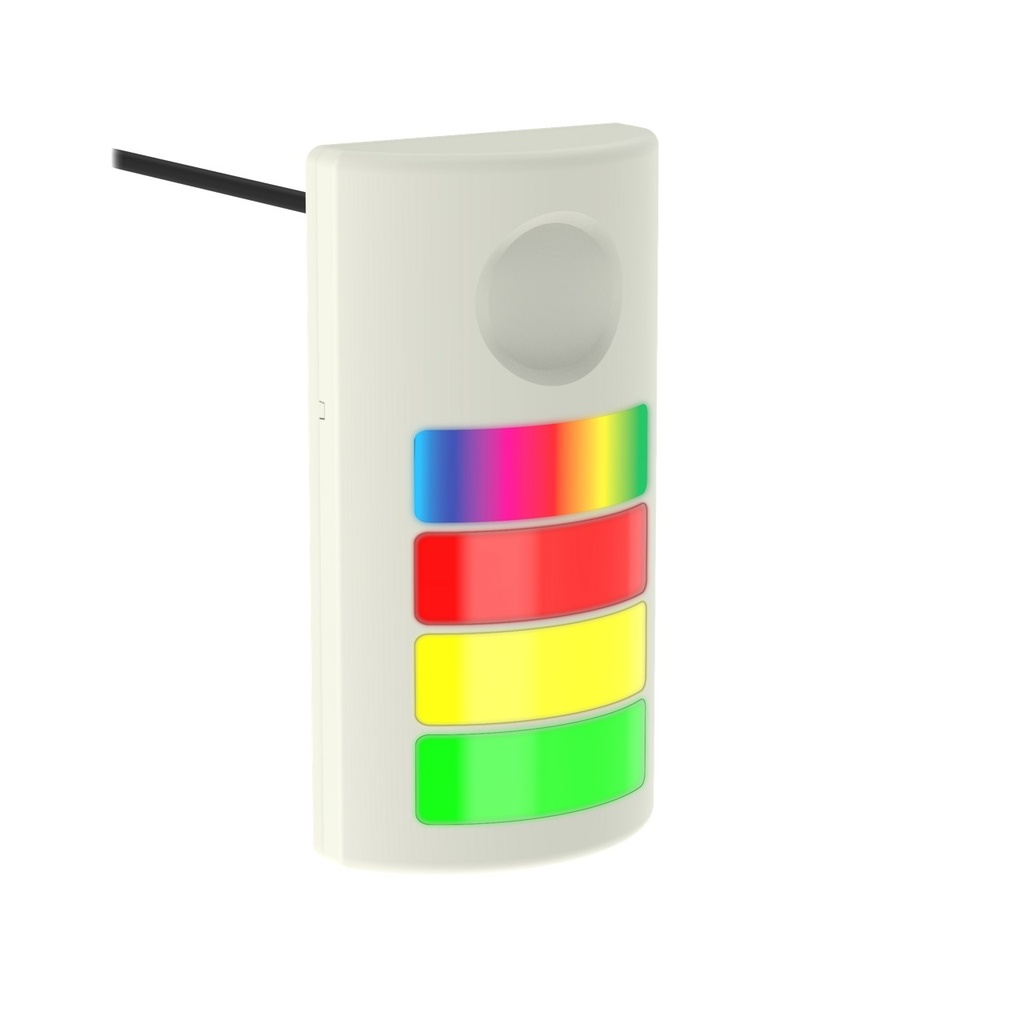

Tlf100 Pro With Pro Editor (TLF100P4AC)
Power:DC
Feature: Display:No
Max Current Color:150 mA
Max Current - Audible Alarm (mA):56 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP65/69K
Housing Style:Flat - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:100.0 x 190.0 x 42.2 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Yellow
Max Audible Intensity:94 dB @ 1 m
Supply Voltage:12-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:No
Lumens Color 1:1.4
Min Audible Intensity @ 1m:84 dB
Color Technology:RGB Configurable
Feature: Audible:Yes
Color Option 1:Blue
Color 1 - Wavelength/Color Temp/Coordinates:467 nm
Housing Color:Gray
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Audible Operating Frequency (kHz):3
Number of Colors / Segments:4
Color 3 - Wavelength/Color Temp/Coordinates:578 nm
Lumens Color 2:7.5
Lumens Color 3:9.8
Product Size (mm):100 mm
Color 2 - Wavelength/Color Temp/Coordinates:532 nm
Number of Input Pins/Conductors:8
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:No Thread
Max Input Response Time (ms):250 ms
Feature: Chemical Resistant:No
Audible Alarm Type:Programmable
Color Option 4:Red
Color 4 - Wavelength/Color Temp/Coordinates:621 nm
Lumens Color 4:3.7
Dimming Option:Programmable
Number of Tower Light Segments:5
Feature: PFM Input:Yes
Connection Type:Cable
Country of Origin:US
NEMA / UL:UL 4X, UL 4X
Cord/Cable Length:2 m
Specifications
| Power | DC |
| Feature: Display | No |
| Max Current Color | 150 mA |
| Max Current - Audible Alarm (mA) | 56 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65/69K |
| Housing Style | Flat - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 100.0 x 190.0 x 42.2 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Yellow |
| Max Audible Intensity | 94 dB @ 1 m |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 1.4 |
| Min Audible Intensity @ 1m | 84 dB |
| Color Technology | RGB Configurable |
| Feature: Audible | Yes |
| Color Option 1 | Blue |
| Color 1 - Wavelength/Color Temp/Coordinates | 467 nm |
| Housing Color | Gray |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Audible Operating Frequency (kHz) | 3 |
| Number of Colors / Segments | 4 |
| Color 3 - Wavelength/Color Temp/Coordinates | 578 nm |
| Lumens Color 2 | 7.5 |
| Lumens Color 3 | 9.8 |
| Product Size (mm) | 100 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 532 nm |
| Number of Input Pins/Conductors | 8 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | No Thread |
| Max Input Response Time (ms) | 250 ms |
| Feature: Chemical Resistant | No |
| Audible Alarm Type | Programmable |
| Color Option 4 | Red |
| Color 4 - Wavelength/Color Temp/Coordinates | 621 nm |
| Lumens Color 4 | 3.7 |
| Dimming Option | Programmable |
| Number of Tower Light Segments | 5 |
| Feature: PFM Input | Yes |
| Connection Type | Cable |
| Country of Origin | US |
| NEMA / UL | UL 4X, UL 4X |
| Cord/Cable Length | 2 m |
