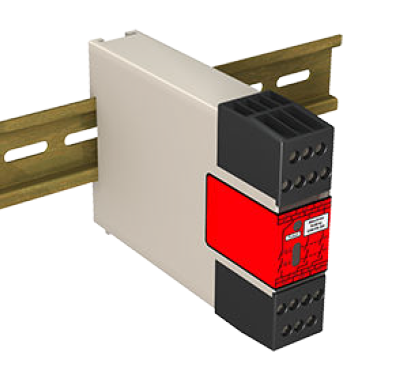

Safety Relay Module for Safety Light Curtain/Scanner/E-Stop/Interlock (UM-FA-11A)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 81228
Weight: 0.03 lb(s)
Features:
- Safety Relay Module for Safety Light Curtain/Scanner/E-Stop/Interlock
- Supply Voltage: 24 V ac/dc
- Safety Input: 1 Dual/Single Channel
- Safety Output: 2 NO, 7 Amp
- Aux Output: 1 NC, 7 Amp
- Terminal Block: Removable
- Width: 22.5mm
- Self-Checking Circuitry, Auto/Manual Reset
Safety Relay Module for Safety Light Curtain/Scanner/E-Stop/Interlock (UM-FA-11A)
Measurement Maximum:0
Max Operating Temperature:50 °C
Power Consumption:2 W / 2 VA
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Relay
Feature: PCCC:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Supply Voltage:24 VAC/dc +/- 10%
Safety Module Type:Universal Module
Independently Controlled Safe Outputs:1
PL Rating:e
Non Safe Output Rating:Relay - 7 A
Safety Input - Dual Channel (Solid-State):5-20 mA @ 18-28 VDC (PNP)
SISTEMA:PFHd = 5.0 x 10-10
Relative Humidity:90% @ 50 °C
Vibration:10-55 Hz at 0.35 mm
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Input Configuration:2 OSSD, 2 NC, or 1 NC
Terminal Type:Screw
Input Operation:Simultaneous or Concurrent
Number of Safe Inputs:1
Safety Input - Reset:40-100 mA @ 24 VAC/dc +/- 10%
Safety Mat:No
Input Resistance:100 Ω max. per channel
Recovery Time:250 ms
Response Time:25 ms
Non Safe Output Configuration:1 NC
Number of Stored Colors:1
Safety Input - Single Channel:40-100 mA @ 24 VAC/dc +/- 10%
Country of Origin:US
Feature: Common Ethernet Protocol:No
Electrical Life:1,000,000 @ 450 VA
Feature: E-Stops/Rope Pulls:Yes
Feature: Expandable:No
Feature: Removable Terminals:Yes
Feature: Gate Switch (NC/NC) Input:Yes
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:Yes
Feature: Light Curtains/Scanner with EDM Input:Yes
Feature: Light Curtains/Scanner without EDM Input:Yes
Feature: Motor Speed:No
Feature: Muting:No
Safety Input - Dual Channel (Dry Contact):10-20 mA @ 12 VDC
Feature: Safety Mat:No
Feature: In-Series Diagnostics:No
Mechanical Life:20 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 50 °C |
| Power Consumption | 2 W / 2 VA |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Relay |
| Feature: PCCC | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Supply Voltage | 24 VAC/dc +/- 10% |
| Safety Module Type | Universal Module |
| Independently Controlled Safe Outputs | 1 |
| PL Rating | e |
| Non Safe Output Rating | Relay - 7 A |
| Safety Input - Dual Channel (Solid-State) | 5-20 mA @ 18-28 VDC (PNP) |
| SISTEMA | PFHd = 5.0 x 10-10 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 10-55 Hz at 0.35 mm |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Input Configuration | 2 OSSD, 2 NC, or 1 NC |
| Terminal Type | Screw |
| Input Operation | Simultaneous or Concurrent |
| Number of Safe Inputs | 1 |
| Safety Input - Reset | 40-100 mA @ 24 VAC/dc +/- 10% |
| Safety Mat | No |
| Input Resistance | 100 Ω max. per channel |
| Recovery Time | 250 ms |
| Response Time | 25 ms |
| Non Safe Output Configuration | 1 NC |
| Number of Stored Colors | 1 |
| Safety Input - Single Channel | 40-100 mA @ 24 VAC/dc +/- 10% |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Electrical Life | 1,000,000 @ 450 VA |
| Feature: E-Stops/Rope Pulls | Yes |
| Feature: Expandable | No |
| Feature: Removable Terminals | Yes |
| Feature: Gate Switch (NC/NC) Input | Yes |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | Yes |
| Feature: Light Curtains/Scanner with EDM Input | Yes |
| Feature: Light Curtains/Scanner without EDM Input | Yes |
| Feature: Motor Speed | No |
| Feature: Muting | No |
| Safety Input - Dual Channel (Dry Contact) | 10-20 mA @ 12 VDC |
| Feature: Safety Mat | No |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 20 mil |
