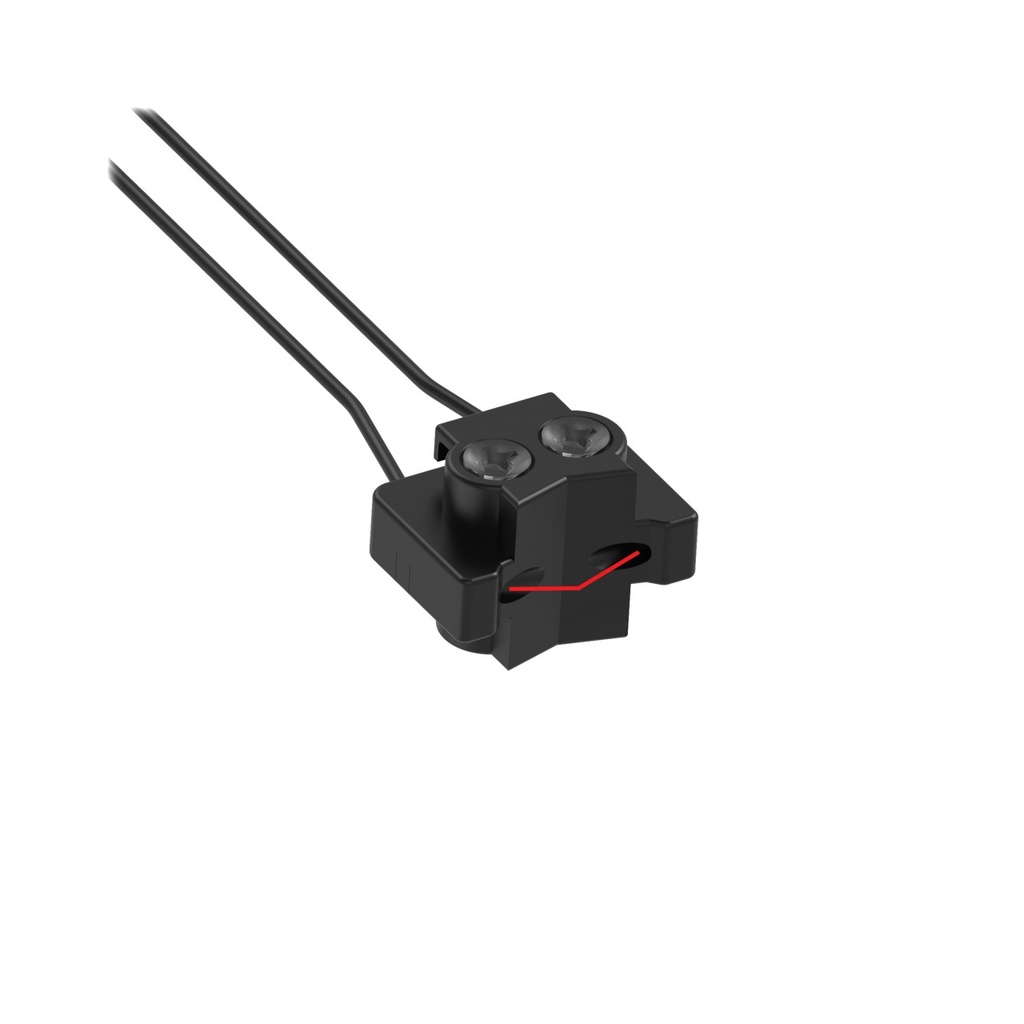

Plastic Fiber (PDIL26ULLD-VL)
Max Operating Temperature:70 °C
Housing Style:Fixtured
Sensing Mode (Detailed):Slot
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Specialty
Tariff Fiber Meters:10 fbm
Min Bend Radius:2 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:15.5 x 22.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Specialty
Termination:Free Cut
Sensing End Material (Specific):Polyethylene
Feature: Integrated Lens:Yes
Core Diameter:0.5 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:15.5 x 22.0 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Beam Exit:Right Angle
Feature: Liquid Level:Yes
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:2 mm
Specifications
| Max Operating Temperature | 70 °C |
| Housing Style | Fixtured |
| Sensing Mode (Detailed) | Slot |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Specialty |
| Tariff Fiber Meters | 10 fbm |
| Min Bend Radius | 2 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 15.5 x 22.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Specialty |
| Termination | Free Cut |
| Sensing End Material (Specific) | Polyethylene |
| Feature: Integrated Lens | Yes |
| Core Diameter | 0.5 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 15.5 x 22.0 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Beam Exit | Right Angle |
| Feature: Liquid Level | Yes |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 2 mm |
