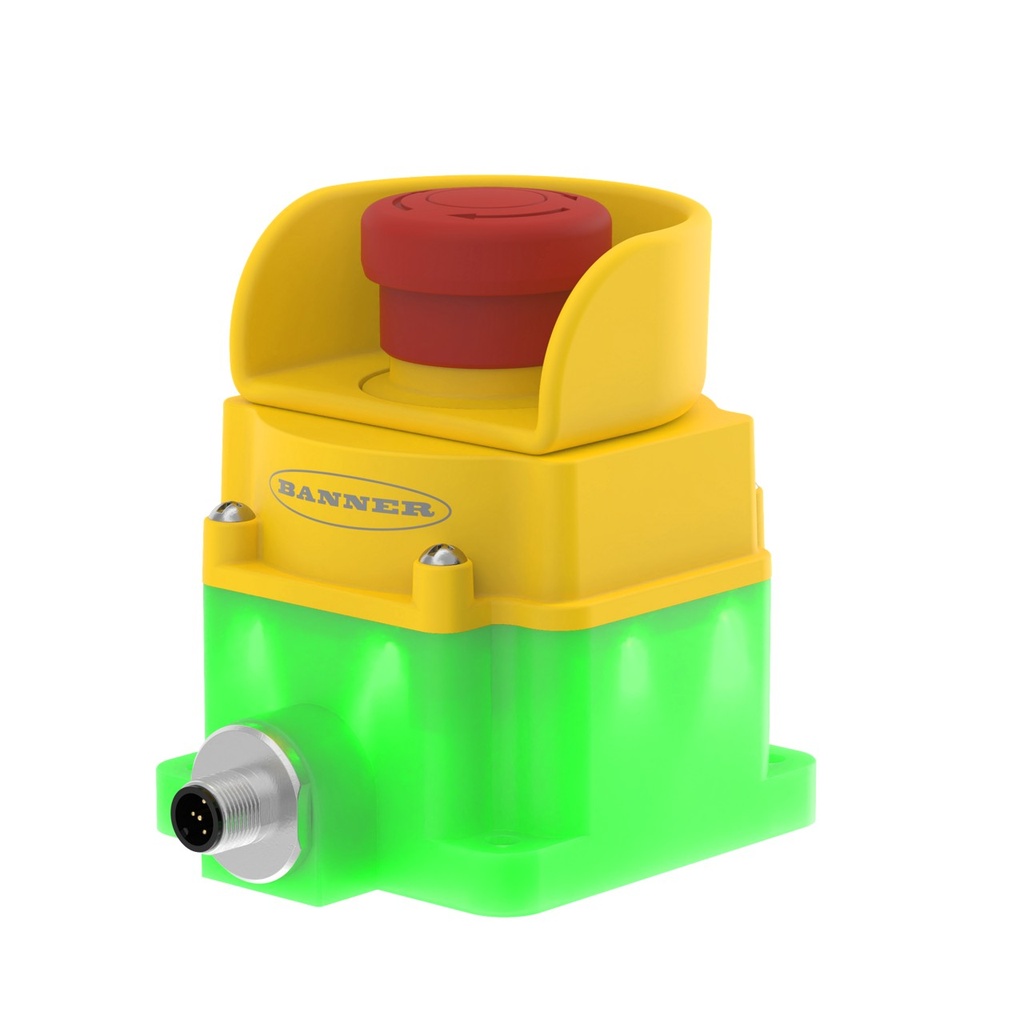

Emergency Stop With Isd: Flush Mount 40 Mm Push Button (SSA-EB1PLGRS1-0DED1Q8)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 811874
Weight: 0.95 lb(s)
Features:
- Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8 Pin Euro-style Quick-Disconnect Connector; ESC-1-YW Button Shroud Installed
Emergency Stop With Isd: Flush Mount 40 Mm Push Button (SSA-EB1PLGRS1-0DED1Q8)
Valve: Actuation:Twist-to-Release
Brand_Name:Banner
Min Operating Temperature:-25 °C
Max Operating Temperature:50 °C
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:103 x 110 x 81 mm
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Contact Quantity:2 NC OSSD
Actuated Color:Red - Flash
Actuator/Button Material:Thermoplastic
Contact Rating:24 VDC @ 0.1 A each
Mounting Thread/Style:Flat
Feature: Illuminated:Yes
Feature: Lockable:No
Illumination Type:Base
Armed Color (Solid):Green
Connection Type:M12, M12
Country of Origin:US
Button Diameter:40 mm
Feature: Button Shroud:Yes
Feature: In-Series Diagnostics:Yes
Feature: Actuation:Twist-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist-to-Release |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 103 x 110 x 81 mm |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Contact Quantity | 2 NC OSSD |
| Actuated Color | Red - Flash |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 24 VDC @ 0.1 A each |
| Mounting Thread/Style | Flat |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Illumination Type | Base |
| Armed Color (Solid) | Green |
| Connection Type | M12, M12 |
| Country of Origin | US |
| Button Diameter | 40 mm |
| Feature: Button Shroud | Yes |
| Feature: In-Series Diagnostics | Yes |
| Feature: Actuation | Twist-to-Release |
