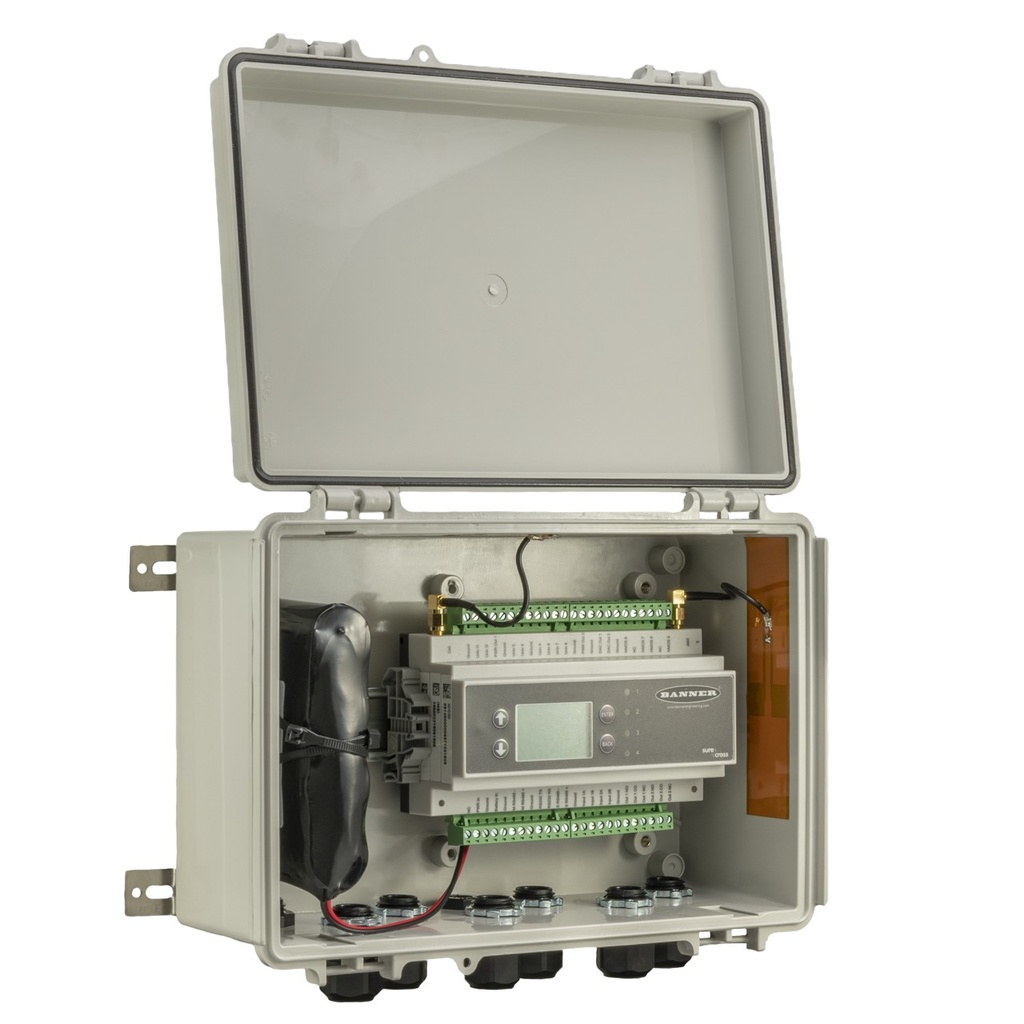

Representative photo. Please check item description for details.
Dxm1500 B1 Controller (DEK1500-B1R1-V)
Power:Battery & DC Supply
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Pressure Sensor Input:Yes
Input Voltage:12 to 30 VDC
Housing Material_:PBT
Feature: RS-232:Yes
Feature: RS-485:Yes
Feature: Has EtherNet/IP:Yes
Feature: Modbus/TCP:Yes
Feature: Hazardous Area:No
Feature: Modbus RTU:Yes
Feature: Wireless:Yes
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Feature: Ships With Battery:Yes
Wireless Radio Frequency:900 MHz
Feature: Tree Topology:No
Feature: Star Topology:Yes
Battery Type/Size:LiFePO
Cellular Carrier:Verizon
Feature: Relative Humidity Input:Yes
Feature: Tank Level:Yes
Feature: Temperature Input:Yes
Feature: Vibration Sensor Input:Yes
Specifications
| Power | Battery & DC Supply |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Pressure Sensor Input | Yes |
| Input Voltage | 12 to 30 VDC |
| Housing Material_ | PBT |
| Feature: RS-232 | Yes |
| Feature: RS-485 | Yes |
| Feature: Has EtherNet/IP | Yes |
| Feature: Modbus/TCP | Yes |
| Feature: Hazardous Area | No |
| Feature: Modbus RTU | Yes |
| Feature: Wireless | Yes |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Feature: Ships With Battery | Yes |
| Wireless Radio Frequency | 900 MHz |
| Feature: Tree Topology | No |
| Feature: Star Topology | Yes |
| Battery Type/Size | LiFePO |
| Cellular Carrier | Verizon |
| Feature: Relative Humidity Input | Yes |
| Feature: Tank Level | Yes |
| Feature: Temperature Input | Yes |
| Feature: Vibration Sensor Input | Yes |
