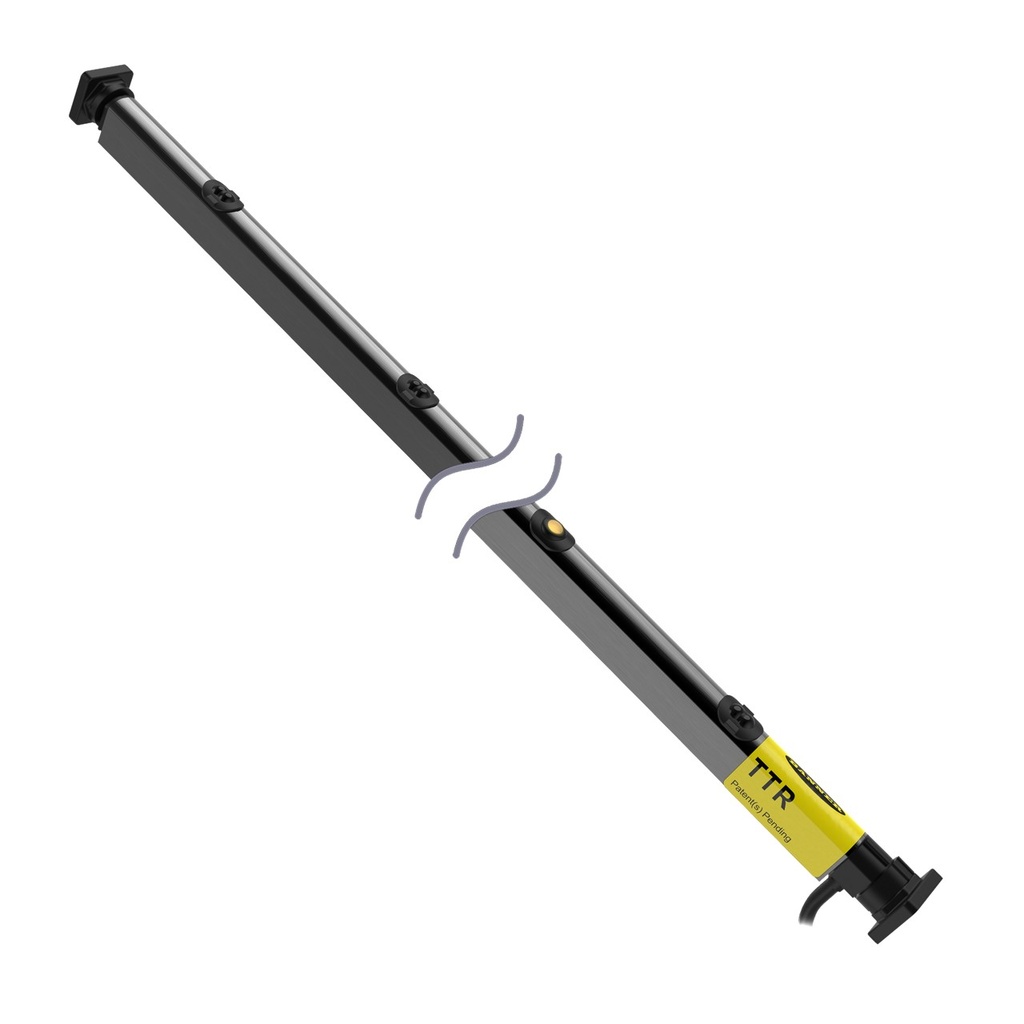

Ttr Series 4 Beam Sensor Array 23.9 Inch Between Frame 24.4 Inch B.F. With Brackets (TTR608RPSC4G-2.0Q3-CTR)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 811449
Weight: 0.8 lb(s)
Features:
- TTR Series 4 Beam Sensor Array 23.9 inch Between Frame 24.4 inch B.F. with brackets; Beam Spacing: 108 mm Range: 120 mm; Output: DO PNP Input: 18
- 30 V dc; 2.0 m (6 ft) M8 male snap connector Endcaps G: Adhesive bracket kit
Ttr Series 4 Beam Sensor Array 23.9 Inch Between Frame 24.4 Inch B.F. With Brackets (TTR608RPSC4G-2.0Q3-CTR)
Brand_Name:Banner
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Lens Material:Polycarbonate
Power Supply:18-30 VDC
Delay at Power-Up:1500 ms
Ingress Protection:IP50
Housing Style:Roller Conveyor
Max Sensing Distance:120 mm
Sensing Mode (Detailed):Diffuse
Beam Spacing:108 mm
Max Relative Humidity:95% @ 55 °C, 95% @ 55 °C
Number of Beams:4
Housing Material_:Black Anodized Aluminum
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M8
Output:PNP
Number of Pins:4
Output Response Time:1 ms
Operation:Dark Operate
Adjustments:N/A
Distance to First Beam:142 mm
Connection Type:Pigtail QD
Country of Origin:MX
Cord/Cable Length:2 m
End Cap Type:G: Adj Hex + Bracket / Spring 11 mm Hex - 8 mm Round + Bracket
Last Beam Distance to End:142.00 mm
Indicator Type:Indicator LED
Max Sensing Range:120 mm
Slot Depth/Array Length (mm):608 mm
Slot Overall Depth (mm):12 mm
Specifications
| Brand_Name | Banner |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Lens Material | Polycarbonate |
| Power Supply | 18-30 VDC |
| Delay at Power-Up | 1500 ms |
| Ingress Protection | IP50 |
| Housing Style | Roller Conveyor |
| Max Sensing Distance | 120 mm |
| Sensing Mode (Detailed) | Diffuse |
| Beam Spacing | 108 mm |
| Max Relative Humidity | 95% @ 55 °C, 95% @ 55 °C |
| Number of Beams | 4 |
| Housing Material_ | Black Anodized Aluminum |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M8 |
| Output | PNP |
| Number of Pins | 4 |
| Output Response Time | 1 ms |
| Operation | Dark Operate |
| Adjustments | N/A |
| Distance to First Beam | 142 mm |
| Connection Type | Pigtail QD |
| Country of Origin | MX |
| Cord/Cable Length | 2 m |
| End Cap Type | G: Adj Hex + Bracket / Spring 11 mm Hex - 8 mm Round + Bracket |
| Last Beam Distance to End | 142.00 mm |
| Indicator Type | Indicator LED |
| Max Sensing Range | 120 mm |
| Slot Depth/Array Length (mm) | 608 mm |
| Slot Overall Depth (mm) | 12 mm |
