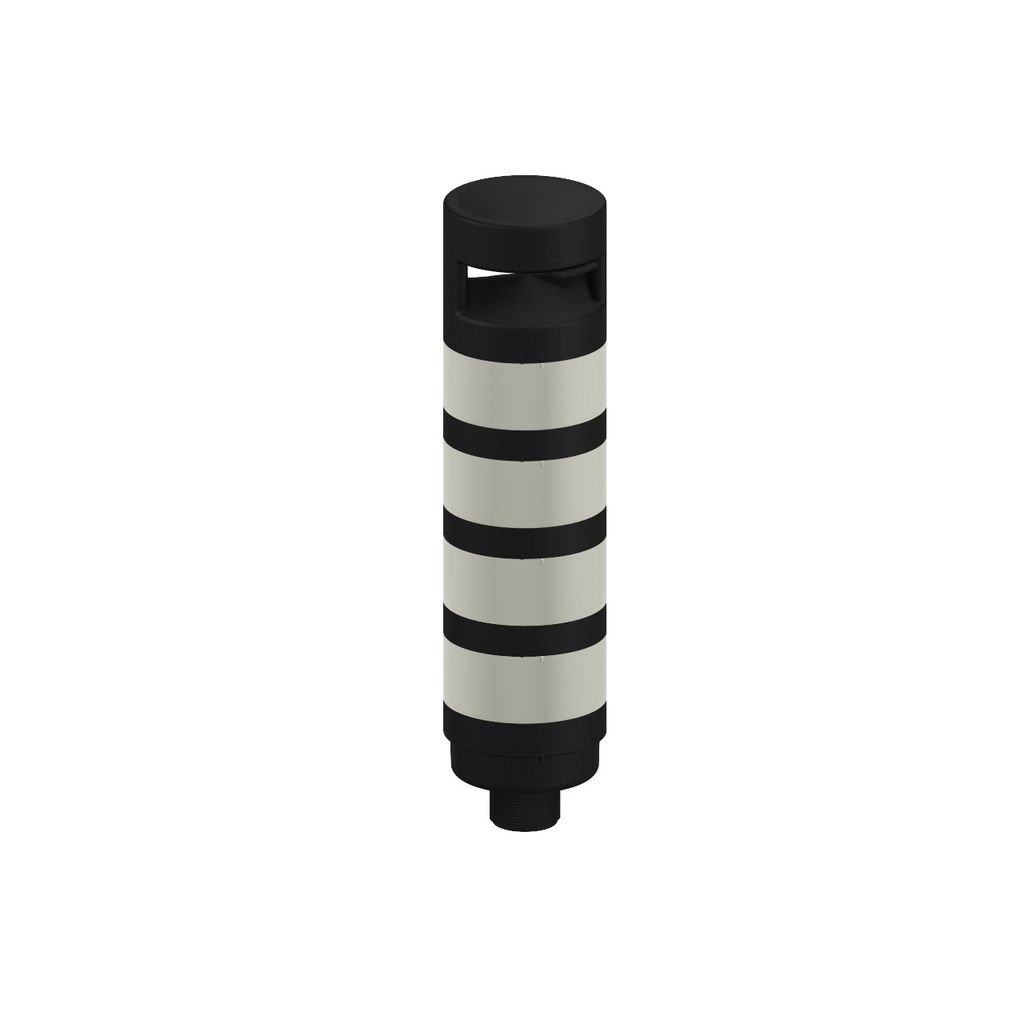

Tl70 Tower Light (TL70GYBRAT)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 811375
Weight: 1.43 lb(s)
Features:
- TL70 Tower Light; Black Housing: 4-Color Audible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: Bimodal; Colors: Green Yellow Blue Red; 8 Screw Terminal Wiring
Tl70 Tower Light (TL70GYBRAT)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:420 mA
Max Current - Audible Alarm (mA):30 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP65
Housing Style:Base Mount - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:70.0 x 318.3 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Blue
Max Audible Intensity:92 dB @ 1 m
Supply Voltage:12-30 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:No
Lumens Color 1:92
Animation Option 3:Dip-Switch Controlled
Min Audible Intensity @ 1m:84 dB
Color Technology:Standard LED
Feature: Audible:Yes
Color Option 1:Green
Animation Option 2:Dip-Switch Controlled
Color 1 - Wavelength/Color Temp/Coordinates:525 nm
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Dip-Switch Controlled
Audible Operating Frequency (kHz):2.6
Number of Colors / Segments:4
Color 3 - Wavelength/Color Temp/Coordinates:470 nm
Lumens Color 2:22
Lumens Color 3:32
Product Size (mm):70 mm
Color 2 - Wavelength/Color Temp/Coordinates:590 nm
Number of Input Pins/Conductors:8
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):180 ms
Feature: Chemical Resistant:No
Audible Alarm Type:Multitone
Storage Temp:-40 to 70 °C
Color Option 4:Red
Color 4 - Wavelength/Color Temp/Coordinates:625 nm
Lumens Color 4:40
Number of Tower Light Segments:5
Animation Option 4:Dip-Switch Controlled
Connection Type:Terminal
Country of Origin:MX
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 420 mA |
| Max Current - Audible Alarm (mA) | 30 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65 |
| Housing Style | Base Mount - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 70.0 x 318.3 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Blue |
| Max Audible Intensity | 92 dB @ 1 m |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 92 |
| Animation Option 3 | Dip-Switch Controlled |
| Min Audible Intensity @ 1m | 84 dB |
| Color Technology | Standard LED |
| Feature: Audible | Yes |
| Color Option 1 | Green |
| Animation Option 2 | Dip-Switch Controlled |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Dip-Switch Controlled |
| Audible Operating Frequency (kHz) | 2.6 |
| Number of Colors / Segments | 4 |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 2 | 22 |
| Lumens Color 3 | 32 |
| Product Size (mm) | 70 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Number of Input Pins/Conductors | 8 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 180 ms |
| Feature: Chemical Resistant | No |
| Audible Alarm Type | Multitone |
| Storage Temp | -40 to 70 °C |
| Color Option 4 | Red |
| Color 4 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 4 | 40 |
| Number of Tower Light Segments | 5 |
| Animation Option 4 | Dip-Switch Controlled |
| Connection Type | Terminal |
| Country of Origin | MX |
