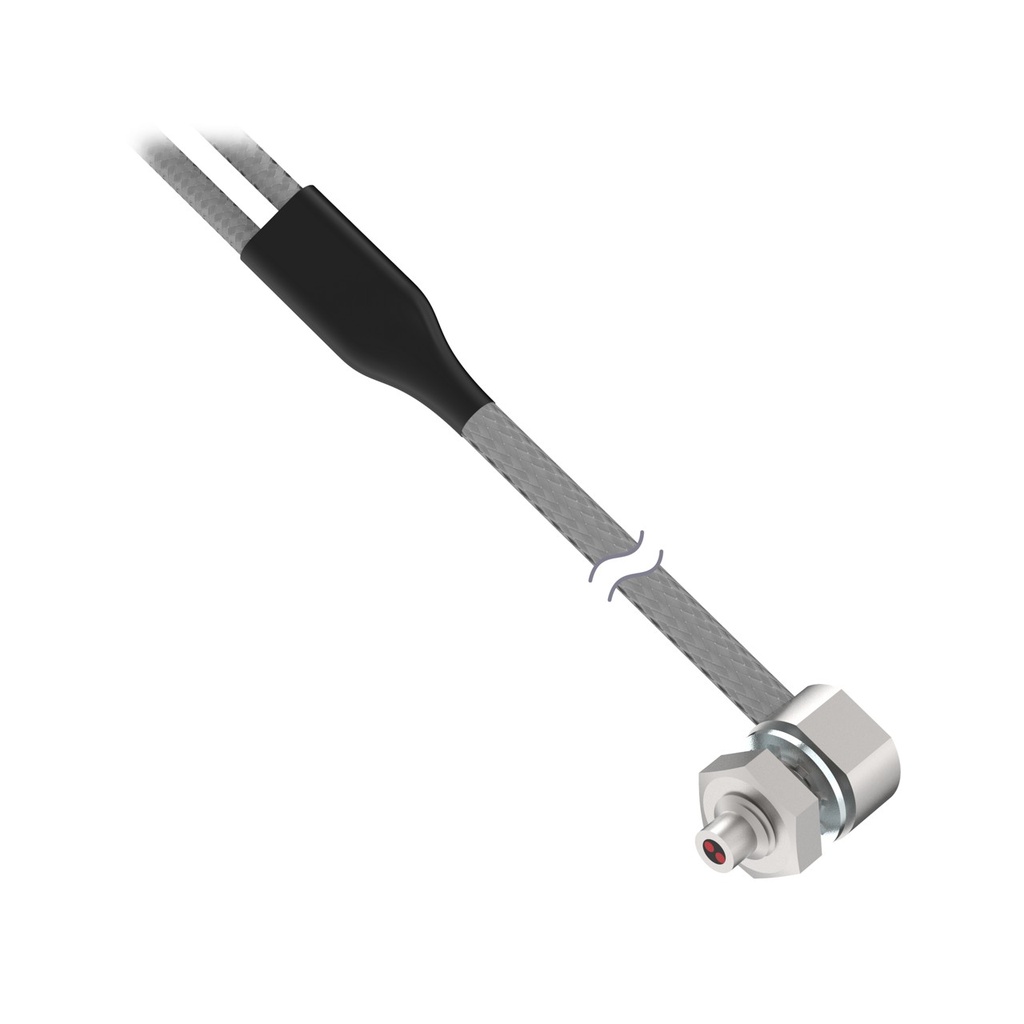

Plastic Fiber, Diffuse Reflective (PBAT415TMB5MTA)
Max Operating Temperature:70 °C
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Angle
Tariff Fiber Meters:9.144 fbm
Min Bend Radius:12 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:4.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):Steelskin
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M6
Fiber Length:4.572 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Thread
Beam Exit:Right Angle
Feature: Liquid Level:No
Min Hinged Door Size:12 mm
Min Repeat Bending Endurance:1000
Country of Origin:US
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:12 mm
Specifications
| Max Operating Temperature | 70 °C |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Angle |
| Tariff Fiber Meters | 9.144 fbm |
| Min Bend Radius | 12 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 4.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | Steelskin |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Length | 4.572 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Thread |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 12 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | US |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 12 mm |
