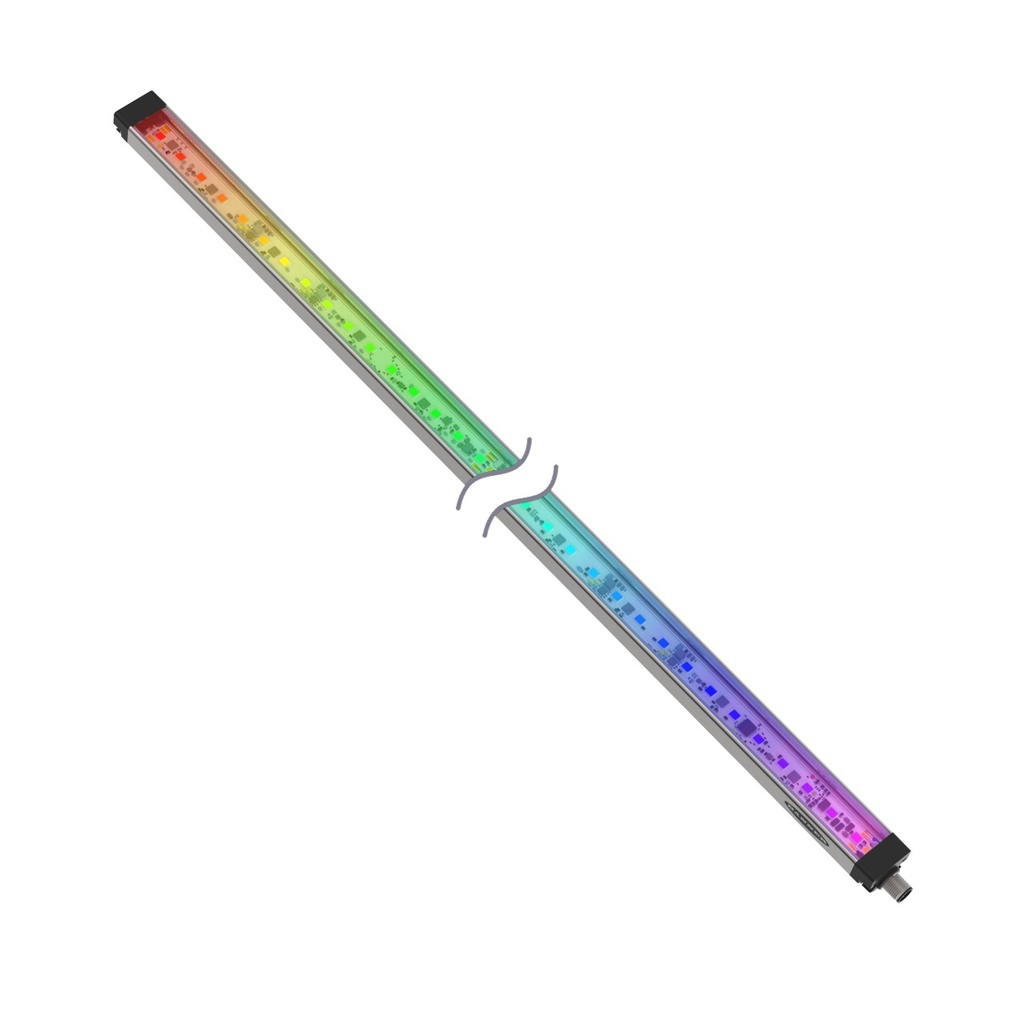

Wls28 Pro Light Strip With Io-Link (WLS28PXRGBW570XKQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 810998
Weight: 1.4 lb(s)
Features:
- WLS28 Pro Light Strip with IO-Link; Clear Window; Length: 570 mm; Voltage: 18-30 V dc; Environmental Rating: IP50; Color: RGBW; Non-Cascadable; Euro 4-pin Quick Disconnect
Wls28 Pro Light Strip With Io-Link (WLS28PXRGBW570XKQ)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:1100 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Ingress Protection:IP50
Housing Style:Linear Strip
Housing Material_:Aluminum
Feature: Hazardous Area:No
Feature: IO Link:Yes
Feature: Modbus RTU:No
Physical Dimensions:608.0 x 28.0 x 20.9 mm
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:18-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:RGB IO-Link
Feature: Audible:No
Color Option 1:RGBW
Color Input Control:Communication Protocol
Multi-Color Device:Simultaneous Colors On
Animation Option 1:IO-Link Controlled
Quick Disconnect Type:M12
Number of Colors / Segments:Programmable
Product Size (mm):28 mm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Wire Selectable Function:Programmable
Dimming Option:IO-Link Controlled
Number of Tower Light Segments:Programmable
Indication Intensity:High Brightness & Daylight Visible
Illuminated Length (LxWxH):570 mm
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:MX
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 1100 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP50 |
| Housing Style | Linear Strip |
| Housing Material_ | Aluminum |
| Feature: Hazardous Area | No |
| Feature: IO Link | Yes |
| Feature: Modbus RTU | No |
| Physical Dimensions | 608.0 x 28.0 x 20.9 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 18-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | RGB IO-Link |
| Feature: Audible | No |
| Color Option 1 | RGBW |
| Color Input Control | Communication Protocol |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | Programmable |
| Product Size (mm) | 28 mm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Wire Selectable Function | Programmable |
| Dimming Option | IO-Link Controlled |
| Number of Tower Light Segments | Programmable |
| Indication Intensity | High Brightness & Daylight Visible |
| Illuminated Length (LxWxH) | 570 mm |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | MX |
