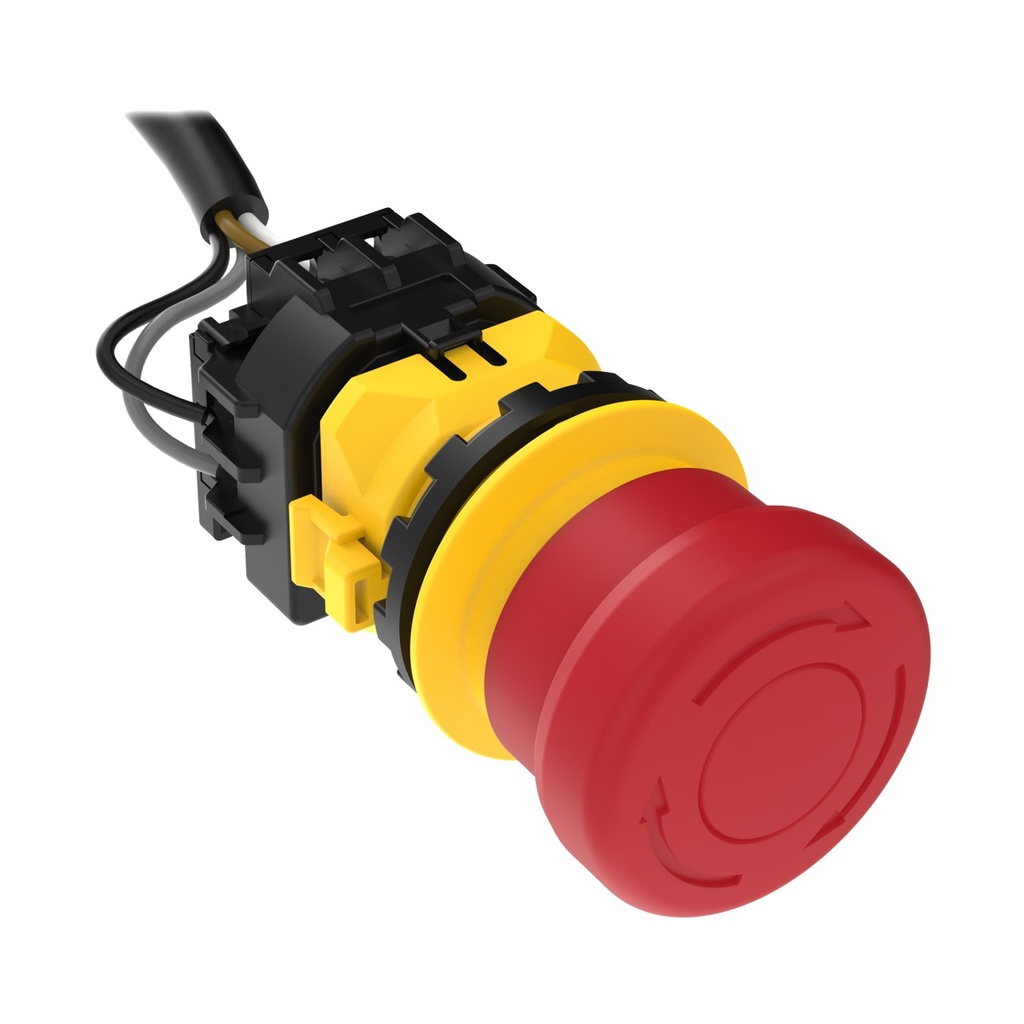

Representative photo. Please check item description for details.
Ssa-Eb1 Panel-Mount Emergency Stop Push Button (SSA-EB1P-02-A01)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 810952
Weight: 0.2 lb(s)
On Hand: 0
Features:
- SSA-EB1 Panel-mount Emergency Stop Push Button; ISD Connect Compatible; 40 mm Actuator; Contacts: 2NC; M12 QD Pigtail; 30 mm Mounting Hole
Ssa-Eb1 Panel-Mount Emergency Stop Push Button (SSA-EB1P-02-A01)
Valve: Actuation:Twist/Pull-to-Release
Min Operating Temperature:-25 °C
Max Operating Temperature:60 °C
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:81 x 37 x 40 mm
Feature: Quick Disconnect:Yes
Contact Quantity:2 NC
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 24 VDC
Mounting Thread/Style:Panel
Feature: Illuminated:No
Feature: Lockable:No
Connection Type:M12
Country of Origin:US
Button Diameter:40 mm
Feature: Button Shroud:No
Feature: ISD Connect Compatible:Yes
Feature: Actuation:Twist/Pull-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist/Pull-to-Release |
| Uncategorized | |
|---|---|
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 81 x 37 x 40 mm |
| Feature: Quick Disconnect | Yes |
| Contact Quantity | 2 NC |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 24 VDC |
| Mounting Thread/Style | Panel |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Connection Type | M12 |
| Country of Origin | US |
| Button Diameter | 40 mm |
| Feature: Button Shroud | No |
| Feature: ISD Connect Compatible | Yes |
| Feature: Actuation | Twist/Pull-to-Release |
