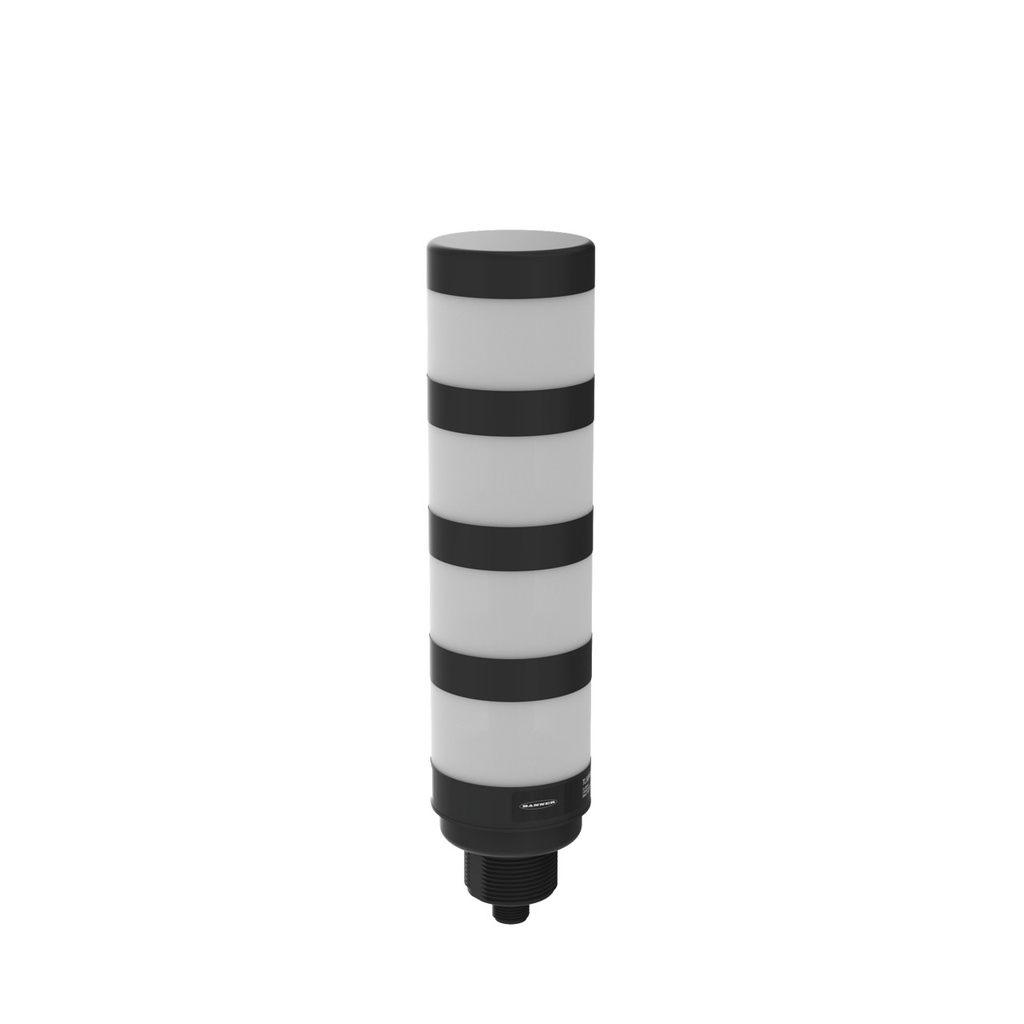

Tl50 Pro Select With Io-Link Tower Light (TL50PS4KQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 810617
Weight: 0.56 lb(s)
Features:
- TL50 Pro Select with IO-Link Tower Light; 4 Segment; Voltage: 18-30V dc; Environ. Rating: IP65; Multicolor Programmable; 4-Pin M12 Quick Disconnect
Tl50 Pro Select With Io-Link Tower Light (TL50PS4KQ)
Power:DC
Feature: Display:No
Max Current Color:62 mA
Max Current - Audible Alarm (mA):45 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Ingress Protection:IP65
Housing Style:Base Mount - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: IO Link:Yes
Feature: Indication:Yes
Supply Voltage:18-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:RGB IO-Link
Feature: Audible:No
Housing Color:Black
Color Input Control:Communication Protocol
Multi-Color Device:Simultaneous Colors On
Animation Option 1:IO-Link Controlled
Quick Disconnect Type:M12
Number of Colors / Segments:4
Number of Input Pins/Conductors:4
Input Type:Communication Protocol
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):20 ms
Dimming Option:Programmable
Number of Tower Light Segments:4
Connection Type:Integral QD
Country of Origin:MX
NEMA / UL:NEMA 4X
Specifications
| Power | DC |
| Feature: Display | No |
| Max Current Color | 62 mA |
| Max Current - Audible Alarm (mA) | 45 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP65 |
| Housing Style | Base Mount - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: IO Link | Yes |
| Feature: Indication | Yes |
| Supply Voltage | 18-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | RGB IO-Link |
| Feature: Audible | No |
| Housing Color | Black |
| Color Input Control | Communication Protocol |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 4 |
| Number of Input Pins/Conductors | 4 |
| Input Type | Communication Protocol |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 20 ms |
| Dimming Option | Programmable |
| Number of Tower Light Segments | 4 |
| Connection Type | Integral QD |
| Country of Origin | MX |
| NEMA / UL | NEMA 4X |
