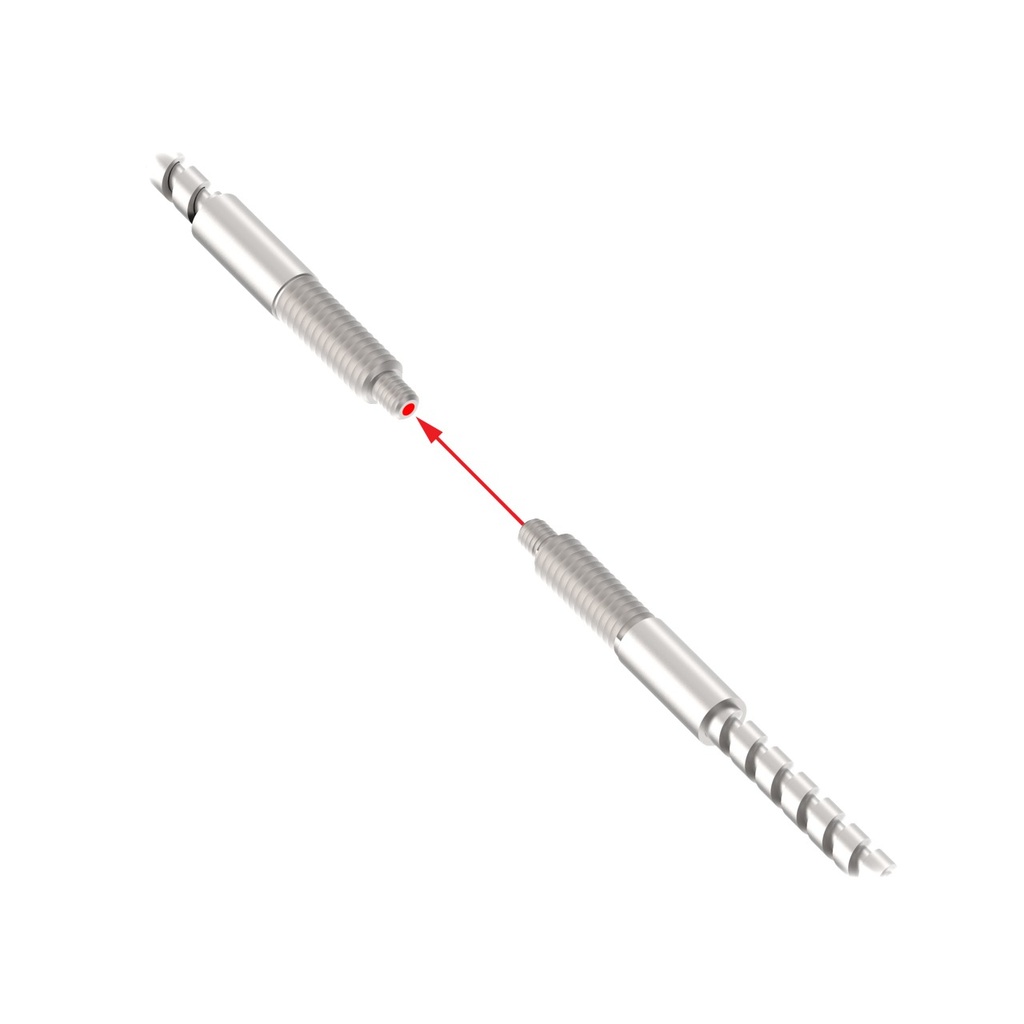

Glass Fiber Opposed Mode .61 M Long (IMT.752S-HT)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 810004
Weight: 0.1 lb(s)
Features:
- Glass Fiber Opposed Mode .61 m long; 1.27 mm dia. Bundle; Stainless Steel Sheath; M4 & M2.5 Thread; Terminated for use in Plastic Fiber Sensors; Max. Operating Temperature 315C at Threaded Tip
Glass Fiber Opposed Mode .61 M Long (IMT.752S-HT)
Max Operating Temperature:315 °C
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:316 fbm
Measured Max Distance:1118 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:M2.5
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1.3 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M4
Fiber Length:.61 m
Fiber Optic Type:Glass
Sensing End Segment 2:Thread
Beam Exit:In-line
Feature: Liquid Level:No
Min Hinged Door Size:25 mm
Country of Origin:US
Max Distance: DF-G1:760 mm
Max Distance: DF-G3:No Data
Minimum Bend Radius:25 mm
Specifications
| Max Operating Temperature | 315 °C |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 316 fbm |
| Measured Max Distance | 1118 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | M2.5 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.3 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M4 |
| Fiber Length | .61 m |
| Fiber Optic Type | Glass |
| Sensing End Segment 2 | Thread |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 25 mm |
| Country of Origin | US |
| Max Distance: DF-G1 | 760 mm |
| Max Distance: DF-G3 | No Data |
| Minimum Bend Radius | 25 mm |
