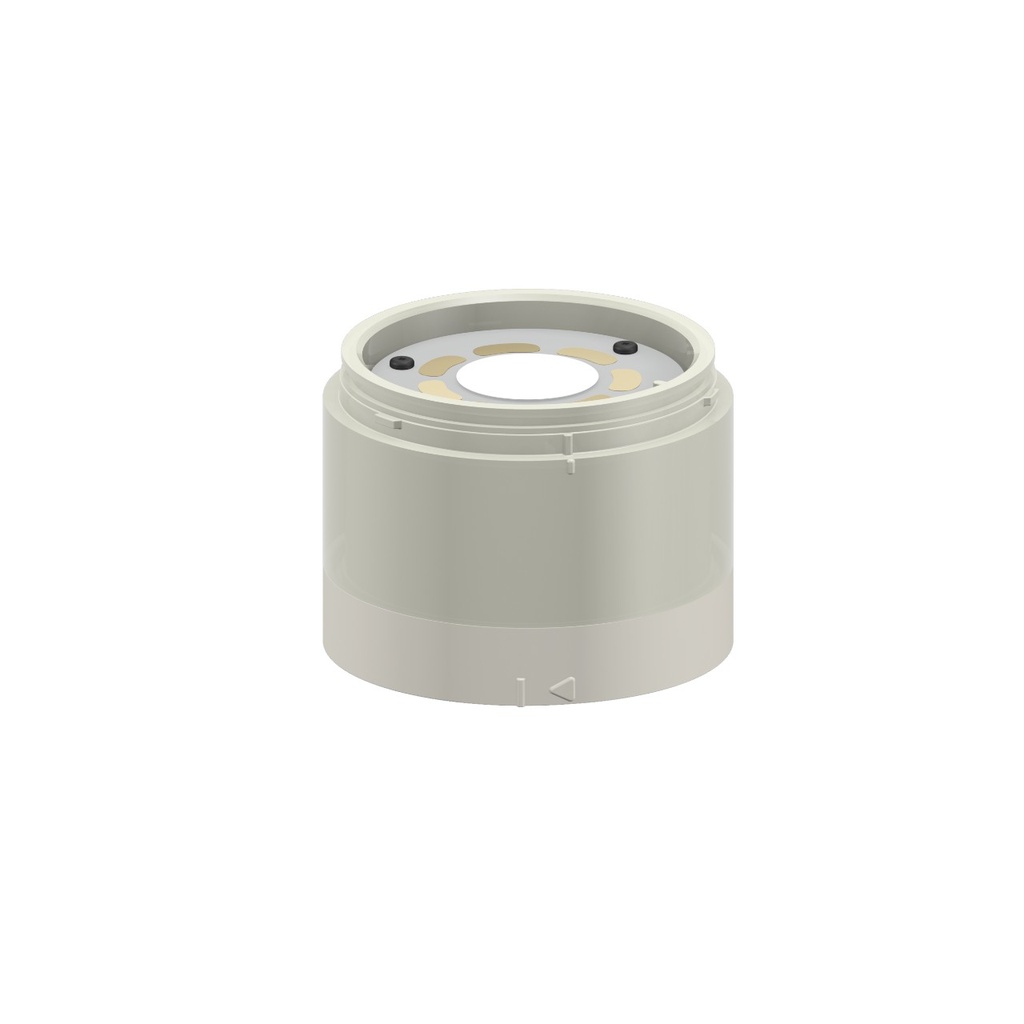

Tl70 Light Module (SG-TL70-RGB14C-MANOS)
Power:AC or DC
Feature: Display:No
Max Current Color:350 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C, 50 °C
Power Source:VDC or VAC
Ingress Protection:IP65
Housing Style:Segment - Light
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:70.0 x 50.0 mm
Feature: Wireless:No
Feature: Indication:Yes
Feature: Quick Disconnect:No
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:RGB
Housing Color:Gray
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Dip-Switch Controlled
Number of Colors / Segments:14
Product Size (mm):70 mm
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Max Input Response Time (ms):50 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Dimming Option:Dip-Switch Controlled
Number of Tower Light Segments:1
Country of Origin:US
Cord/Cable Length:150 mm
Specifications
| Power | AC or DC |
| Feature: Display | No |
| Max Current Color | 350 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C, 50 °C |
| Power Source | VDC or VAC |
| Ingress Protection | IP65 |
| Housing Style | Segment - Light |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 70.0 x 50.0 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Feature: Quick Disconnect | No |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | RGB |
| Housing Color | Gray |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Dip-Switch Controlled |
| Number of Colors / Segments | 14 |
| Product Size (mm) | 70 mm |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Max Input Response Time (ms) | 50 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Dimming Option | Dip-Switch Controlled |
| Number of Tower Light Segments | 1 |
| Country of Origin | US |
| Cord/Cable Length | 150 mm |
