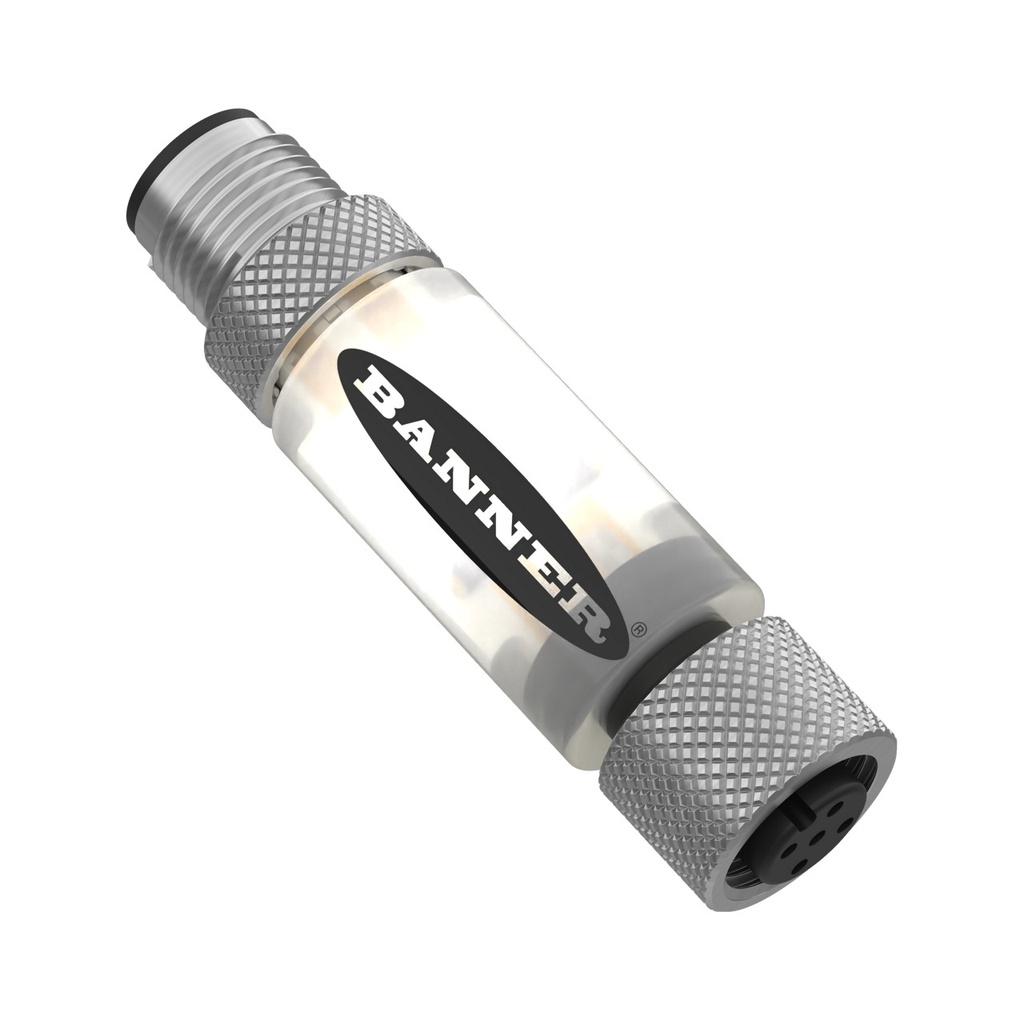

S15Wl Series: 1-Color In-Line Illuminator (S15WLWQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 809919
Weight: 0.05 lb(s)
Features:
- S15WL Series: 1-Color In-Line illuminator; Voltage: 24 V dc; Housing: PVC; IP67; Colors: Cool White; Male-Female Euro 4-pin Quick-Disconnect Connecto
S15Wl Series: 1-Color In-Line Illuminator (S15WLWQ)
Power:DC
Feature: Display Lighting:No
Max Current Color:55 mA
Power Source:VDC
Ingress Protection:IP65/67/68
Housing Style:Inline
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:15.0 X 58.0 mm
Feature: Wireless:No
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Lumens Color 1:80
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:White
Color 1 - Wavelength/Color Temp/Coordinates:6500K
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12 (Euro)
Number of Colors / Segments:1
Product Size (mm):15 mm
Number of Input Pins/Conductors:4
Input Type:PNP
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Connection:Integral QD
Country of Origin:TW
Specifications
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 55 mA |
| Power Source | VDC |
| Ingress Protection | IP65/67/68 |
| Housing Style | Inline |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 15.0 X 58.0 mm |
| Feature: Wireless | No |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 80 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 (Euro) |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 15 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | PNP |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Connection | Integral QD |
| Country of Origin | TW |
