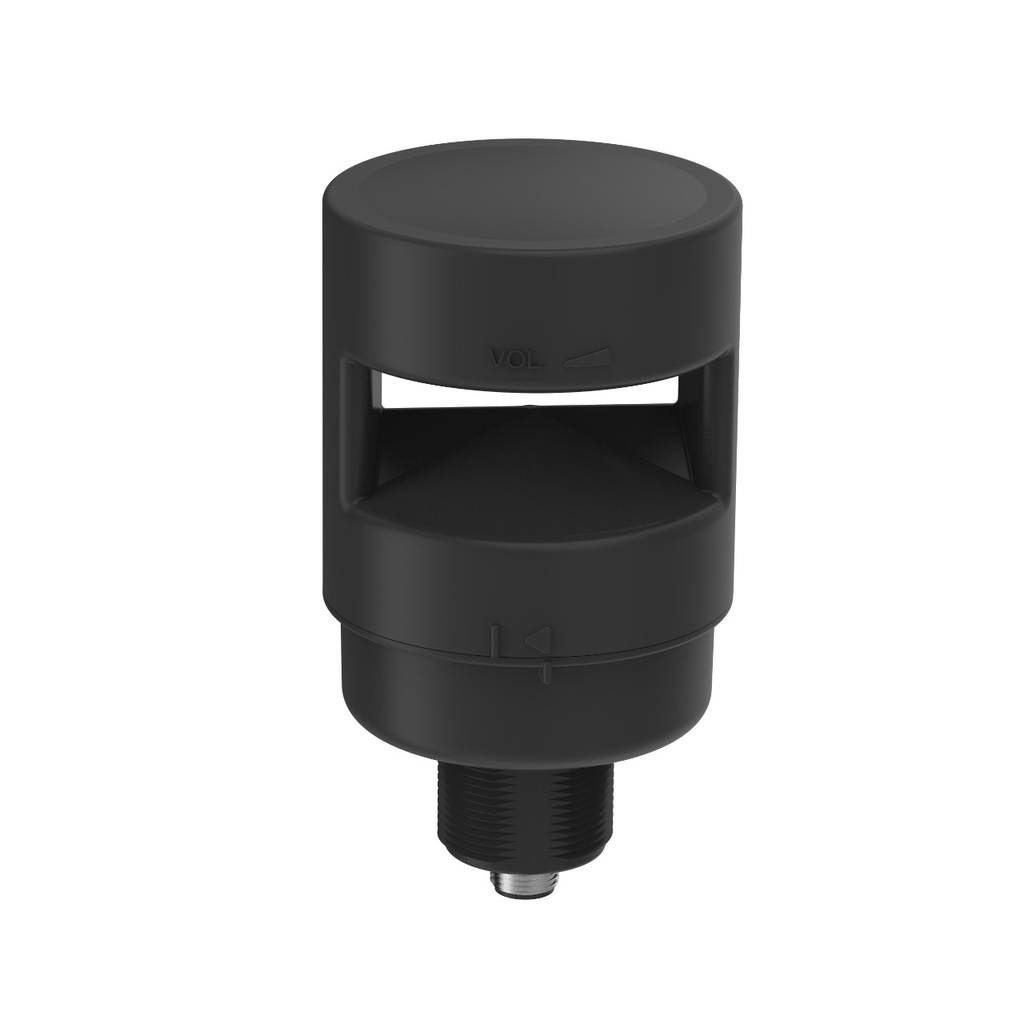

Tl70 Tower Light (TL70ALMQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 809775
Weight: 0.6 lb(s)
Features:
- TL70 Tower Light; Black Housing: Multitone Audible Indicator Only; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: Bimodal; Adjustable to 101 db; Multitones; 4 tones; Euro 5-pin Integral Connector
Tl70 Tower Light (TL70ALMQ)
Power:DC
Feature: Display:No
Max Current Color:420 mA
Max Current - Audible Alarm (mA):270 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP65
Housing Style:Base Mount - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:70.0 x 119.5 mm
Feature: Wireless:No
Feature: Indication:Yes
Max Audible Intensity:101 dB @ 1 m
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Min Audible Intensity @ 1m:75 dB
Color Technology:Standard LED
Feature: Audible:Audible Only
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Quick Disconnect Type:M12
Audible Operating Frequency (kHz):2.6
Product Size (mm):70 mm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):180 ms
Feature: Chemical Resistant:No
Audible Alarm Type:Multitone Loud Audible
Storage Temp:-40 to 70 °C
Number of Tower Light Segments:1
Feature: Non-Illuminated:Yes
Connection Type:Integral QD
Country of Origin:CN
Specifications
| Power | DC |
| Feature: Display | No |
| Max Current Color | 420 mA |
| Max Current - Audible Alarm (mA) | 270 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65 |
| Housing Style | Base Mount - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 70.0 x 119.5 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Max Audible Intensity | 101 dB @ 1 m |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Min Audible Intensity @ 1m | 75 dB |
| Color Technology | Standard LED |
| Feature: Audible | Audible Only |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Quick Disconnect Type | M12 |
| Audible Operating Frequency (kHz) | 2.6 |
| Product Size (mm) | 70 mm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 180 ms |
| Feature: Chemical Resistant | No |
| Audible Alarm Type | Multitone Loud Audible |
| Storage Temp | -40 to 70 °C |
| Number of Tower Light Segments | 1 |
| Feature: Non-Illuminated | Yes |
| Connection Type | Integral QD |
| Country of Origin | CN |
