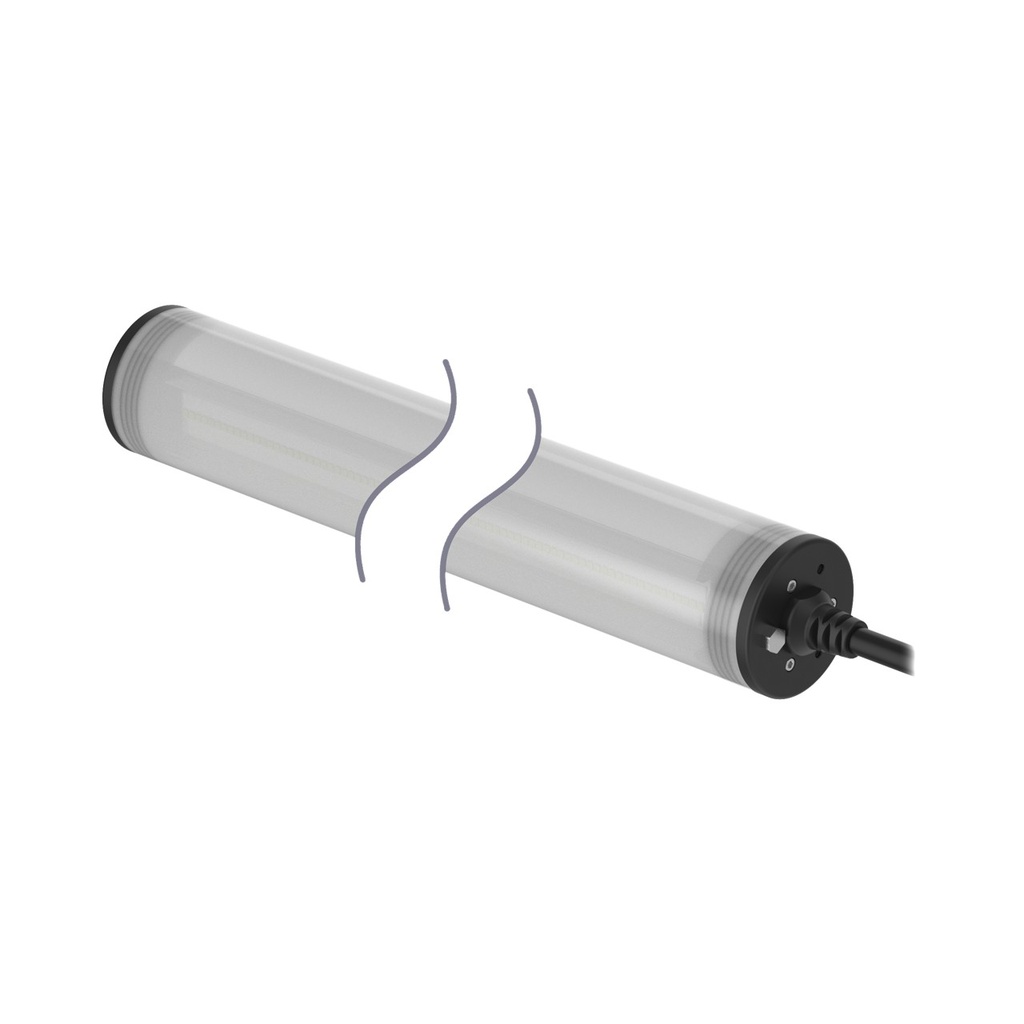

Wls70 Sealed Work Light (WLS70ZXW900DA)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 809466
Weight: 8.65 lb(s)
Features:
- WLS70 Sealed Work Light; Length: 900 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2m (6.5 ft) Cable
Wls70 Sealed Work Light (WLS70ZXW900DA)
Power:AC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:320 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VAC
Ingress Protection:IP65
Housing Style:Linear Strip
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:68.5 x 965.3 mm
Feature: Wireless:No
Supply Voltage:100-277 VAC
Feature: Quick Disconnect:No
Lumens Color 1:4050
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Daylight White
Color 1 - Wavelength/Color Temp/Coordinates:5000K (Daylight)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Number of Colors / Segments:1
Product Size (mm):70 mm
Number of Input Pins/Conductors:5
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Dimming Option:0 to 10 VDC
Secondary Material:Metal
Illuminated Length (LxWxH):898 mm
Feature: Illumination:Yes
Connection Type:Cable
Country of Origin:MX
Cord/Cable Length:2 m
Specifications
| Power | AC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 320 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VAC |
| Ingress Protection | IP65 |
| Housing Style | Linear Strip |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 68.5 x 965.3 mm |
| Feature: Wireless | No |
| Supply Voltage | 100-277 VAC |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 4050 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Daylight White |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 70 mm |
| Number of Input Pins/Conductors | 5 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Dimming Option | 0 to 10 VDC |
| Secondary Material | Metal |
| Illuminated Length (LxWxH) | 898 mm |
| Feature: Illumination | Yes |
| Connection Type | Cable |
| Country of Origin | MX |
| Cord/Cable Length | 2 m |
