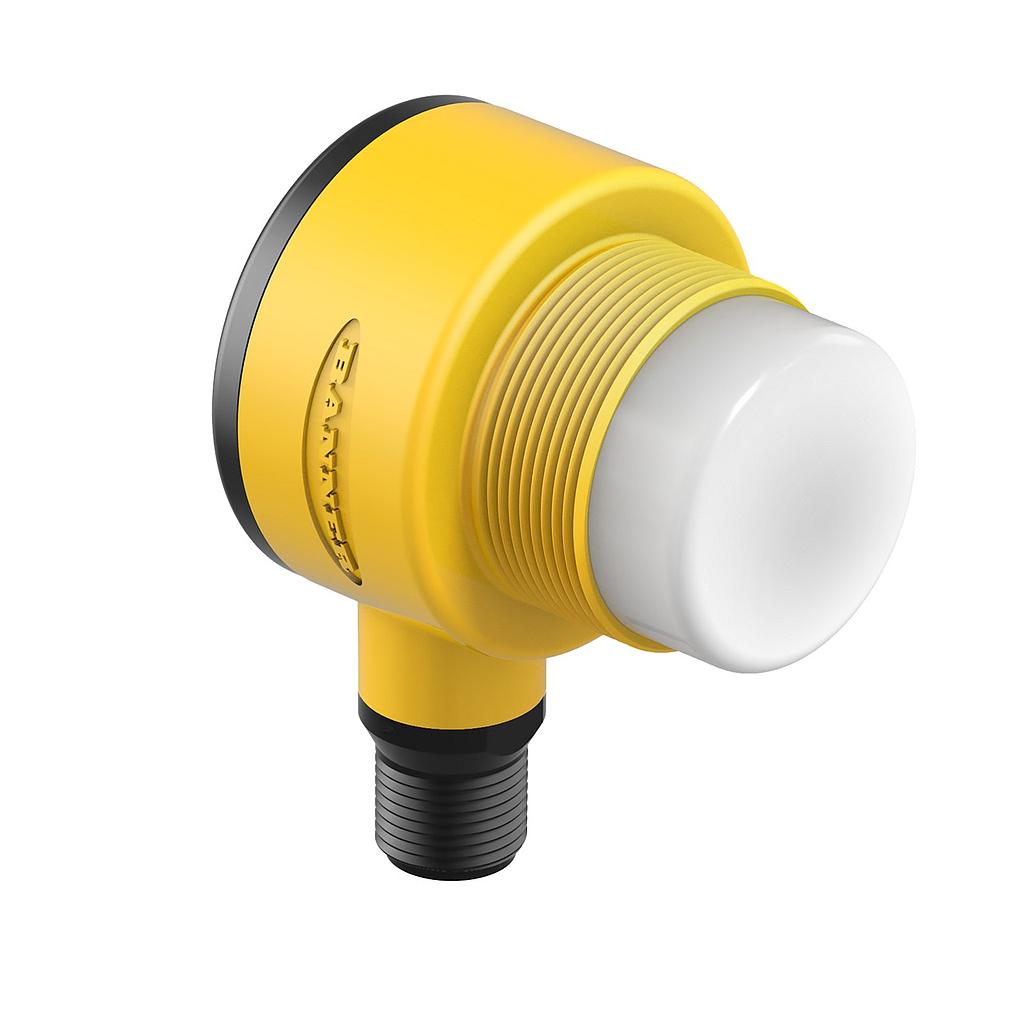

T30R R-GAGE Series Radar Sensor (T30R-1515-KIQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 808895
Weight: 0.2 lb(s)
T30R R-GAGE Series Radar Sensor
Features:
- T30R R-GAGE Series Radar Sensor
- Range 15 m
- Input 10-30 V dc
- 4-20 mA Analog, 1 NPN/PNP Configurable with IO Link
- 5 Pin M12 Quick Disconnect
T30R R-GAGE Series Radar Sensor (T30R-1515-KIQ)
T30R R-GAGE Series Radar Sensor
Measurement Maximum:0
Max Off-State Leakage Current (µA):<40 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Analog Current Output Rating:1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Min Operating Temperature:-40 °C
Max Operating Temperature:65 °C
Power/Current Consumption (exclusive of load):100 mA max @ 24 V dc
Power Supply:10-30 VDC
Delay at Power-Up:300 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Barrel
Max Sensing Distance:15000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:PBT
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Analog Output:4 to 20 mA
Feature: IO Link:Yes
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Software; Push Button; Remote Teach
Feature: Timing (Hold/Delay):Yes
Input/Output:Analog & Discrete
Barrel Diameter:30
Min Response Time:6 ms
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock:MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
Output Saturation Voltage PNP Outputs:< 3 V @ 50 mA
Analog Resolution/Discrete Repeatability:< 1 mm at Excess Gain >= 10x < 10 mm at Excess Gain < 10x
Max Discrete (Switched) Output (mA):50
Min Sensing Distance:150 mm
Feature: Clear Object Detection:Yes
Min Window Size:20 mm
Remote Teach and Laser Control Input Impedence:55 kΩ
Discrete (Switched) Outputs:1 NPN/PNP Configurable
Max Measurement Range:5-20 m
Output Protection:Protected against short circuit
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<3 V @ 50 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Operating Frequency:122 GHz
Connection Type:Integral QD
Country of Origin:US
Barrel Thread:M30
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:Yes
Radar Beam Pattern (H x V °):15 x 15
Indicator Type:LED
Discrete Output Hysteresis:50 - 15000 mm, Manual Adjust
Specifications
| Measurement Maximum | 0 |
| Max Off-State Leakage Current (µA) | <40 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP) |
| Analog Current Output Rating | 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Power/Current Consumption (exclusive of load) | 100 mA max @ 24 V dc |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 300 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Barrel |
| Max Sensing Distance | 15000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | PBT |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Analog Output | 4 to 20 mA |
| Feature: IO Link | Yes |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Software; Push Button; Remote Teach |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Analog & Discrete |
| Barrel Diameter | 30 |
| Min Response Time | 6 ms |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Mechanical Shock | MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation). |
| Output Saturation Voltage PNP Outputs | < 3 V @ 50 mA |
| Analog Resolution/Discrete Repeatability | < 1 mm at Excess Gain >= 10x < 10 mm at Excess Gain < 10x |
| Max Discrete (Switched) Output (mA) | 50 |
| Min Sensing Distance | 150 mm |
| Feature: Clear Object Detection | Yes |
| Min Window Size | 20 mm |
| Remote Teach and Laser Control Input Impedence | 55 kΩ |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Measurement Range | 5-20 m |
| Output Protection | Protected against short circuit |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <3 V @ 50 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Operating Frequency | 122 GHz |
| Connection Type | Integral QD |
| Country of Origin | US |
| Barrel Thread | M30 |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | Yes |
| Radar Beam Pattern (H x V °) | 15 x 15 |
| Indicator Type | LED |
| Discrete Output Hysteresis | 50 - 15000 mm, Manual Adjust |
