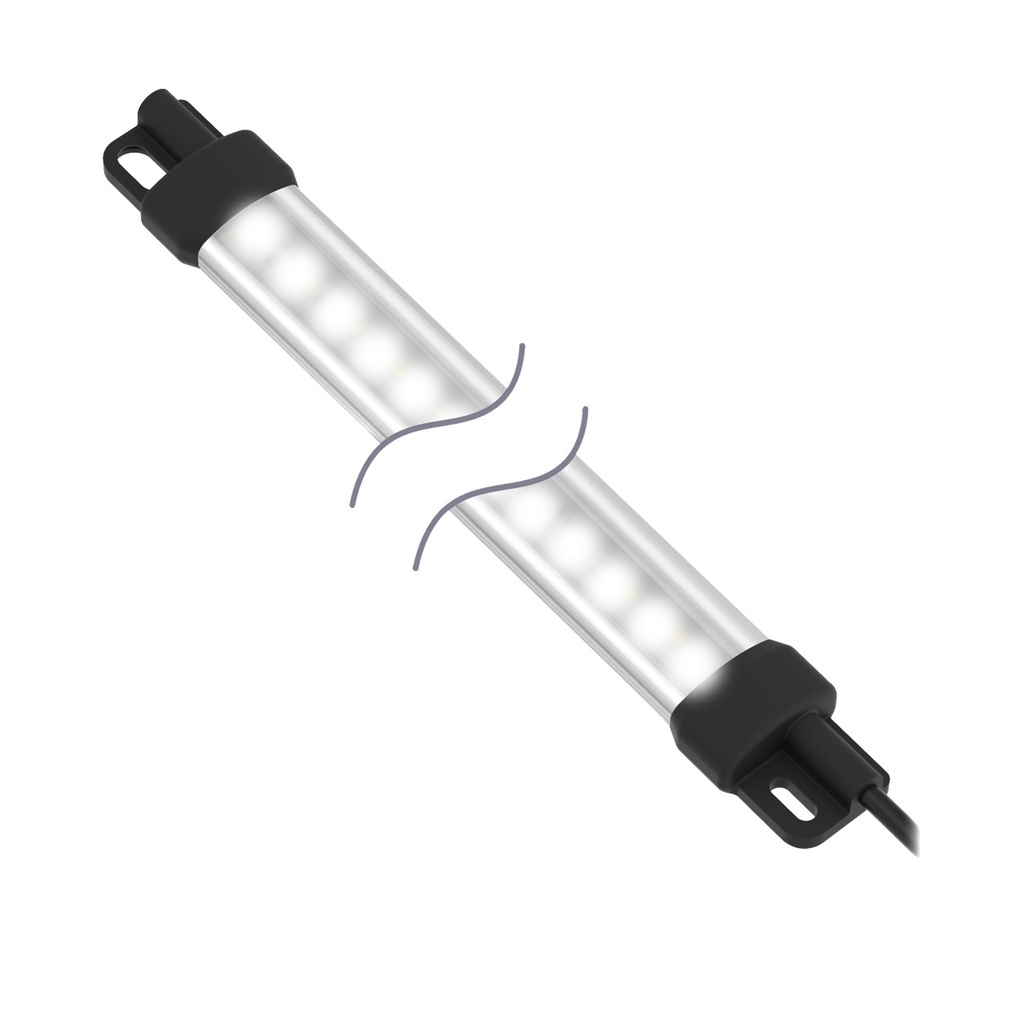

Wls15 Multi-Function Light Strip (WLS15XGYR0360DSQP-808790)
Brand_Name:Banner
Power:DC
Feature: Display:No
Max Current Color:3500 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:60 °C
Ingress Protection:IP66/67
Housing Style:Linear Strip
Housing Material_:Polycarbonate
Feature: Indication:Yes
Color Option 3:Red
Supply Voltage:12-30 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Color 1 - Wavelength/Color Temp/Coordinates:525 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:625 nm
Color 2 - Wavelength/Color Temp/Coordinates:580 nm
Number of Input Pins/Conductors:8
Mounting Thread:No Thread
Storage Temp:-40 to 70 °C
Number of Tower Light Segments:3
Secondary Material:Polyamide
Illuminated Length (LxWxH):286.4 mm
Feature: Illumination:Yes
Connection Type:Pigtail QD
Country of Origin:MX
Cord/Cable Length:0.3 m
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Max Current Color | 3500 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Ingress Protection | IP66/67 |
| Housing Style | Linear Strip |
| Housing Material_ | Polycarbonate |
| Feature: Indication | Yes |
| Color Option 3 | Red |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 580 nm |
| Number of Input Pins/Conductors | 8 |
| Mounting Thread | No Thread |
| Storage Temp | -40 to 70 °C |
| Number of Tower Light Segments | 3 |
| Secondary Material | Polyamide |
| Illuminated Length (LxWxH) | 286.4 mm |
| Feature: Illumination | Yes |
| Connection Type | Pigtail QD |
| Country of Origin | MX |
| Cord/Cable Length | 0.3 m |
