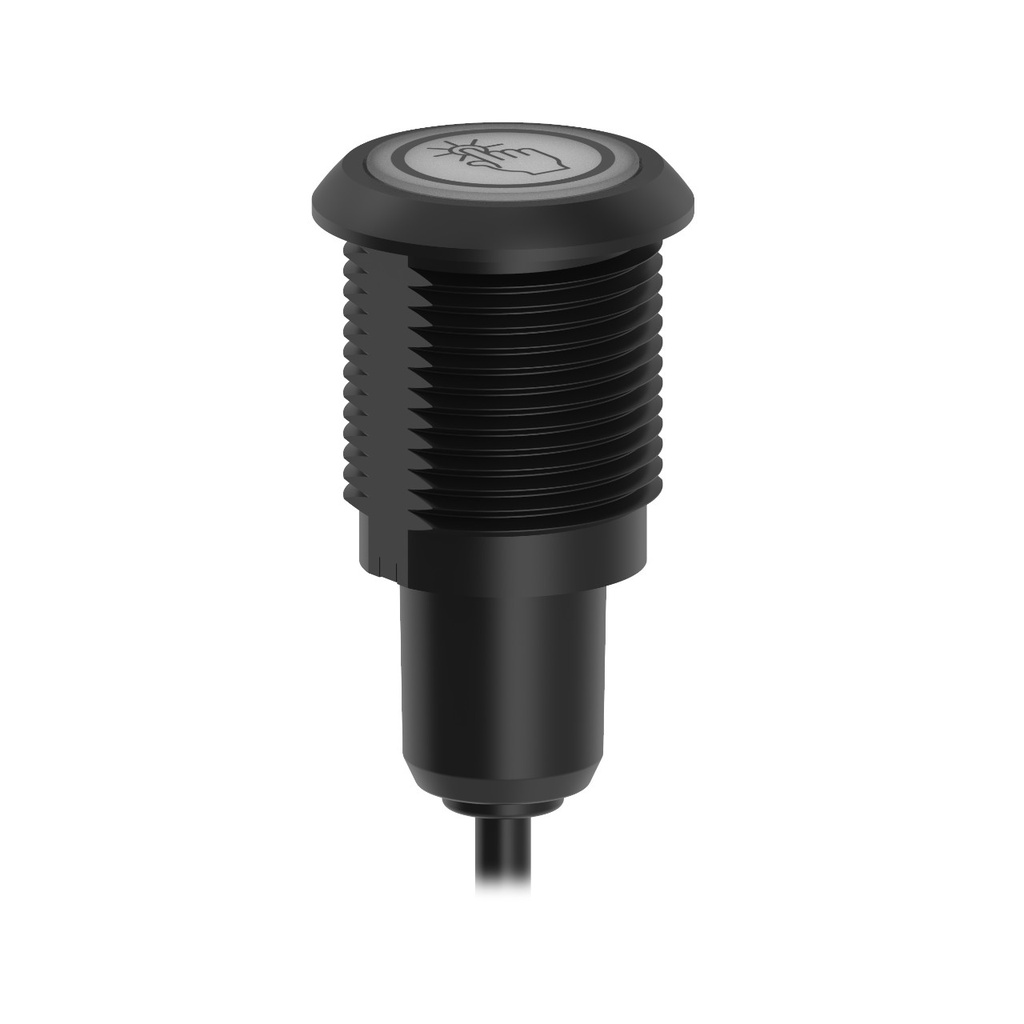

S22 Pro Series: 7-Color Rgb Indicator (S22L2SRGB7-808523)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 808523
Weight: 0.2 lb(s)
Features:
- S22 Pro Series: 7-color RGB Indicator; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: Bimodal; Colors: Multicolor; 2 m (6ft) Cable; Preset to Medium Brightness
S22 Pro Series: 7-Color Rgb Indicator (S22L2SRGB7-808523)
Power:DC
Feature: Display Lighting:No
Max Current Color:70 mA
Power Source:VDC
Ingress Protection:IP66/67/69
Housing Style:Barrel Mount - Flat Window
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.3 x 47.8 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Blue
Supply Voltage:10-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:No
Lumens Color 1:0.4
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 7:Cyan
Color Option 1:Red
Color 1 - Wavelength/Color Temp/Coordinates:625 nm
Housing Color:Black
Color Input Control:Multiple (One or more wires/color, enables more colors than input wires)
Multi-Color Device:Single Color On
Number of Colors / Segments:7
Color 3 - Wavelength/Color Temp/Coordinates:465 nm
Lumens Color 2:0.9
Lumens Color 3:0.15
Product Size (mm):22 mm
Color 2 - Wavelength/Color Temp/Coordinates:527 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:M22 x 1.5
Max Input Response Time (ms):250 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Color Option 4:Yellow
Color 4 - Wavelength/Color Temp/Coordinates:571 nm
Color 6 - Wavelength/Color Temp/Coordinates:0.345, 0.161
Color Option 5:White
Color 5 - Wavelength/Color Temp/Coordinates:5700K
Lumens Color 5:2.5
Color 7 - Wavelength/Color Temp/Coordinates:492 nm
Lumens Color 4:2.5
Lumens Color 6:1.2
Lumens Color 7:2
Wire Selectable Function:Flashing
Color Option 6:Magenta
Feature: I/O Block Compatible:Yes
Connection:Cable
Cord/Cable Length:2 m
Max Input Response Time:250 ms
Specifications
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 70 mA |
| Power Source | VDC |
| Ingress Protection | IP66/67/69 |
| Housing Style | Barrel Mount - Flat Window |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 27.3 x 47.8 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Blue |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 0.4 |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 7 | Cyan |
| Color Option 1 | Red |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Housing Color | Black |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Multi-Color Device | Single Color On |
| Number of Colors / Segments | 7 |
| Color 3 - Wavelength/Color Temp/Coordinates | 465 nm |
| Lumens Color 2 | 0.9 |
| Lumens Color 3 | 0.15 |
| Product Size (mm) | 22 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 527 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | M22 x 1.5 |
| Max Input Response Time (ms) | 250 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Color Option 4 | Yellow |
| Color 4 - Wavelength/Color Temp/Coordinates | 571 nm |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.345, 0.161 |
| Color Option 5 | White |
| Color 5 - Wavelength/Color Temp/Coordinates | 5700K |
| Lumens Color 5 | 2.5 |
| Color 7 - Wavelength/Color Temp/Coordinates | 492 nm |
| Lumens Color 4 | 2.5 |
| Lumens Color 6 | 1.2 |
| Lumens Color 7 | 2 |
| Wire Selectable Function | Flashing |
| Color Option 6 | Magenta |
| Feature: I/O Block Compatible | Yes |
| Connection | Cable |
| Cord/Cable Length | 2 m |
| Max Input Response Time | 250 ms |
