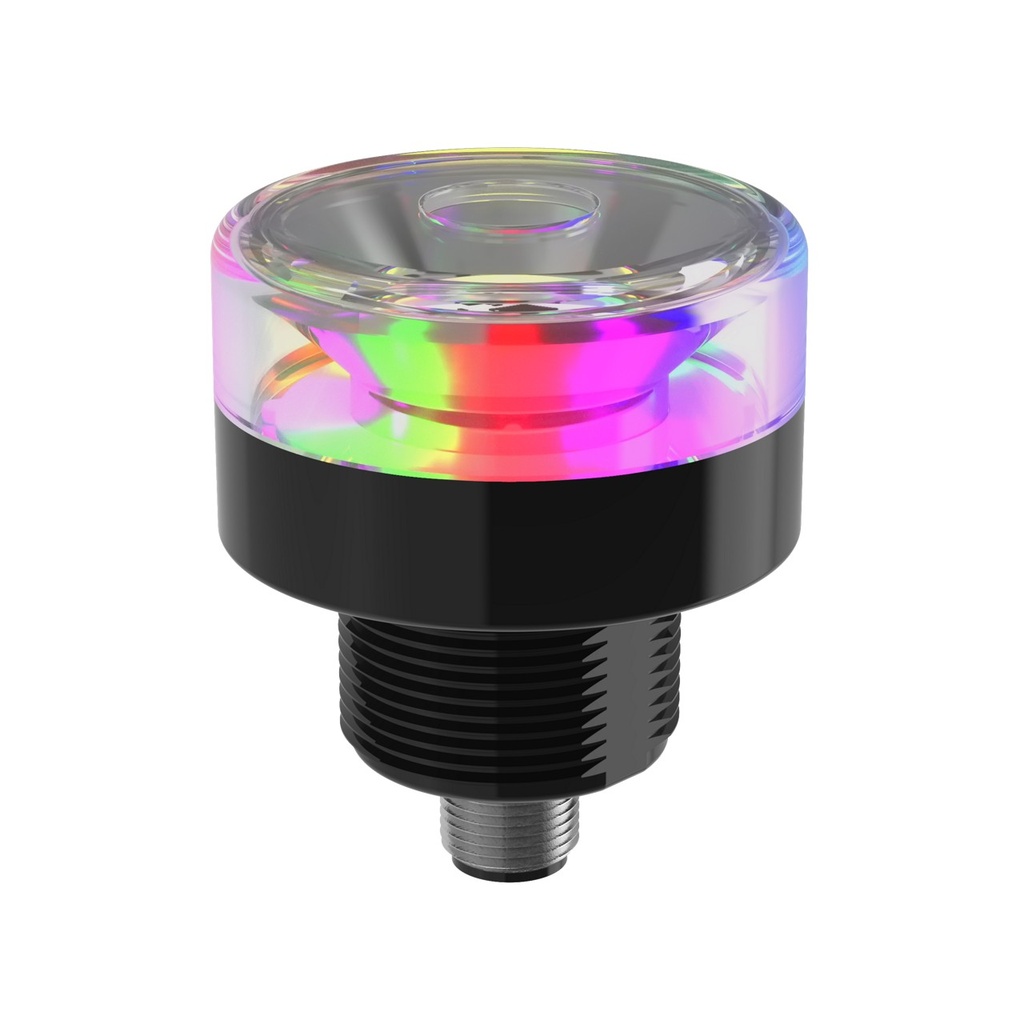

K50 Pro Series: Beacon Light (K50PBLRGB7Q)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 808464
Weight: 0.32 lb(s)
Features:
- K50 Pro Series: Beacon Light; 7-color RGB Indicator; Voltage: 10
- 30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; Colors: Multicolor; Euro 5-pin Integral Connector
K50 Pro Series: Beacon Light (K50PBLRGB7Q)
Brand_Name:Banner
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:220 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP67/69
Housing Style:Base Mount - Flat Window
Max Relative Humidity:90% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:50.0 x 59.8 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Blue
Supply Voltage:10-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:Yes
Lumens Color 1:6.8
Animation Option 3:Programmable
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 7:Cyan
Color Option 1:Red
Animation Option 2:Programmable
Color 1 - Wavelength/Color Temp/Coordinates:625 nm
Housing Color:Black
Color Input Control:Multiple (One or more wires/color, enables more colors than input wires)
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Programmable
Quick Disconnect Type:M12
Number of Colors / Segments:14
Color 3 - Wavelength/Color Temp/Coordinates:470 nm
Lumens Color 2:15.3
Lumens Color 3:3.3
Product Size (mm):50 mm
Color 2 - Wavelength/Color Temp/Coordinates:530 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):250 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Color Option 4:Yellow
Color 4 - Wavelength/Color Temp/Coordinates:0.469, 0.466
Color 6 - Wavelength/Color Temp/Coordinates:0.399, 0.189
Color Option 5:White
Color 5 - Wavelength/Color Temp/Coordinates:5950K
Lumens Color 5:20.9
Color 7 - Wavelength/Color Temp/Coordinates:0.159, 0.337
Lumens Color 4:17.2
Lumens Color 6:8.6
Lumens Color 7:17
Wire Selectable Function:Programmable
Color Option 6:Magenta
Feature: I/O Block Compatible:Yes
Dimming Option:Programmable
Indication Intensity:High Brightness & Daylight Visible
Animation Option 5:Programmable
Animation Option 4:Programmable
Animation Option 6:Programmable
Animation Option 7:Programmable
Connection Type:Integral QD, Integral QD, Integral QD
Country of Origin:US
NEMA / UL:UL 4X/13
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 220 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP67/69 |
| Housing Style | Base Mount - Flat Window |
| Max Relative Humidity | 90% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 50.0 x 59.8 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Blue |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 6.8 |
| Animation Option 3 | Programmable |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 7 | Cyan |
| Color Option 1 | Red |
| Animation Option 2 | Programmable |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Housing Color | Black |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Programmable |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 14 |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 2 | 15.3 |
| Lumens Color 3 | 3.3 |
| Product Size (mm) | 50 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 530 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 250 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Color Option 4 | Yellow |
| Color 4 - Wavelength/Color Temp/Coordinates | 0.469, 0.466 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.399, 0.189 |
| Color Option 5 | White |
| Color 5 - Wavelength/Color Temp/Coordinates | 5950K |
| Lumens Color 5 | 20.9 |
| Color 7 - Wavelength/Color Temp/Coordinates | 0.159, 0.337 |
| Lumens Color 4 | 17.2 |
| Lumens Color 6 | 8.6 |
| Lumens Color 7 | 17 |
| Wire Selectable Function | Programmable |
| Color Option 6 | Magenta |
| Feature: I/O Block Compatible | Yes |
| Dimming Option | Programmable |
| Indication Intensity | High Brightness & Daylight Visible |
| Animation Option 5 | Programmable |
| Animation Option 4 | Programmable |
| Animation Option 6 | Programmable |
| Animation Option 7 | Programmable |
| Connection Type | Integral QD, Integral QD, Integral QD |
| Country of Origin | US |
| NEMA / UL | UL 4X/13 |
