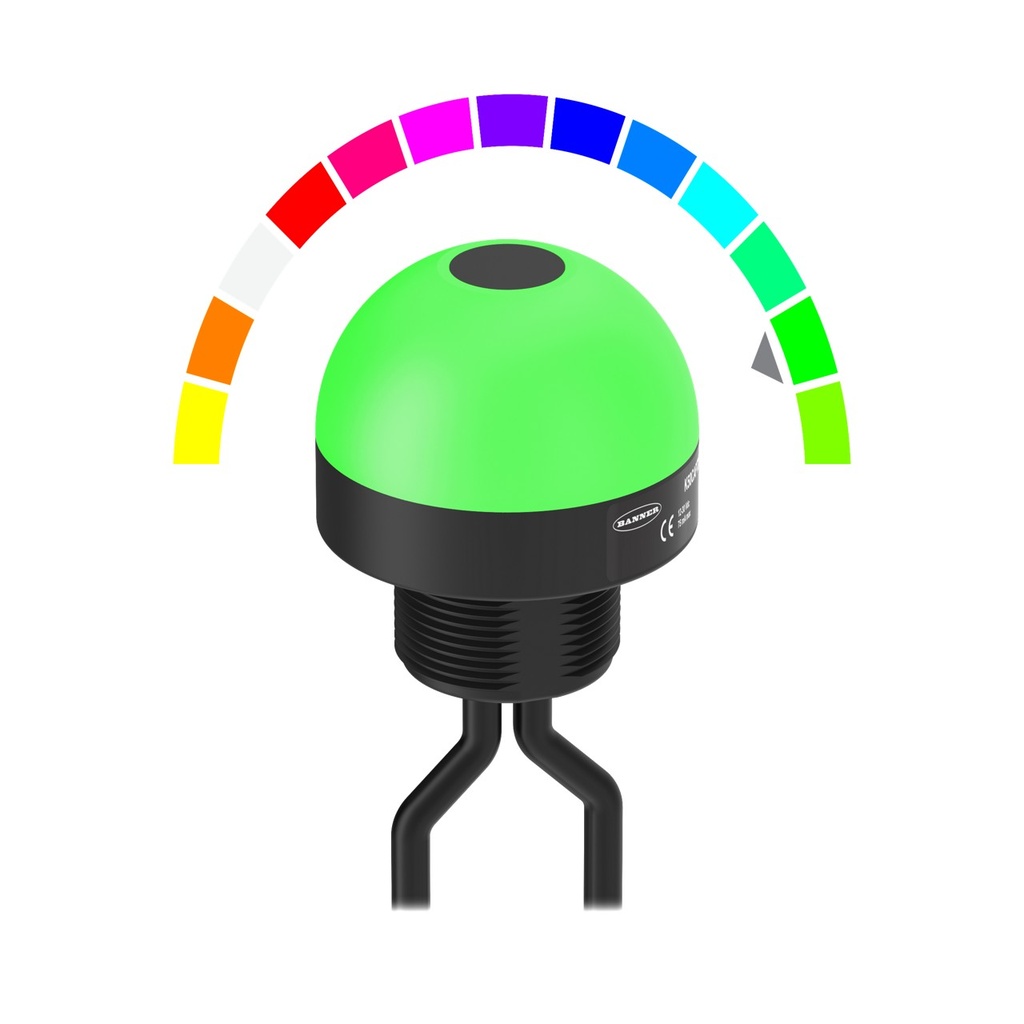

K50 Pro Optical With Pick-Iq Series: Rgb Fixed-Field Sensor (K50PFF200SQ2PS)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 808246
Weight: 0.37 lb(s)
Features:
- K50 Pro Optical with PICK-IQ Series: RGB Fixed-Field Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Range: 200 mm; Colors: Multicolor; Euro 5-Pin 240 mm (9.45 in) PVC Shielded Pigtails
K50 Pro Optical With Pick-Iq Series: Rgb Fixed-Field Sensor (K50PFF200SQ2PS)
Valve: Actuation:Yes
Brand_Name:Banner
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:132 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP67/69
Housing Style:Base Mount - Dome Window
Max Sensing Distance:200 mm
Sensing Mode (General):Fixed Field
Max Relative Humidity:90% @ 50 °C (NC)
Number of Beams:1
Housing Material_:Polycarbonate
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:Yes
Physical Dimensions:50.0 x 67.3 mm
Feature: Wireless:No
Supply Voltage:10-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:RGB
Housing Color:Black
Color Input Control:Communication Protocol
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Modbus Controlled
Quick Disconnect Type:M12
Number of Colors / Segments:Programmable
Number of Input Pins/Conductors:5
Input Type:Communication Protocol
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Dimming Option:Programmable
Operation:Programmable
Button Operation:Programmable
Activation Function:Optical
Max Output Response Time:300 ms
Pick-to-Light Function:Programmable
Connection Type:Dual Pigtail QD, Dual Pigtail QD, Dual Pigtail QD
Country of Origin:US
Cord/Cable Length:2 m
Feature: PICK-IQ (Modbus RTU):Yes
Feature: Actuation:Yes
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Yes |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 132 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP67/69 |
| Housing Style | Base Mount - Dome Window |
| Max Sensing Distance | 200 mm |
| Sensing Mode (General) | Fixed Field |
| Max Relative Humidity | 90% @ 50 °C (NC) |
| Number of Beams | 1 |
| Housing Material_ | Polycarbonate |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | Yes |
| Physical Dimensions | 50.0 x 67.3 mm |
| Feature: Wireless | No |
| Supply Voltage | 10-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | RGB |
| Housing Color | Black |
| Color Input Control | Communication Protocol |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Modbus Controlled |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | Programmable |
| Number of Input Pins/Conductors | 5 |
| Input Type | Communication Protocol |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Dimming Option | Programmable |
| Operation | Programmable |
| Button Operation | Programmable |
| Activation Function | Optical |
| Max Output Response Time | 300 ms |
| Pick-to-Light Function | Programmable |
| Connection Type | Dual Pigtail QD, Dual Pigtail QD, Dual Pigtail QD |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
| Feature: PICK-IQ (Modbus RTU) | Yes |
| Feature: Actuation | Yes |
