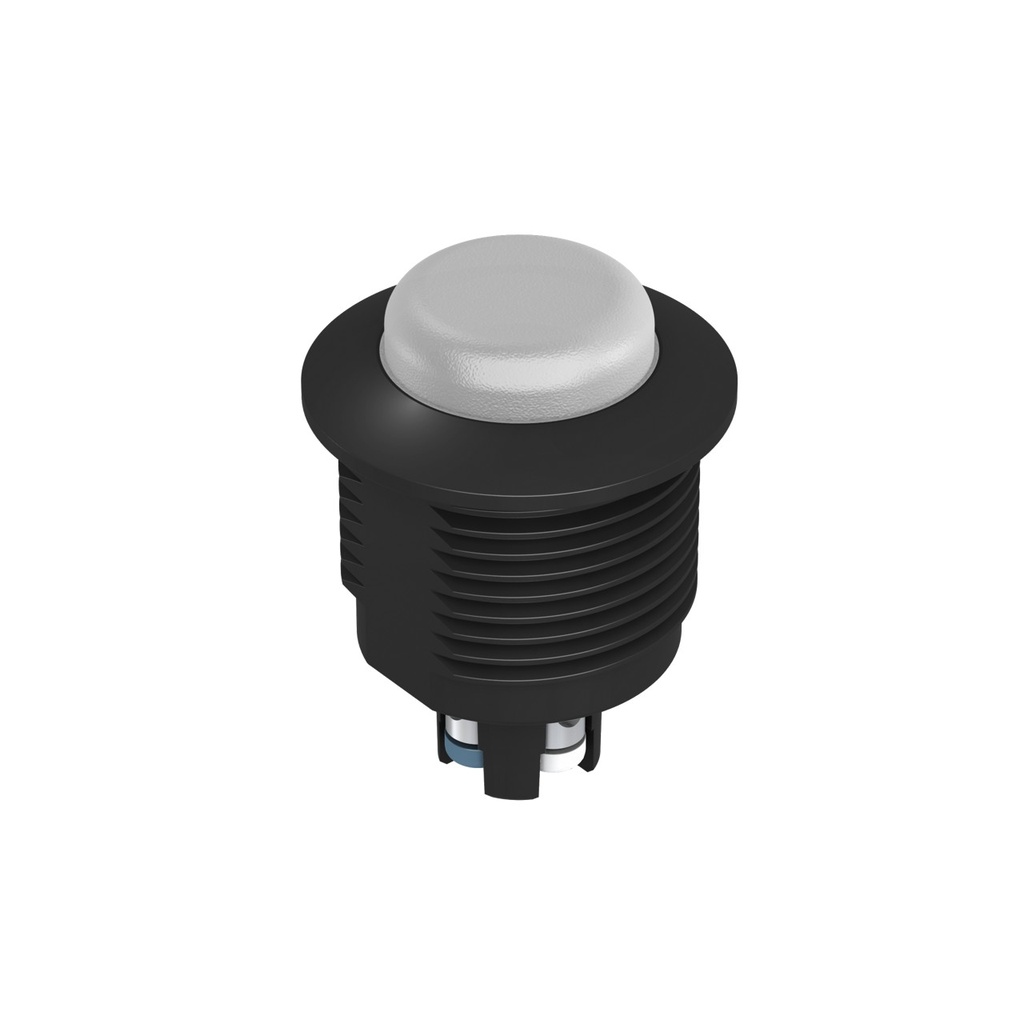

S22 Ez Light - 22 Mm - Ip67 (S22LGYWPT)
Power:DC
Feature: Display Lighting:No
Max Current Color:25 mA
Power Source:VDC
Ingress Protection:IP67/69
Housing Style:Barrel Mount - Flat Window
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:26.0 x 34.2 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:White
Supply Voltage:10-30 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:No
Lumens Color 1:1.9
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Color 1 - Wavelength/Color Temp/Coordinates:527 nm
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:6000K
Lumens Color 2:2.5
Lumens Color 3:4
Product Size (mm):22 mm
Color 2 - Wavelength/Color Temp/Coordinates:571 nm
Number of Input Pins/Conductors:4
Input Type:PNP
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M22 x 1.5
Max Input Response Time (ms):1 ms
Feature: Chemical Resistant:No
Connection:Terminal
Country of Origin:CN
NEMA / UL:NEMA/UL 4X/13
Max Input Response Time:1 ms
Specifications
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 25 mA |
| Power Source | VDC |
| Ingress Protection | IP67/69 |
| Housing Style | Barrel Mount - Flat Window |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 26.0 x 34.2 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | White |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 1.9 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color 1 - Wavelength/Color Temp/Coordinates | 527 nm |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 6000K |
| Lumens Color 2 | 2.5 |
| Lumens Color 3 | 4 |
| Product Size (mm) | 22 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 571 nm |
| Number of Input Pins/Conductors | 4 |
| Input Type | PNP |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M22 x 1.5 |
| Max Input Response Time (ms) | 1 ms |
| Feature: Chemical Resistant | No |
| Connection | Terminal |
| Country of Origin | CN |
| NEMA / UL | NEMA/UL 4X/13 |
| Max Input Response Time | 1 ms |
