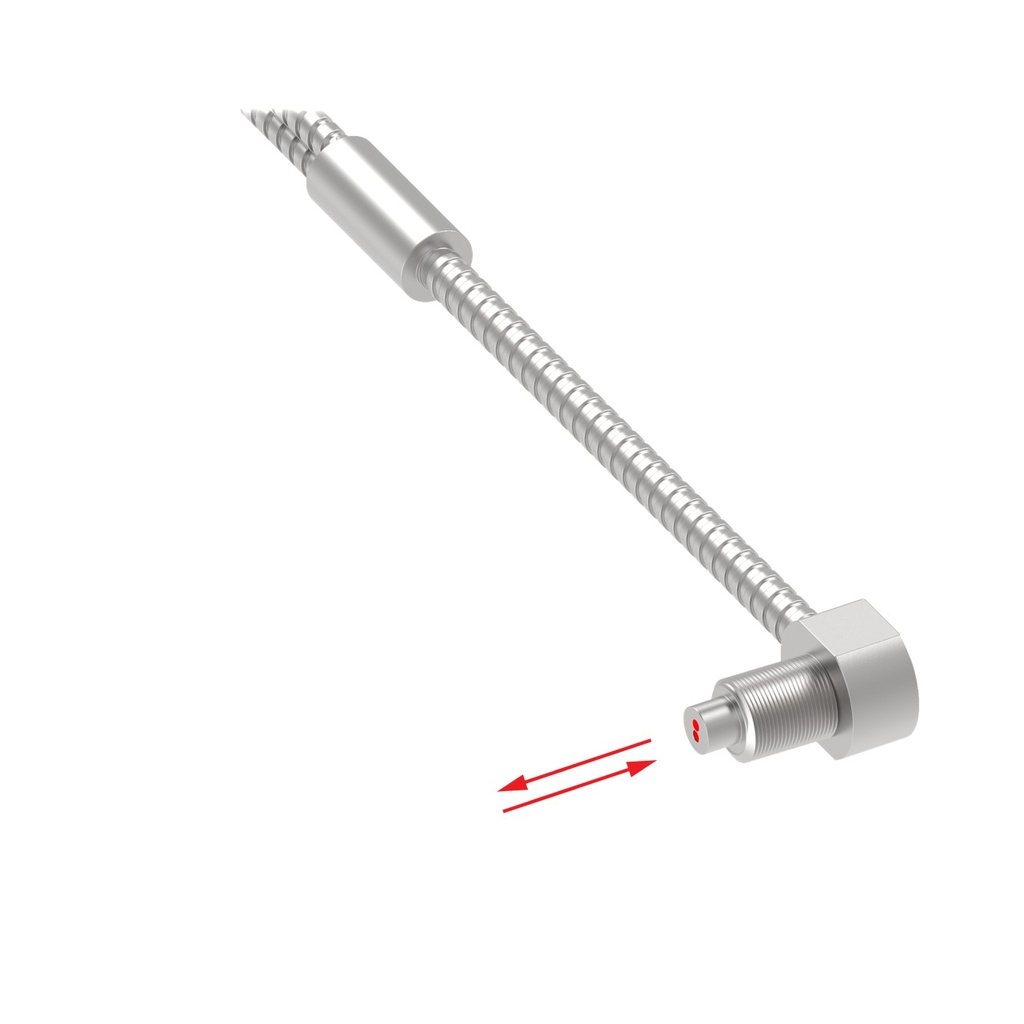

Plastic Fiber Diffuse Reflective (PBT26TSL5M3-VL)
Max Operating Temperature:70 °C
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:4 fbm
Measured Max Distance:222.885 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:M3
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:0.50 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M3
Fiber Length:2 m
Fiber Optic Type:Plastic
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 1m to <= 3m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:152 mm
Max Distance: DF-G3:1178 mm
Max Distance: DF-G2:246 mm
Minimum Bend Radius:25 mm
Specifications
| Max Operating Temperature | 70 °C |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 4 fbm |
| Measured Max Distance | 222.885 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | M3 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 0.50 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M3 |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 1m to <= 3m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 152 mm |
| Max Distance: DF-G3 | 1178 mm |
| Max Distance: DF-G2 | 246 mm |
| Minimum Bend Radius | 25 mm |
