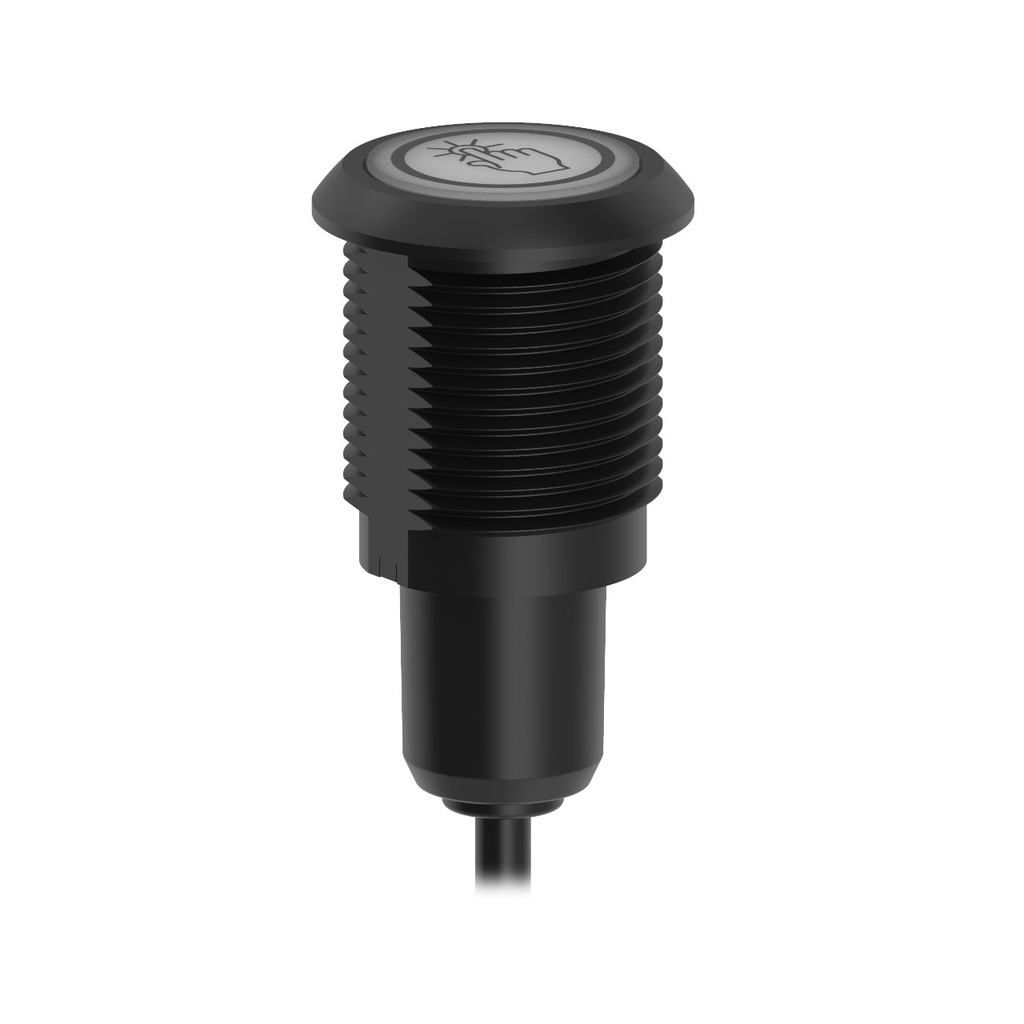

S22 Pro Touch Series: 2-Color Rgb Touch Sensor (S22ALTSWGH)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807828
Weight: 0.18 lb(s)
Features:
- S22 Pro Touch Series: 2-color RGB Touch Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar, NO, Latching; Colors: White Green; 2 m (6ft) Cable
S22 Pro Touch Series: 2-Color Rgb Touch Sensor (S22ALTSWGH)
Brand_Name:Banner
Power:DC
Feature: Display Lighting:No
Max Current Color:80 mA
Power Source:VDC
Ingress Protection:IP66/67/69
Housing Style:Barrel Mount - Flat Window, Barrel Mount - Flat Window
Light Color:White
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.3 x 47.8 mm
Feature: Wireless:No
Supply Voltage:10-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:No
Lumens Color 1:0.18
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:White
Color 1 - Wavelength/Color Temp/Coordinates:5700K
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Number of Colors / Segments:2
Lumens Color 2:0.18
Color 2 - Wavelength/Color Temp/Coordinates:527 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:M22 x 1.5
Max Input Response Time (ms):20 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Feature: I/O Block Compatible:Yes
Button Operation:Latching
Activation Function:Capacitive Touch
Max Output Response Time:300 ms
Pick-to-Light Function:H
Acknowledge (Sense) Light:Green
Connection:Cable
Country of Origin:US
Cord/Cable Length:2 m
Max Input Response Time:20 ms
Feature: Actuation:Yes
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 80 mA |
| Power Source | VDC |
| Ingress Protection | IP66/67/69 |
| Housing Style | Barrel Mount - Flat Window, Barrel Mount - Flat Window |
| Light Color | White |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 27.3 x 47.8 mm |
| Feature: Wireless | No |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 0.18 |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | White |
| Color 1 - Wavelength/Color Temp/Coordinates | 5700K |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Number of Colors / Segments | 2 |
| Lumens Color 2 | 0.18 |
| Color 2 - Wavelength/Color Temp/Coordinates | 527 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | M22 x 1.5 |
| Max Input Response Time (ms) | 20 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Feature: I/O Block Compatible | Yes |
| Button Operation | Latching |
| Activation Function | Capacitive Touch |
| Max Output Response Time | 300 ms |
| Pick-to-Light Function | H |
| Acknowledge (Sense) Light | Green |
| Connection | Cable |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
| Max Input Response Time | 20 ms |
| Feature: Actuation | Yes |
