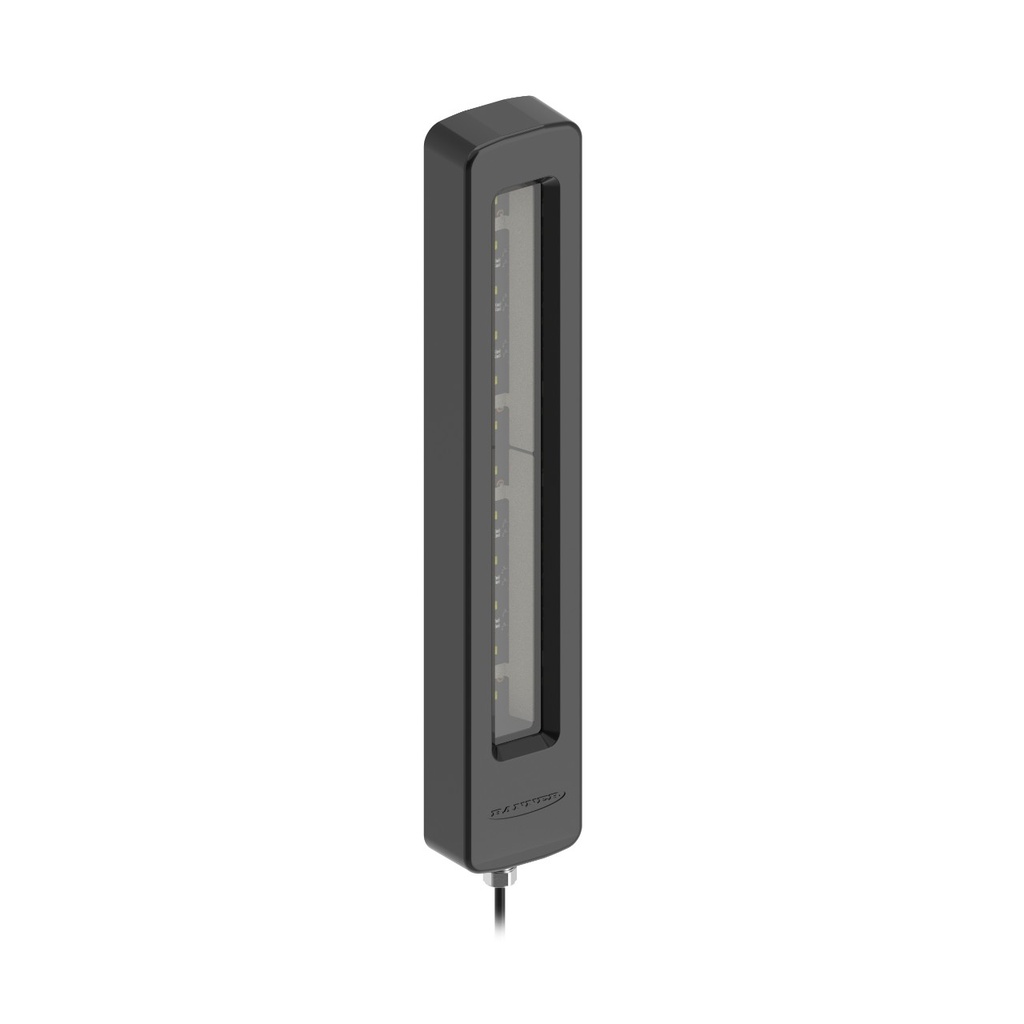

Wlh60 High Temperature Light (WLH60XW640GB W/30)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807743
Weight: 4.09 lb(s)
Features:
- WLH60 High Temperature Light; Length: 640 mm; Black E-Coated Aluminum; Voltage: 24 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 9 m (30 ft) Cable; Side exit
Wlh60 High Temperature Light (WLH60XW640GB W/30)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:2100 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:100 °C
Power Source:VDC
Ingress Protection:IP67/68/68G/69K
Housing Style:Linear Strip
Housing Material_:Black E-coated Aluminum Housing
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:638.9 x 60.9 x 31.3 mm
Feature: Wireless:No
Supply Voltage:21-28 VDC
Feature: Quick Disconnect:No
Lumens Color 1:2300
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Number of Colors / Segments:1
Product Size (mm):60 mm
Number of Input Pins/Conductors:3
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Dimming Option:High-Low-Off
Illuminated Length (LxWxH):517.7 mm
Illumination Switch Function:O=OFF; I=ON
Feature: Illumination:Yes
Connection Type:Cable
Country of Origin:US
Cord/Cable Length:9 m
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 2100 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 100 °C |
| Power Source | VDC |
| Ingress Protection | IP67/68/68G/69K |
| Housing Style | Linear Strip |
| Housing Material_ | Black E-coated Aluminum Housing |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 638.9 x 60.9 x 31.3 mm |
| Feature: Wireless | No |
| Supply Voltage | 21-28 VDC |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 2300 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 60 mm |
| Number of Input Pins/Conductors | 3 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH) | 517.7 mm |
| Illumination Switch Function | O=OFF; I=ON |
| Feature: Illumination | Yes |
| Connection Type | Cable |
| Country of Origin | US |
| Cord/Cable Length | 9 m |
