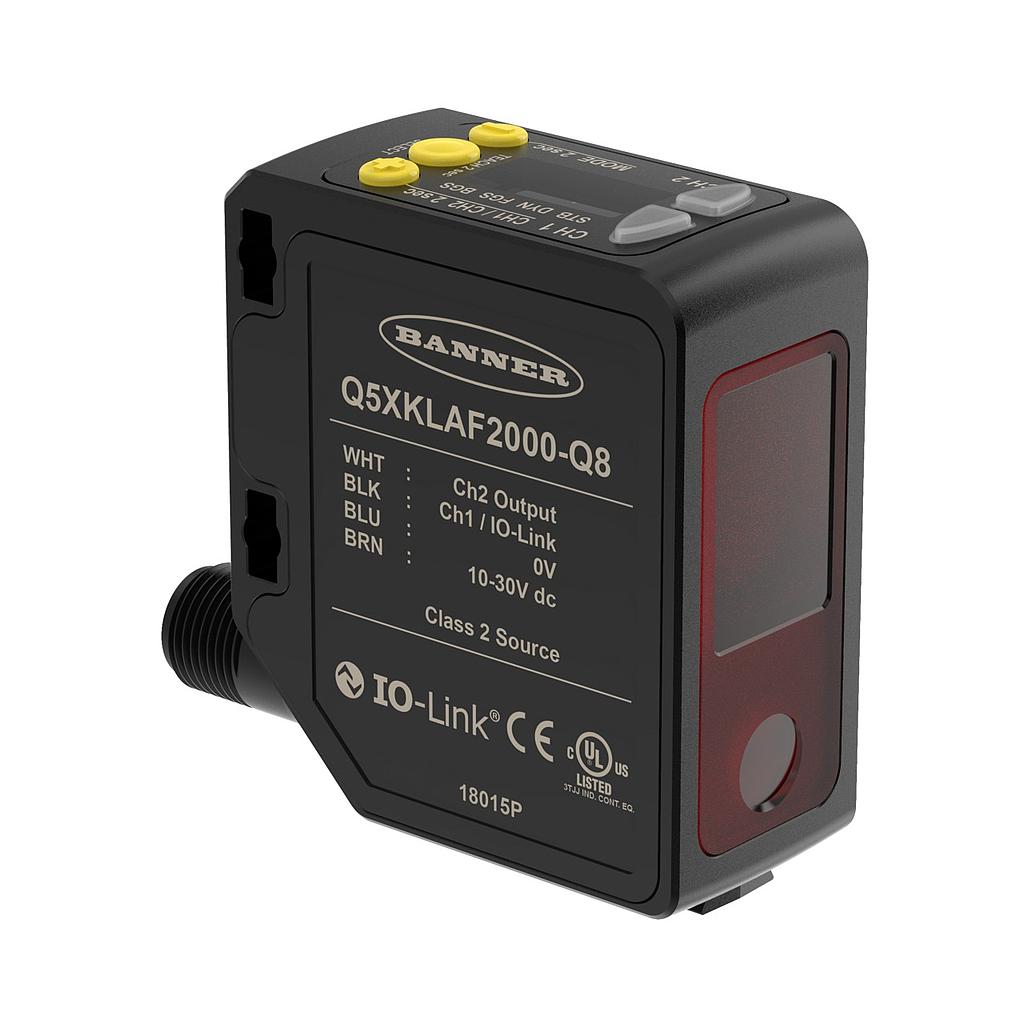

Q5X Series: Laser Adjustable Field (Q5XKLAF5000-Q8)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807731
Weight: 0.29 lb(s)
Q5X Series: Laser Adjustable Field
Features:
- Q5X Series: Laser Adjustable Field
- Range: 50 to 5000 mm
- Input 10-30 V dc
- Output: 1 PNP/NPN with IO-Link
- 1 PNP/NPN Multi-Function I/O
- Connection: Euro M12 4-pin Rotatable Connector
Q5X Series: Laser Adjustable Field (Q5XKLAF5000-Q8)
Q5X Series: Laser Adjustable Field
Measurement Maximum:0
Min Operating Temperature:-10 °C
Max Operating Temperature:50 °C
Power/Current Consumption (exclusive of load):< 1 W
Power Supply:10-30 VDC
Temperature Effect (mm/°C):< +/- 0.5 mm/°C < 3000 mm,< +/- 0.75 mm/°C at < 5000 mm
Delay at Power-Up:2500 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Visible Red Laser
Housing Style:Rectangular
Max Sensing Distance:5000 mm
Sensing Mode (Detailed):Background/Foreground Suppression
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Laser Classification:Class 2
Feature: IO Link:Yes
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Storage Temp:-25 to 70 °C
Number of Pins:4
Adjustments:Push Button; Remote Teach
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:2 ms
Vibration:MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock:MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage PNP Outputs:< 2.5 V @ 50 mA
Analog Resolution/Discrete Repeatability:95mm to 3000mm: +/-1.0mm; 3m to 5m: +/- 1.5mm
Max Discrete (Switched) Output (mA):50
Min Sensing Distance:50 mm
Feature: Clear Object Detection:Yes
Min Window Size:1 mm
Discrete (Switched) Outputs:2 NPN/PNP Configurable
Max Measurement Range:1-20 m
Output Protection:Protected against continuous overload and short circuit
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<2.5 V @ 50 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Spot Size (@ Reference Distance):7.0 mm x 11.0 mm @ 5000 mm
Connection Type:Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Feature: Pump-In/Pump-Out:Yes
Feature: Laser Control:Yes
Feature: PC Configurable:No
Feature: PFM Output:Yes
Indicator Type:LED
Max Ambient Light:≤ 5000 lux @ 1000 mm / ≤ 2000 lux @ 2000 mm
Warm-Up Time:10 min
Discrete Output Hysteresis:Auto Adjust
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Power/Current Consumption (exclusive of load) | < 1 W |
| Power Supply | 10-30 VDC |
| Temperature Effect (mm/°C) | < +/- 0.5 mm/°C < 3000 mm,< +/- 0.75 mm/°C at < 5000 mm |
| Delay at Power-Up | 2500 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Visible Red Laser |
| Housing Style | Rectangular |
| Max Sensing Distance | 5000 mm |
| Sensing Mode (Detailed) | Background/Foreground Suppression |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Laser Classification | Class 2 |
| Feature: IO Link | Yes |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Storage Temp | -25 to 70 °C |
| Number of Pins | 4 |
| Adjustments | Push Button; Remote Teach |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | 2 ms |
| Vibration | MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Mechanical Shock | MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating |
| Output Saturation Voltage PNP Outputs | < 2.5 V @ 50 mA |
| Analog Resolution/Discrete Repeatability | 95mm to 3000mm: +/-1.0mm; 3m to 5m: +/- 1.5mm |
| Max Discrete (Switched) Output (mA) | 50 |
| Min Sensing Distance | 50 mm |
| Feature: Clear Object Detection | Yes |
| Min Window Size | 1 mm |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Max Measurement Range | 1-20 m |
| Output Protection | Protected against continuous overload and short circuit |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <2.5 V @ 50 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Spot Size (@ Reference Distance) | 7.0 mm x 11.0 mm @ 5000 mm |
| Connection Type | Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Feature: Pump-In/Pump-Out | Yes |
| Feature: Laser Control | Yes |
| Feature: PC Configurable | No |
| Feature: PFM Output | Yes |
| Indicator Type | LED |
| Max Ambient Light | ≤ 5000 lux @ 1000 mm / ≤ 2000 lux @ 2000 mm |
| Warm-Up Time | 10 min |
| Discrete Output Hysteresis | Auto Adjust |
