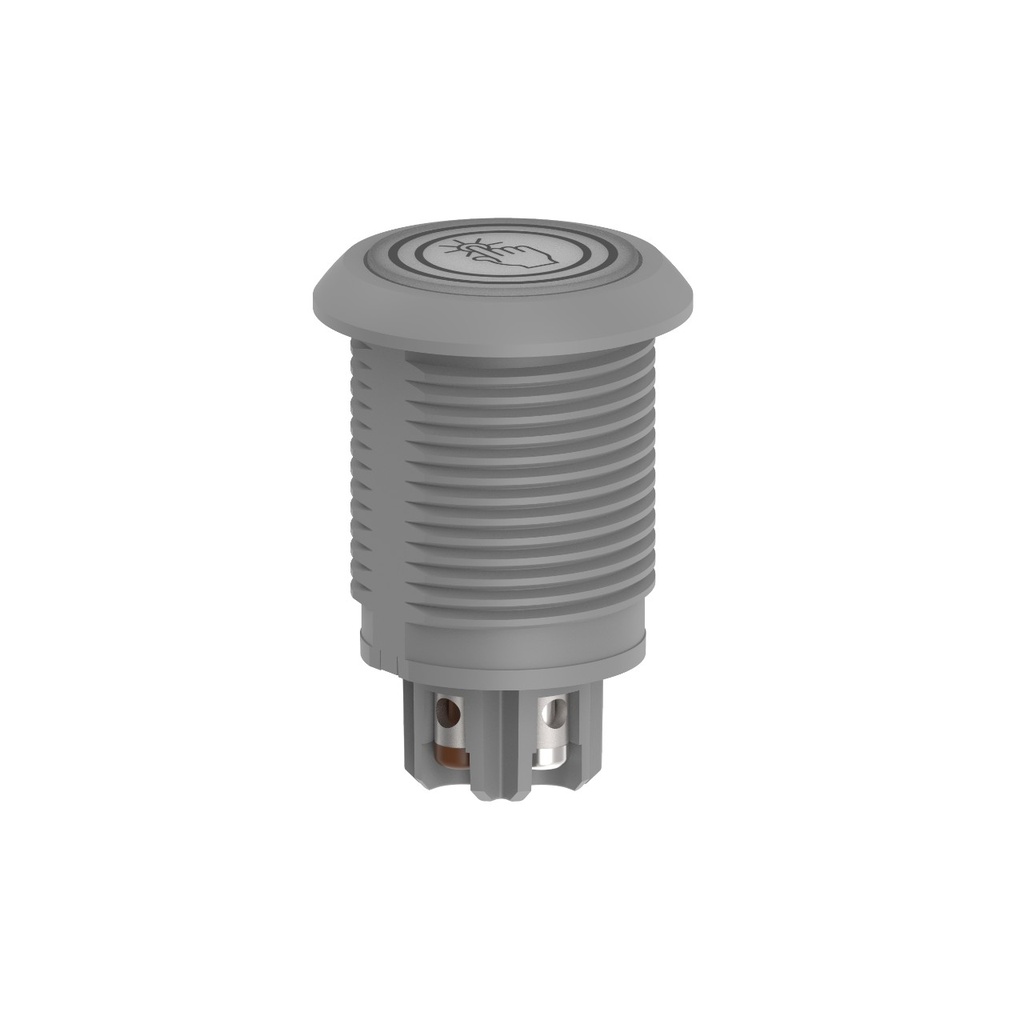

S22 Touch Series: 3-Color Touch Sensor-Fda (S22AMTFGRY3T)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807174
Weight: 0.01 lb(s)
Features:
- S22 Touch Series: 3-color Touch Sensor-FDA; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input/Output: Bimodal, NO, Momentary; Colors: Green Red Yellow;; 5-screw Terminal Wiring
S22 Touch Series: 3-Color Touch Sensor-Fda (S22AMTFGRY3T)
Power:DC
Feature: Display Lighting:No
Max Current Color:80 mA
Power Source:VDC
Ingress Protection:IP66/67/69
Housing Style:Barrel Mount - Flat Window
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.3 x 39.1 mm
Feature: Wireless:No
Color Option 3:Yellow
Supply Voltage:10-30 VDC
Color Option 2:Red
Feature: Quick Disconnect:No
Lumens Color 1:0.18
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:Green
Color 1 - Wavelength/Color Temp/Coordinates:527 nm
Housing Color:FDA Gray
Color Input Control:Multiple (One or more wires/color, enables more colors than input wires)
Multi-Color Device:Single Color On
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:572 nm
Lumens Color 2:0.08
Lumens Color 3:0.25
Color 2 - Wavelength/Color Temp/Coordinates:625 nm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):Yes
Mounting Thread:M22 x 1.5
Max Input Response Time (ms):20 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Feature: I/O Block Compatible:Yes
Button Operation:Momentary
Activation Function:Capacitive Touch
Max Output Response Time:300 ms
Pick-to-Light Function:F2
Connection:Terminal
Country of Origin:US
Max Input Response Time:20 ms
Feature: Actuation:Yes
Specifications
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 80 mA |
| Power Source | VDC |
| Ingress Protection | IP66/67/69 |
| Housing Style | Barrel Mount - Flat Window |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 27.3 x 39.1 mm |
| Feature: Wireless | No |
| Color Option 3 | Yellow |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Red |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 0.18 |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color 1 - Wavelength/Color Temp/Coordinates | 527 nm |
| Housing Color | FDA Gray |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Multi-Color Device | Single Color On |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 572 nm |
| Lumens Color 2 | 0.08 |
| Lumens Color 3 | 0.25 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | Yes |
| Mounting Thread | M22 x 1.5 |
| Max Input Response Time (ms) | 20 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Feature: I/O Block Compatible | Yes |
| Button Operation | Momentary |
| Activation Function | Capacitive Touch |
| Max Output Response Time | 300 ms |
| Pick-to-Light Function | F2 |
| Connection | Terminal |
| Country of Origin | US |
| Max Input Response Time | 20 ms |
| Feature: Actuation | Yes |
